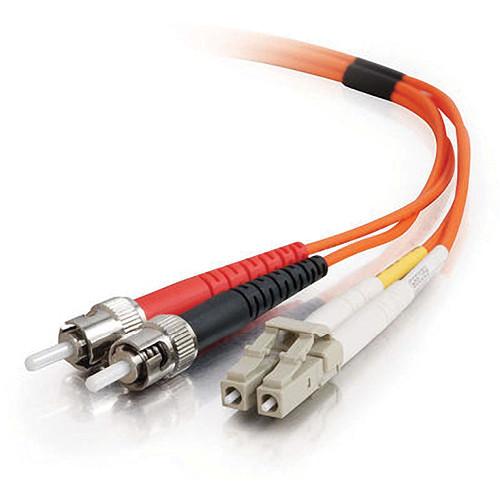

User Manual for C2G 3m LC ST Duplex 62.5 125 Multimode Fiber Patch Cable Click to enlarge the picture
Contents of the user manual for the C2G 3m LC ST Duplex 62.5
- Product category: Fiber Channel Cables & Adapters C2G
- Brand: C2G
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for C2G Fiber Channel Cables & Adapters
|
User manual for the C2G 3m LC ST Duplex 62.5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any C2G product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official C2G user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a C2G product will considerably shorten its lifespan!
|
Product description The 3M LC/ST Duplex 62.5/125 Multimode Fiber Patch Cable (Orange) from CablesToGo is a high-quality fiber optic patch cable specifically designed for fast ethernet, fiber channel, ATM and gigabit ethernet applications.
The small LC connectors satisfy the need for higher port density both in the telecom room and the work area. It offers twice the port density of traditional SC and ST fiber connectors.
The LC connector with its RJ-style latch clip design is easy to engage & disengage and gives each connection greater durability in resisting pulls, strains, snags and impacts during cabling installs and maintenance. - Left connector type LC-multimode male
Right connector type ST-multimode male - Applications
- Fast ethernet
ATM and gigabit ethernet for subsystems Telecommunications closets Equipment rooms and work areas UPC: 757120331650 In the Box C2G 3m LC/ST Duplex 62.5/125 Multimode Fiber Patch Cable (Orange) Lifetime Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G 3m LC ST Duplex 62.5 125 Multimode Fiber Patch Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 33165 Specs Connectors | Left Connector Type: LC-Multimode Male Right Connector Type: ST-Multimode Male | Optical Multimode | 1 (OM1) Fiber Supporting 200/500 MHz.km OFL at 850/1300 nm | Maximum Connector Loss | 0.50 dB | Typical Connector Loss | 0.30 dB | Typical Return Loss | 25 dB | Buffer Material | PVC | Buffer OD | 900 µm | Jacket Material | PVC (OFNR riser-rated) | Jacket OD | 1.8 mm | Installation Tensile Load | 100 N (445 lb) | Long-Term Tensile Load | 50 N (222 lb) | Maximum Tensile Load | 100 N/cm | Crush Resistance | 750 N/cm | Impact Resistance | 1,000 cycles | Flex Resistance | 5,000 cycles | Attenuation at 1300 nm | 1.0 dB/km | Attenuation at 850 nm | 3.5 dB/km | Operating Temperature | -20° C to +70° C Note: Attenuation testing performed in accordance with EIA/TIA-455-171A | Color | Orange | LC Connector Dimensions(H x W x D) | 0.42 X 0.49 X 1.96" (10.75 x 12.5 x 50 mm) | ST Connector Dimensions(H x W x D) | 0.38 x 0.77 x 2.32" (9.8 x 19.6 x 59 mm) | Weight | 0.08 lb (36.2 g) | | Package Weight | 0.1 lb | Box Dimensions (LxWxH) | 12.8 x 7.8 x 0.7" |
