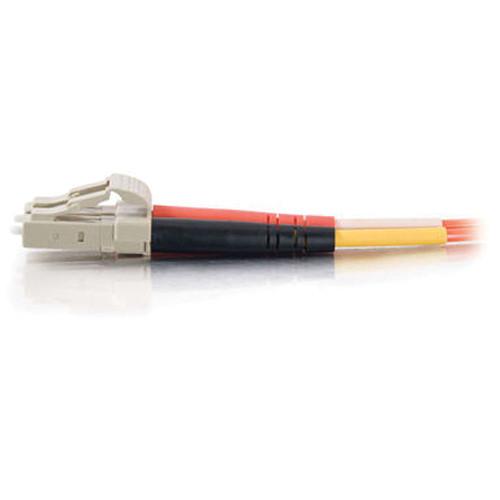

Product description The 49.21' (15 m) LC/LC Duplex 50/125 Multimode Fiber Patch Cable (Orange) from CablestoGo has LC to LC termination. This high-quality fiber optic patch cable is specifically designed for fast Ethernet, fiber channel, Infiniband, ATM and gigabit Ethernet applications. The small LC connectors satisfy the need for higher port density both in the telecom room and the work area and offer twice the port density of traditional SC and ST fiber connectors.

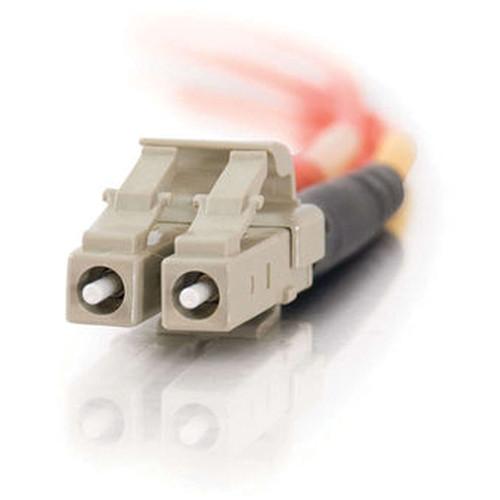

The LC connector with its RJ-style latch clip design is easy to engage and disengage and provides each connection with greater durability in resisting pulls, strains, snags and impacts during cabling installs and maintenance. The patented injection molding process provides each connection with greater durability in resisting pulls, strains and impacts from cabling installs.
Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 50/125 multimode fiber which is immune to electrical interference. - This cable is manufactured with optical multimode 2 (OM 2) fiber supporting 200/500 MHz km OFL at 850/1300 nm.
- Applications include fast Ethernet, Fibre Channel, Infiniband, ATM and gigabit Ethernet for subsystems including telecommunications closets, equipment rooms and work areas.
UPC: 757120330387 In the Box C2G 49.21' (15 m) LC/LC Duplex 50/125 Multimode Fiber Patch Cable (Orange) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G 49.21' LC LC Duplex 50 125 Multimode Fiber Patch Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 33038 Specs | Cable Type | Fiber patch cable | | Connector 1 | LC male | | Connector 2 | LC male | | Maximum Connector Loss | 0.50 dB | | Typical Connector Loss | 0.30 dB | | Typical Return Loss | -25 dB | | Buffer Material | PVC | | Buffer OD | 900 µm | | Jacket Material | PVC (OFNR riser-rated) | | Jacket OD | 0.07" (1.8 mm) | | Installation Tensile Load | 445 lb (201.84 kg) - 100 N | | Long-Term Tensile Load | 222 lb (100.69 kg) - 50 N | | Maximum Tensile Load | 100 N/cm | | Minimum Bend Radius | Installation (loaded): 1.97" (5 cm)Long-term (unloaded): 1.2" (3 cm) | | Crush Resistance | 750 N/cm | | Impact Resistance | 1,000 Cycles | | Flex Resistance | 5,000 Cycles | | Attenuation at 1300 nm | 1.0 dB/km | | Attenuation at 850 nm | 3.5 dB/km | | Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) Attenuation testing performed in accordance with EIA/TIA-455-171A. | | Color | Orange | | Dimension (DxWxH) | LC Connector: 1.96 x 0.94 x 0.42" (50 x 12.5 x 10.75 mm) (with installed duplex clip) | | Length | 49.21' (15 m) | | Weight | 3.68 oz (104.32 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 8.347 x 7.0 x 1.024" |
