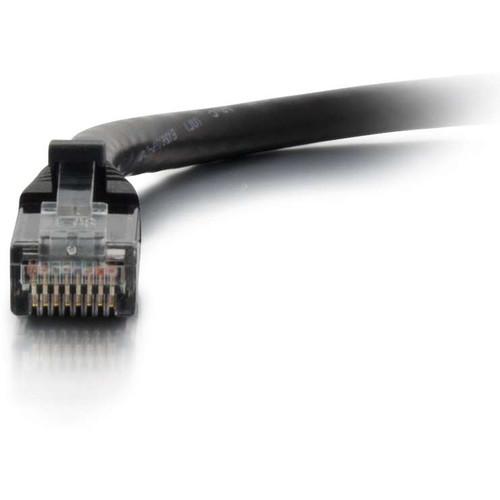

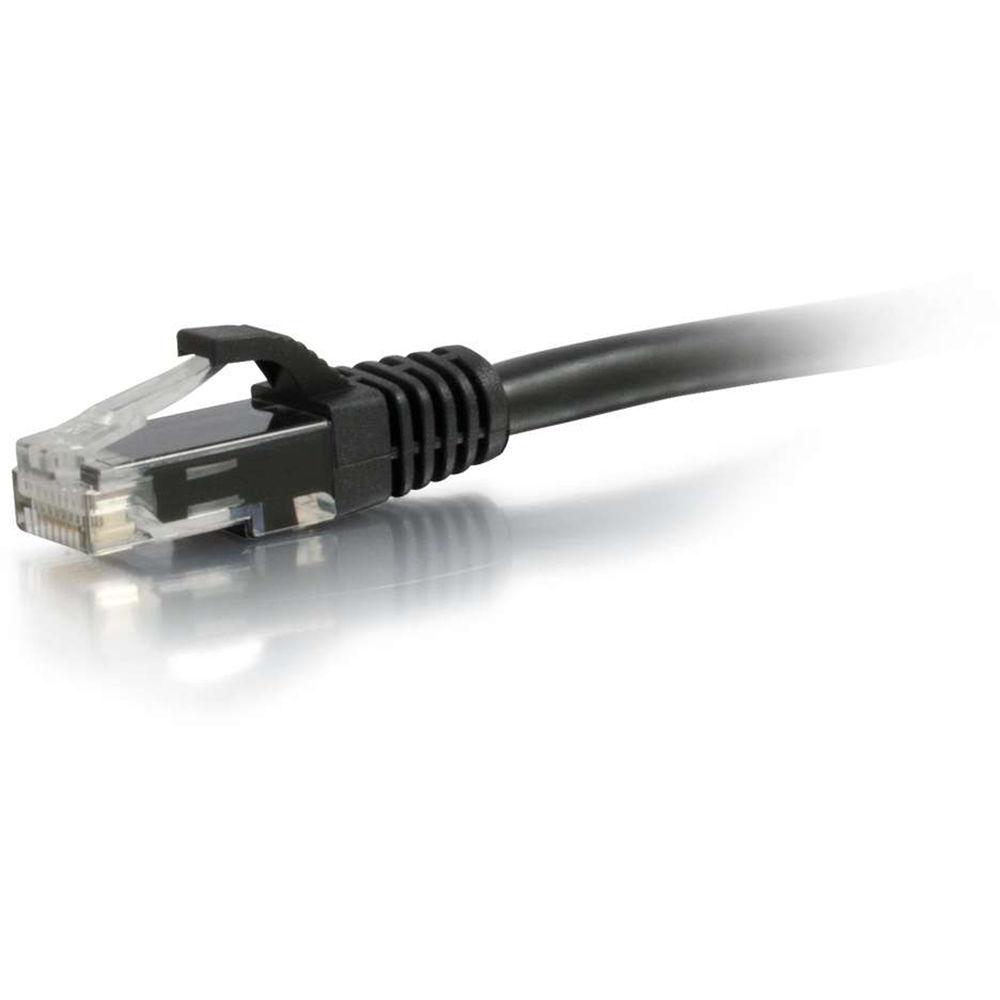

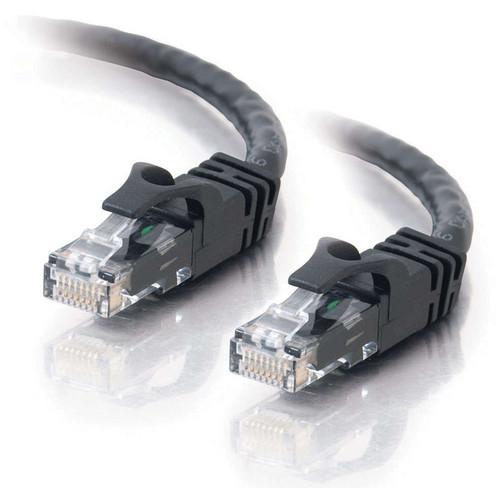

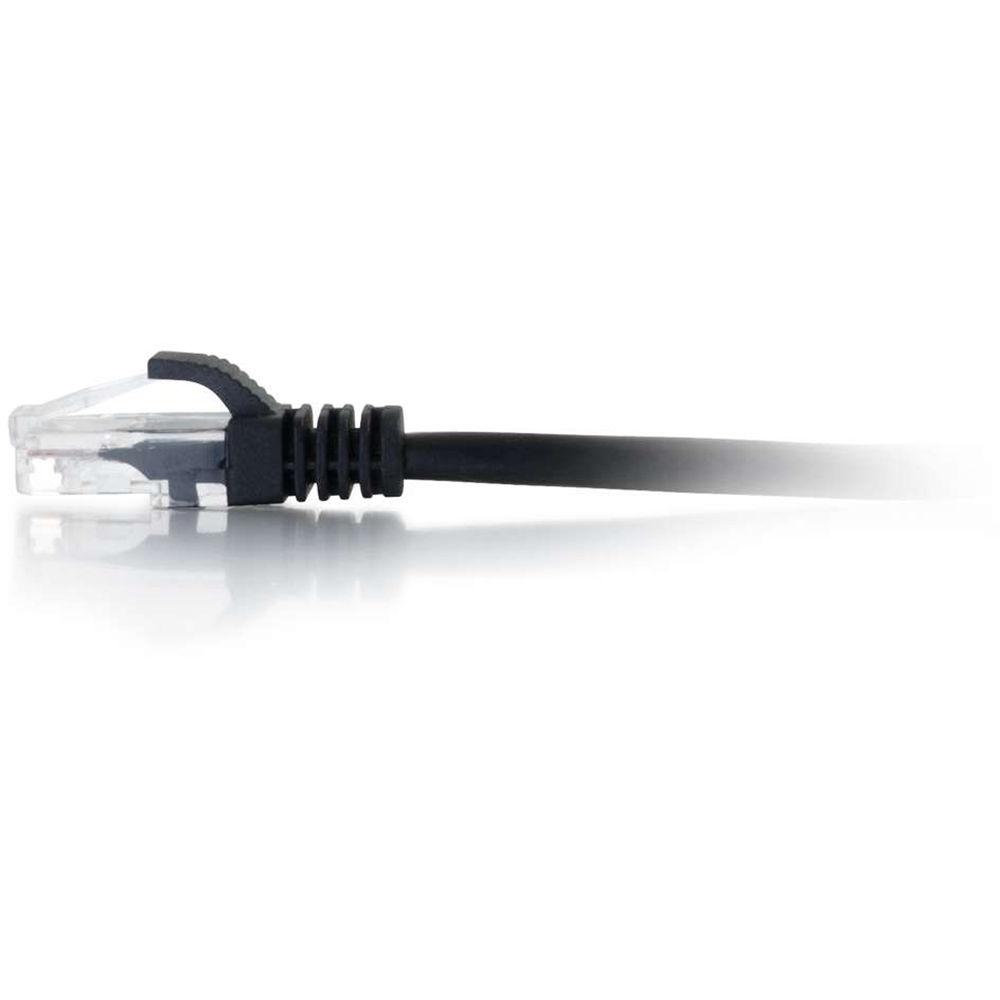

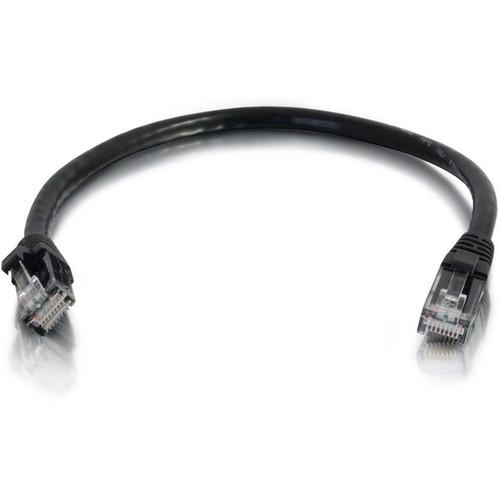

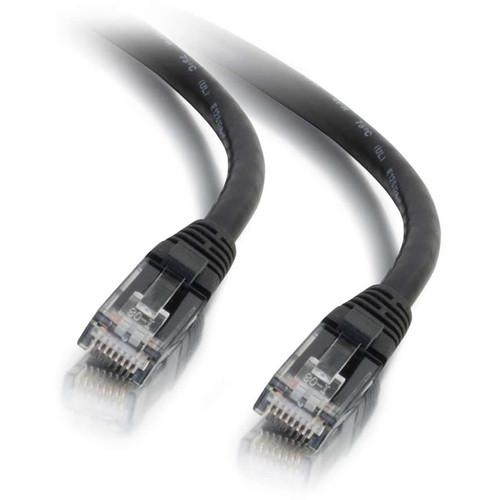

Product description The black 5' (1.52m) Cat6 Snagless Patch Cable from C2G is perfect for voice/data/video distribution. This cable can handle bandwidth-intensive applications. Furthermore, the cable drastically reduces both impedance and Structural Return Loss (SRL), enabling error-free transmission. It meets all Cat6 TIA/EIA-568-B-2.1and draft 9 standards. Each individual pair is bonded together to help maintain the twist-spacing throughout the cable right up to the termination point. Constructed from high-quality cable and a shortened body plug, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. - The cable meets all the Cat6 TIA/EIA-568-B-2.1 requirements. It drastically reduces both impedance and Structural Return Loss (SRL) to provide error-free transmission.
UPC: 757120313427 In the Box C2G 5' (1.52m) Cat6 Snagless Patch Cable (Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G 5' Cat6 Snagless Patch Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 31342 Specs | Connector 1 | 1 x RJ-45 male | | Connector 2 | 1 x RJ-45 male | | Jacket | PVC | | Applications | Gigabit 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3)
4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN
100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM
Voice: T1 | | Electrical Characteristics | Conductor DC Resistance: 9.38 Ω 3.93' (100 m) (maximum)
Impedance: 100 Ω
Capacitance: 5600 pf/3.93' (100 m)
Propagation Delay: 545 ns/3.93'(100 m) (maximum)
Delay Skew: 45 ns/3.93' (100 m) (maximum) | | Physical | Wiring Scheme: T568B
Standard: Category 6 TIA/EIA-568-B-2.1, draft 9
Temperature Rating : 140°F (60°C)
Voltage Rating : 30 V
RoHS Compliant: Yes | | Conductor | Qty. 4 twisted pair
Conductor Type: 24 AWG (7/0.20), Stranded Bare Copper
Insulation: H-D PE
Diameter: 0.98 ± 0.05 mm | | Connector Type | Qty. 2
Connector Type: 8P8C (RJ45)
Gender: Male
Connector Material: Polycarbonate
Contact Material: Copper Alloy, Gold Plating - 50 µm
Hood Material: Molded PVC | | Cable | Minimum Average Thickness: 0.02" (0.60 mm)
Outer Diameter: 0.24 ± 0.01" (6.20 ± 0.30 mm) | | Length | 5' (1.52 m) | | Weight | 2.72 oz (77.11 g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 6.5 x 5.0 x 0.5" |
