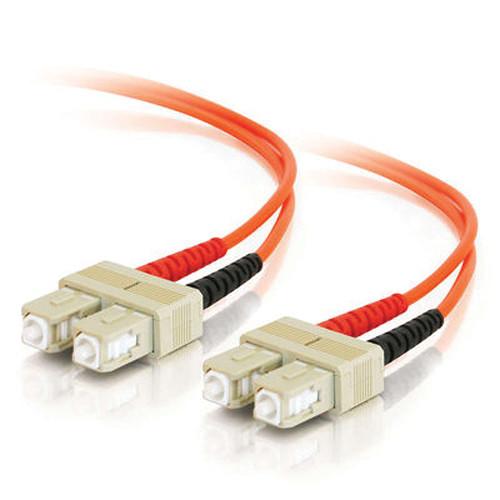

User Manual for C2G 5m SC SC Duplex 50 125 Multimode Fiber Patch Cable Click to enlarge the picture
Contents of the user manual for the C2G 5m SC SC Duplex 50
- Product category: Fiber Channel Cables & Adapters C2G
- Brand: C2G
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for C2G Fiber Channel Cables & Adapters
|
User manual for the C2G 5m SC SC Duplex 50 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any C2G product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official C2G user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a C2G product will considerably shorten its lifespan!
|
Product description The 5m SC/SC Duplex 50/125 Multimode Fiber Patch Cable (Orange) from CablesToGo is a cost-effective solution that provides high bandwidth and transmission rates and supports long distances with lower loss than 62.5/125 fiber. Specifically designed for use with today's narrow aperture components, this cable is fully compatible with multimode applications. The patented injection molding process provides each connection great durability in resisting pulls, strains and impacts from cabling installs. Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 50/125 multimode fiber, which is immune to electrical interference. - Designed for use with narrow aperture components
- Compatible with multimode applications
- Great durability in resisting pulls, strains and impacts from cabling installs
- Immune to electrical interference
UPC: 757120330059 In the Box C2G 5m SC/SC Duplex 50/125 Multimode Fiber Patch Cable (Orange) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G 5m SC SC Duplex 50 125 Multimode Fiber Patch Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 33005 Specs | Connector 1 | SC Male | | Connector 2 | SC Male | | Optical Multimode 2 | Fiber supporting 500 MHz km OFL at 850 / 1300 nm | | Maximum Connector Loss | 0.50 dB | | Typical Connector Loss | 0.30 dB | | Typical Return Loss | -25 dB | | Buffer Material | PVC | | Buffer OD | 900 µm | | Jacket Material | PVC (OFNR riser-rated) | | Jacket OD | 2.8 mm | | Installation Tensile Load | 445 lb (100 N) | | Long-Term Tensile Load | 222 lb (50 N) | | Maximum Tensile Load | 100 N/cm | | Minimum Bend Radius | Installation [Loaded]: 1.97" (5.0 cm) Long-term [Unloaded]: 1.2" (3.0 cm) | | Crush Resistance | 750 N/cm | | Impact Resistance | 1,000 cycles | | Flex Resistance | 5,000 cycles | | Attenuation at 1300 nm | 1.0 dB/km | | Attenuation at 850 nm | 3.5 dB/km | | Operating Temperature | -20 to 70° C | | Dimensions (HxWxD) | SC Connector (with installed duplex clip): 0.41 x 1.02 x 2.28" (10.6 x 26 x 58 mm) | | Weight | 3.19 oz (90.71 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 9.0 x 8.0 x 1.0" |
