User Manual for C2G 6-Port HDMI Switcher Click to enlarge the picture
Contents of the user manual for the C2G 6-Port HDMI Switcher
- Product category: HDMI & A/V Switchers C2G
- Brand: C2G
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for C2G HDMI & A/V Switchers
|
User manual for the C2G 6-Port HDMI Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any C2G product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official C2G user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a C2G product will considerably shorten its lifespan!
|

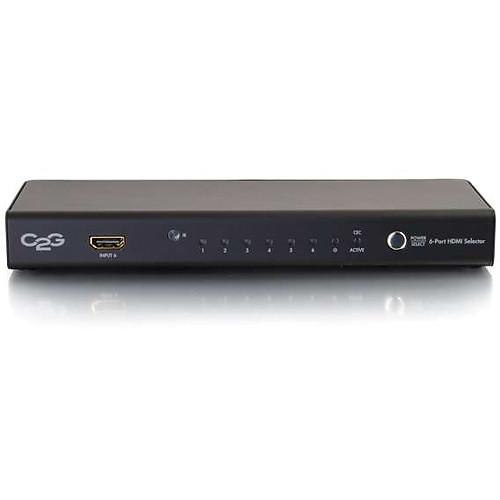

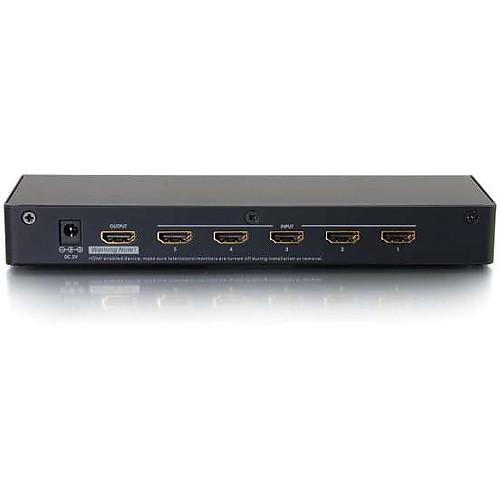

Product description Connect and switch between up to six HDMI devices, such as Blu-ray players, satellite boxes, and gaming systems, with the C2G 6-Port HDMI Switcher. It will output signals in 3D and up to 1080p with high-resolution audio support. One input is located on the front of the device for convenient switching of temporary sources, such as a camera or camcorder.
Switch inputs using the included remote control or with the front panel buttons, and blue LEDs on the front panel will let you know which device you have selected. The switch is fully compatible with HDCP-enabled devices. - Switches between six HDMI devices
- Supports resolutions up to 1080p HD
- One HDMI port is located on the front for easy swapping of devices
- Blue LED input indicators
- Fully compatible with HDCP-enabled sources
UPC: 757120415015 In the Box C2G 6-Port HDMI Switcher IR Remote Control with Battery 120 VAC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G 6-Port HDMI Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 41501 Specs Input | 6 x HDMI | Output | 1 x HDMI | Video Amplifier Bandwidth | 2.25 GHz | Supported Video Resolutions | 480i, 480p, 720p, 1080i, 1080p | HDMI Specifications Supported | 3D, Deep Color, CEC, x.v. Color, Dolby TrueHD, DTS-HD Master Audio | Maximum Resolution Supported | 1080p (1920 x 1080) | HDMI 3D Video Format | Frame Packing: 1920 x 1080p @ 23.98/24 Hz; 1280 x 720p @ 59.94/60 Hz; 1280 x 720p @ 50 Hz Side-by-Side: 1920 x 1080i @ 59.94/60 Hz; 1920 x 1080i @ 50 Hz Top and Bottom: 1920 x 1080p @ 23.98/24 Hz; 1280 x 720p @ 59.94/60 Hz; 1280 x 720p @ 50 Hz | | Housing Material | Metal | Power Adapter | Input: 100 to 240 VAC, 50 to 60 Hz Output: 5 V, 1 A Pin Diameter: 5.5 mm Center Pin Polarity: Positive | Dimensions (H x W x D) | 1.25 x 8.75 x 2.75" (3.8 x 22.2 x 6.9 cm) | Weight | 1.85 lb (0.84 kg) | | Package Weight | 1.75 lb | Box Dimensions (LxWxH) | 11.8 x 8.5 x 2.5" |
