User Manual for C2G 6' Value Composite Video & Stereo Audio Cable Click to enlarge the picture
Contents of the user manual for the C2G 6' Value Composite Video &
- Product category: RCA to RCA Cables C2G
- Brand: C2G
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for C2G RCA to RCA Cables
 |
User manual for the C2G 6' Value Composite Video & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any C2G product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official C2G user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a C2G product will considerably shorten its lifespan!
|

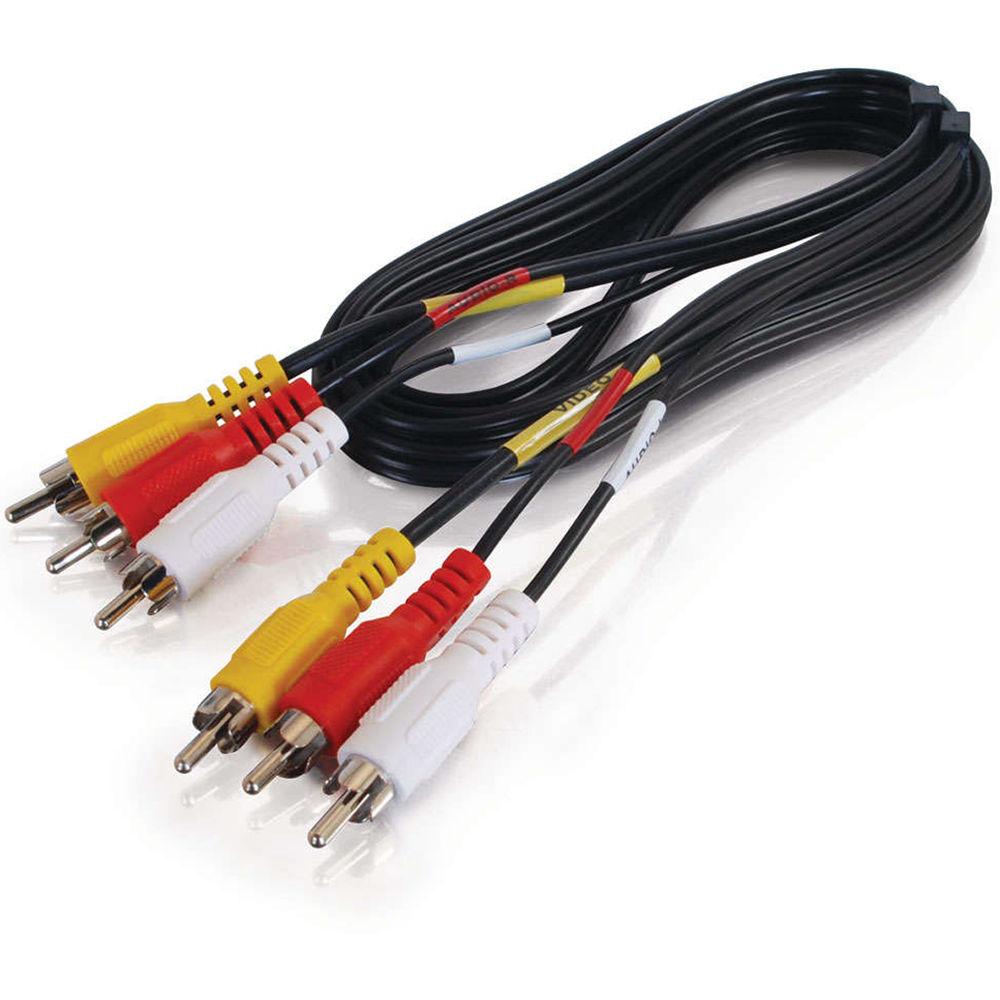

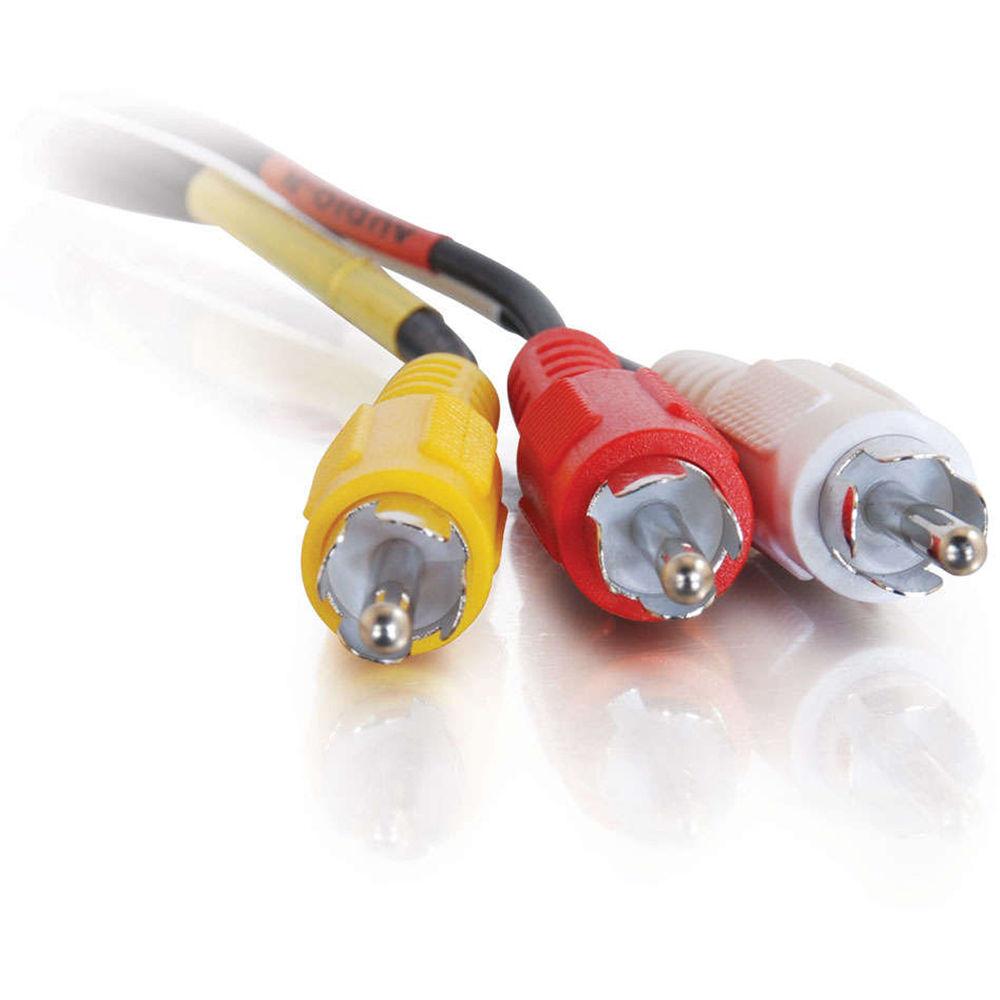

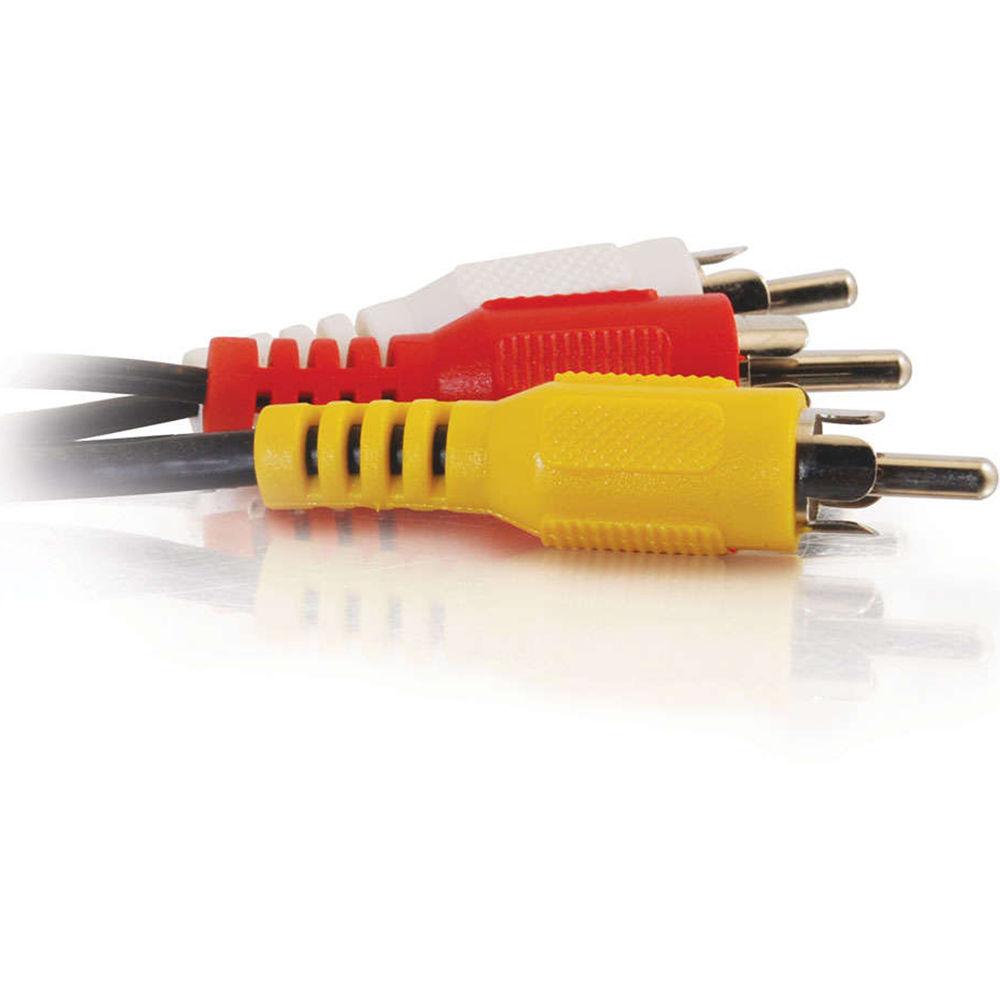

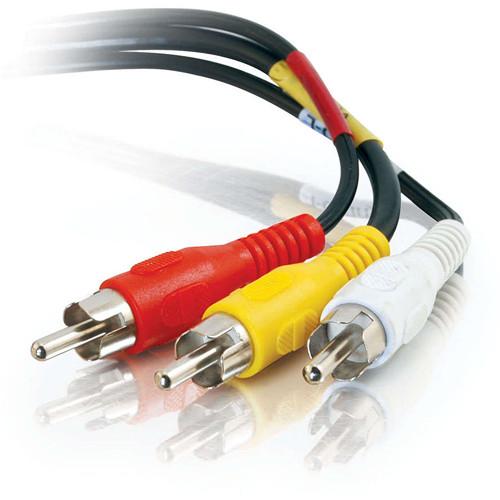

Product description The black Value series 6' Composite Video & Stereo Audio Cable from C2G connects the audio/video ports of your DVD player, camcorder, computer, or hi-fi VCR to your TV, monitor, or A/V receiver. This cable is made to deliver crisp, clear sound and video. The coax conductor's copper braid shield helps reduce unwanted noise and distortion. Nickel terminals ensure long-lasting, corrosion-free connections while the PVC jacket adds flexibility and durability. The fully molded connectors are color-coded yellow / red / white for easy installation and identification, and provide good strain relief. - Clear finish insulation on video cable
- Red and white insulation on audio cable
- PVC jacket with black finish
UPC: 757120404484 In the Box C2G 6' Value Composite Video & Stereo Audio Cable (Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G 6' Value Composite Video & Stereo Audio Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 40448 Specs | Connectors | Connector1: 1 x RCA composite video male, 1 x RCA stereo audio male
Connector2: 1 x RCA composite video male, 1 x RCA stereo audio male
Gender: Male
Contact Material: Nickel plated brass
Hood Type: Molded | | Current | Capacity: 1,000 Hz | | Impedance | Video: 75 Ω
Audio: 30 Ω | | Conductor | Video Cable
Material: Copper wire
Size: 26 AWG 7.00/0.16
2 x Audio Cable
Conductor Material: Copper Wire
Size: 26AWG 9.00 /0.12 | | Insulation | Video Cable
Material: PE
Internal Diameter: 0.06" (1.60 mm)
2 x Audio Cable
Material: PVC
Internal Diameter: 0.04" (1.00 mm) | | Shield | Video Cable
Shiel1
Material: Shielded foil
Shield2
Material: Copper cad aluminum
Type: Braid
2 x Audio cable
Material: Copper cad aluminum
Type: Spiral | | Jacket | Video Cable
Material: PVC
Outer Diameter: 0.15" (4.00 mm)
2 x Audio Cable
Material: PVC
Outer Diameter: 0.11" (2.80 mm) | | Approvals | RoHS compliant | | Cable Length | 6.00' (1.83 m) | | Weight | 0.25 lb (0.11 kg) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 8.5 x 1.0 x 1.0" |
