User Manual for C2G Cat6a Snagless Unshielded Network Patch Cable Click to enlarge the picture
Contents of the user manual for the C2G Cat6a Snagless Unshielded Network Patch
- Product category: Ethernet Cables C2G
- Brand: C2G
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for C2G Ethernet Cables
 |
User manual for the C2G Cat6a Snagless Unshielded Network Patch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any C2G product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official C2G user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a C2G product will considerably shorten its lifespan!
|

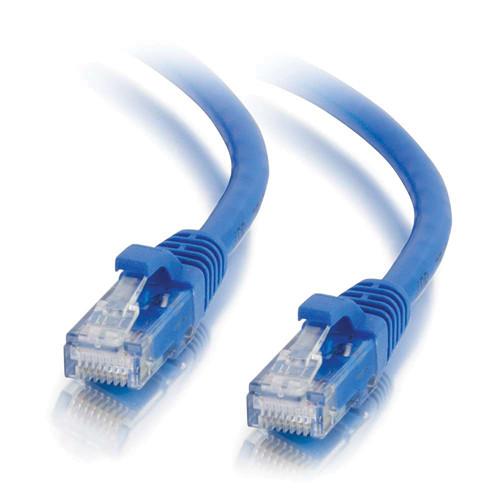

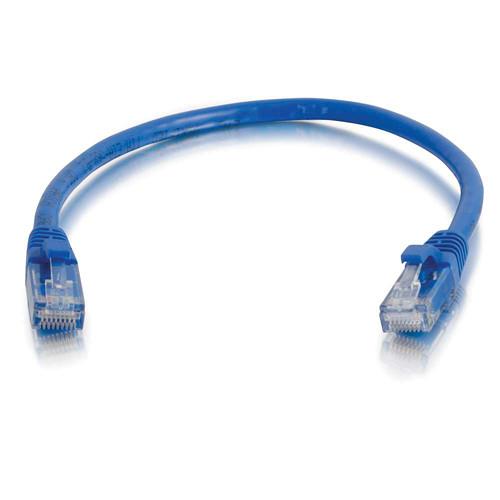

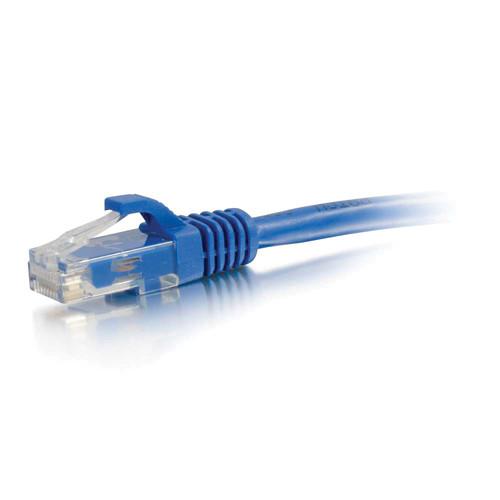

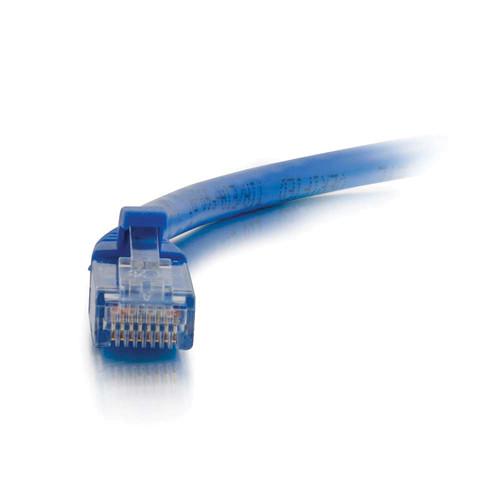

Product description The 1', blue Cat6a Snagless Unshielded (UTP) Network Patch Cable from CablesToGo is designed to work with 10GBase-T ports and equipment, such as network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. It enables 10 Gigabit data transmission over a 4-pair copper cable, allowing connections up to 328'. This patch cable meets ANSI/TIA 568 C.2 Cat6a channel requirements and offers improved alien crosstalk performance. The snagless hood is designed for high-density switch applications. UPC: 757120006893 In the Box C2G Cat6a Snagless Unshielded (UTP) Network Patch Cable (1', Blue) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G Cat6a Snagless Unshielded Network Patch Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 00689 Specs | | | Cable Type | Stranded UTP | | Wiring Scheme | T568B | | Voltage Rating | 30 V | | Temperature Rating | 161°F (75°C) | | Standard | ANSI/TIA 568 C.2 Cat6a channel tested | | Foil Shield | Aluminum foil (100% coverage) | | Jacket | PVC | | | | Type | 4-pair 26 AWG (7/0.16) bare copper | | Conductor DC Resistance | Maximum: 9.38 Ω/328' (100m) | | Impedance | 100 Ω | | Capacitance | 5600pf/328'(100 m) | | Propagation Delay | Maximum: 545ns/328'(100 m) | | Delay Skew | Maximum: 45ns/328'(100 m) | | Insulation | HD-PE | | | | Connector 1 | 8P8C (RJ-45) male | | Connector 2 | 8P8C (RJ-45) male | | Housing | Polycarbonate, UL94V-0 | | Contact | 50µm gold-plated | | Hood | Molded snagless PVC UL94V-0 | | Approvals | CE | | Dimensions (L x W x H) | 1.5 x 0.4 x 0.5" (38.2 x 11.6 x 15.1 mm) | | Weight | 0.9 oz (26.2 g) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 5.3 x 3.4 x 0.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
