User Manual for C2G DisplayPort Male to Single Link DVI-D Male Adapter Cable Click to enlarge the picture
Contents of the user manual for the C2G DisplayPort Male to Single Link
- Product category: DisplayPort to DVI/VGA Cables C2G
- Brand: C2G
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for C2G DisplayPort to DVI/VGA Cables
 |
User manual for the C2G DisplayPort Male to Single Link contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any C2G product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official C2G user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a C2G product will considerably shorten its lifespan!
|

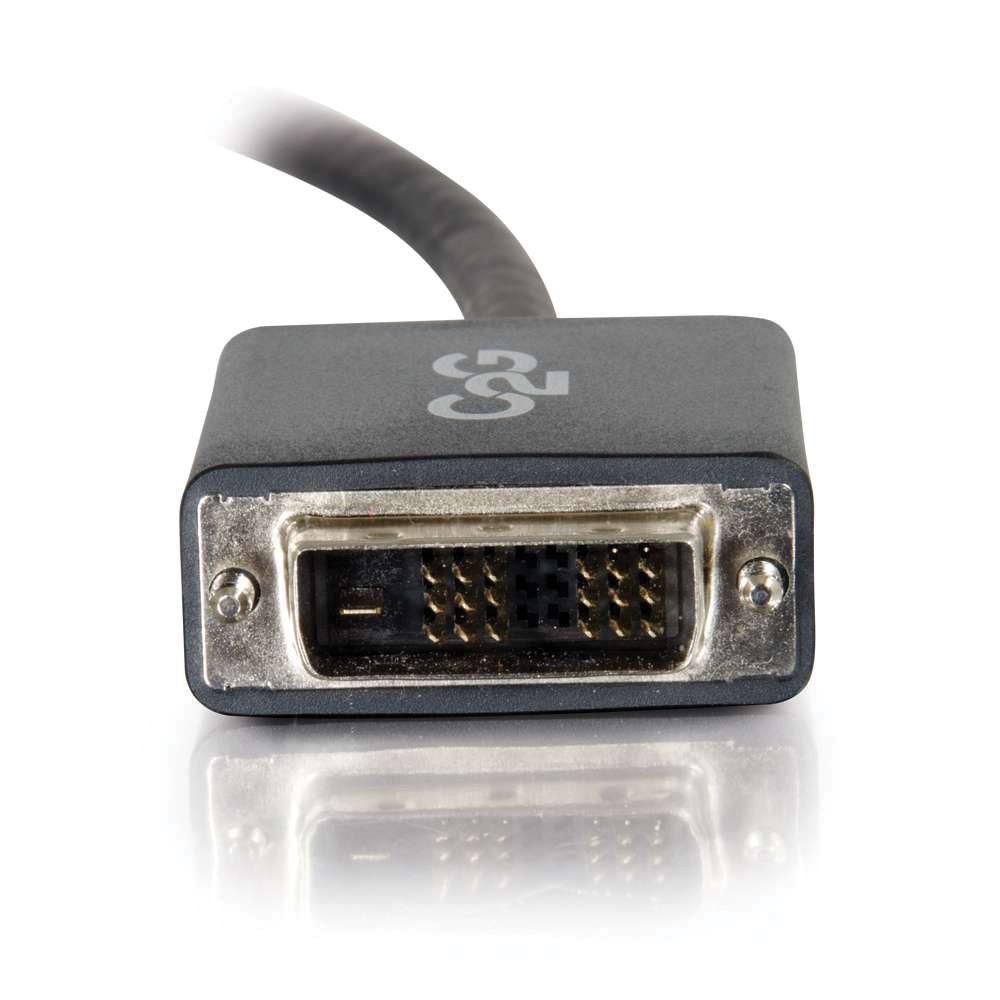

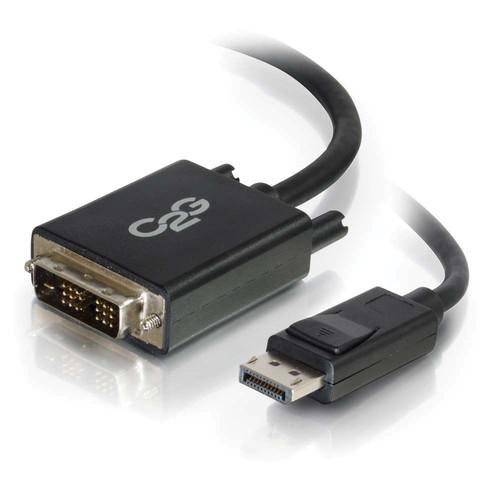

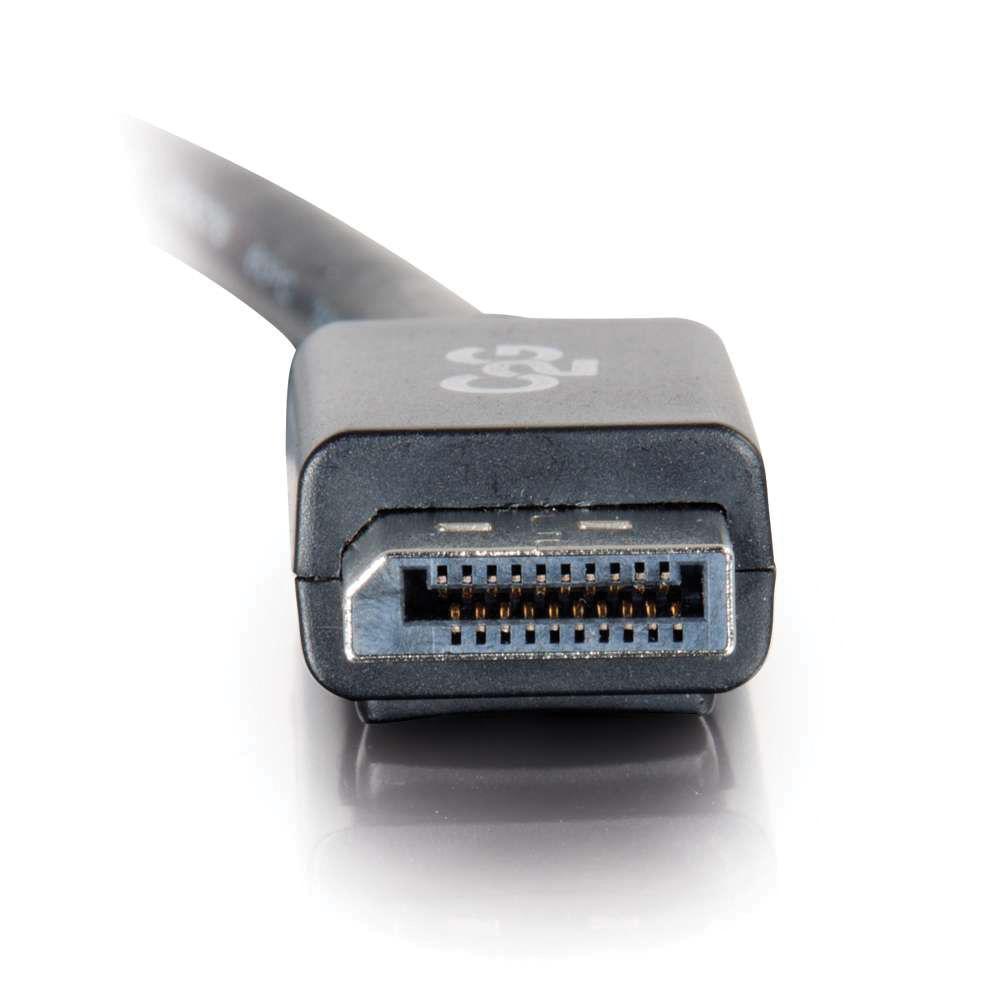

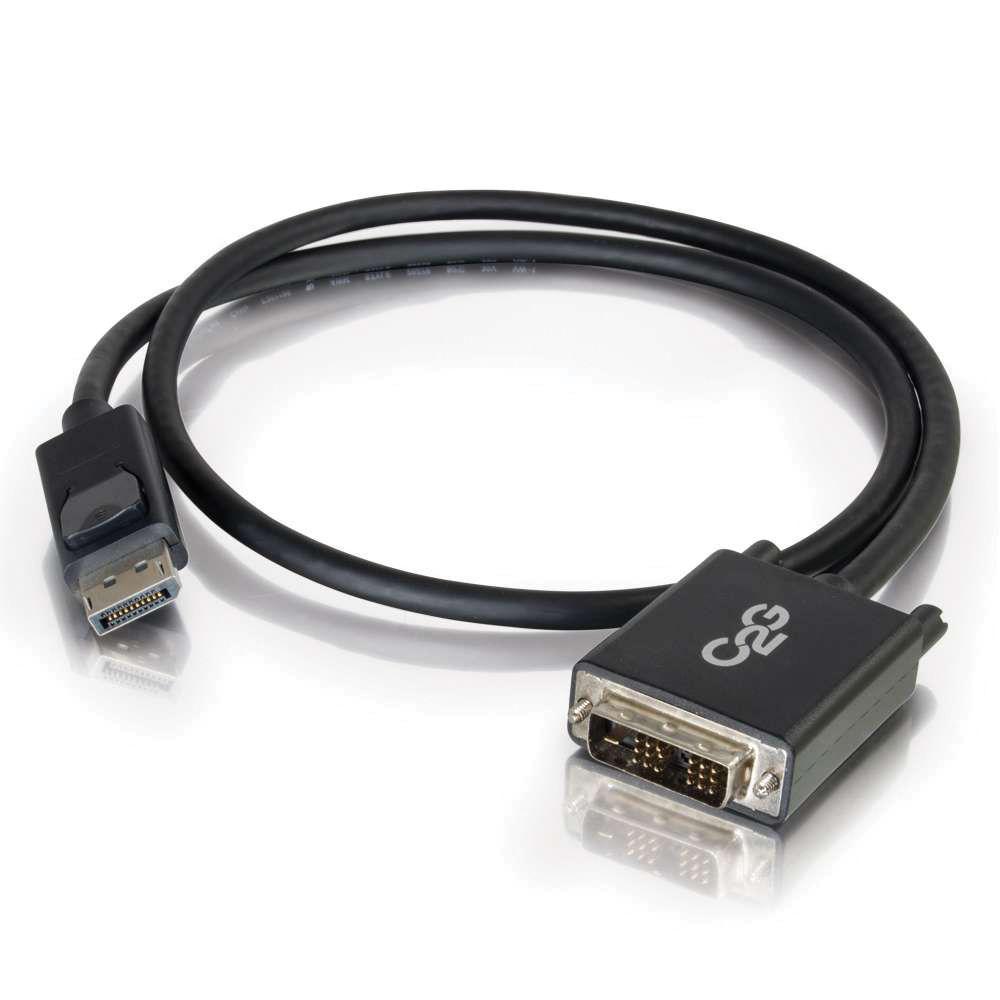

Product description The black C2G DisplayPort Male to Single Link DVI-D Male Adapter Cable is 6' long and offers a useful solution for connecting the DisplayPort output of a standard or laptop computer to the DVI input of a computer monitor. This cable carries a digital video signal, and supports up to a 1920 x 1200 resolution. UPC: 757120543299 In the Box C2G DisplayPort Male to Single Link DVI-D Male Adapter Cable (6', Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G DisplayPort Male to Single Link DVI-D Male Adapter Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 54329 Specs | | | Voltage Rating | 30 V | | Conductor Resistance | @ 68°F (20°C) max | | Insulation Resistance | 10 MOhms/km | | Time Delay | 5.2 ns/m (max) | | Attenuation | 5.02 dB @ 100-450 MHz
7.69 dB @ 1 GHz
12.595 dB @ 2 GHz
17.495 dB @ 3 GHz
22.395 dB @ 4 GHz
27.295 dB @ 5 GHz
32.195 dB @ 6 GHz
37.095 dB @ 7 GHz | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | 13 to 158°F (-25 to 70°C) | | Approvals | CE | | | | Conductor | 30 AWG (7/0.1TC) | | Insulation | FM-PE, ID:0.8±0.05 mm | | Color | White/Brown, White/Red, White/Orange, White/Green White/Blue | | Drain | 30 AWG (7/0.1 TC), HD-PE ID:0.56±0.05 | | Shield | AL-Mylar Wrap
Coverage: 100% | | | | Conductor | 30 AWG (7/0.1 TC) | | Insulation | HD-PE, ID:0.56±0.05 mm | | Color | Red/Orange/Yellow/Green/ White | | | | Jacket | PVC | | Shield | AL-Mylar
Coverage: 100%
Braid: 16/9/0.12 | | Drain | 2:30 AWG (7/0.08 BC) | | OD | 6.5±0.2 | | | | Length | 6.00' (1.83 m) | | Weight | 0.34 lb (154.22 g) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 7.4 x 6.6 x 1.0" |
