User Manual for C2G HDMI Audio De-Embedder Click to enlarge the picture
Contents of the user manual for the C2G HDMI Audio De-Embedder
- Product category: Embedders & De-Embedders C2G
- Brand: C2G
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for C2G Embedders & De-Embedders
|
User manual for the C2G HDMI Audio De-Embedder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any C2G product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official C2G user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a C2G product will considerably shorten its lifespan!
|

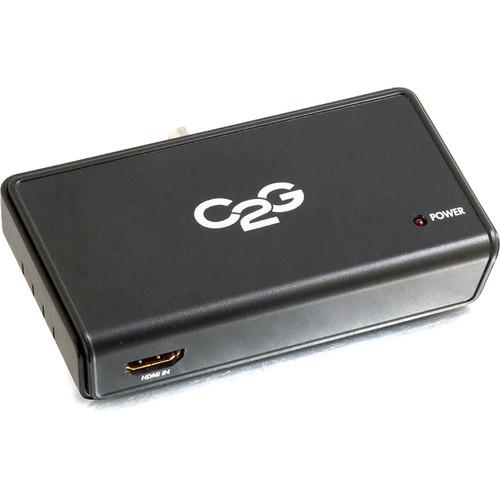

Product description The black HDMI Audio De-Embedder from C2G splits the audio off a HDMI signal and converts it into either a Toslink or RCA S/PDIF signal, or a 3.5mm Analog Stereo audio signal. This device allows you to use separate speakers or an audio system with something that only has one HDMI output.This HDMI Audio De-Embedder is suitable for projector installations where the projector does not provide an audio output and the system design calls for the use of an amplified audio reinforcement system. This de-embedder is easy to setup—simply connect the HDMI and audio cables and turn the system on.The HDMI Audio De-Embedder features 2 audio modes: when set to Mode A, it allows EDID signals to pass-through between the source and display, which automatically sets the audio output to the best common digital audio performance level. When set to Mode B, the de-embedder allows the digital audio output of the source to be set independently of the capabilities of the display. In both the modes, the digital audio must be output through the Toslink or RCA port of the de-embedder. The 3.5mm output on the de-embedder requires the source to be set to PCM audio mode. Note: Digital signals such as Dolby Digital and DTS audio from the source device are supported through the Toslink and RCA port. The 3.5mm port supports PCM audio signals from the source device. The source device must be set to a PCM audio mode to use the 3.5mm audio output. - Separates HDMI audio from HDMI video
- Supports a maximum video resolution of 1080p with 3D support
- Support for analog and digital audio output
UPC: 757120406952 In the Box C2G HDMI Audio De-Embedder (Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G HDMI Audio De-Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 40695 Specs | | | Video Resolution | 1080p | | 3D Support | Frame Packing:
1920 x 1080p at 24 Hz
1280 x 720p at 60 Hz
1280 x 720p at 50 Hz
Side by side:
1920 x 1080i at 60 Hz
1920 x 1080i at 50 Hz
Top & Bottom:
1920 x 1080p at 24 Hz
1280 x 720p at 60 Hz
1280 x 720p at 50 Hz | | Audio Signals | Stereo audio
Dolby Digital 5.1
DTS 5.1
PCM 2CH
AAC | | Audio Output | Output Impedance: 100 Ω
Full Scale Output Voltage: 800 mV Vpp
Maximum AC Load Resistance: 3 kΩ | | Video Specifications | Video Amplifier Bandwidth: 2.25 GHz
Input DDC Signal: 5 Vpp (TTL)
Operation Pixel Frequency Range: 25 to 225 MHz | | | | Input Power | 100 to 240 V, 50/60 Hz, 300 mA | | Output Power | 5 V, 1,000 mA | | Diameter | DC Power Pin: 5.5mm | | Center Pin Polarity | Positive | | Cable Length | 5.00' (1.52 m) | | | | Video Input | HDMI female | | Video Output | HDMI female | | Audio Output | 3.5 mm stereo audio female
RCA digital audio female
Toslink optical digital audio female | | Dimensions (H x W x D) | 1.0 x 5.0 x 2.6" (2.5 x 12.7 x 6.6 cm) | | Weight | 0.30 lb (0.14 kg) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 9.3 x 6.2 x 2.5" |
