User Manual for C2G HDMI Male to DVI-D Male Digital Video Cable Click to enlarge the picture
Contents of the user manual for the C2G HDMI Male to DVI-D Male
- Product category: HDMI to DVI Cables C2G
- Brand: C2G
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for C2G HDMI to DVI Cables
 |
User manual for the C2G HDMI Male to DVI-D Male contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any C2G product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official C2G user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a C2G product will considerably shorten its lifespan!
|

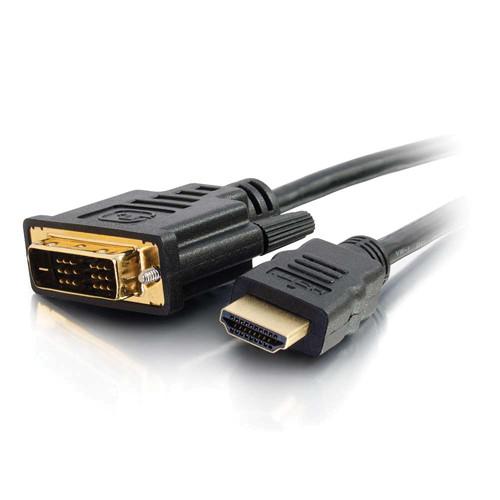

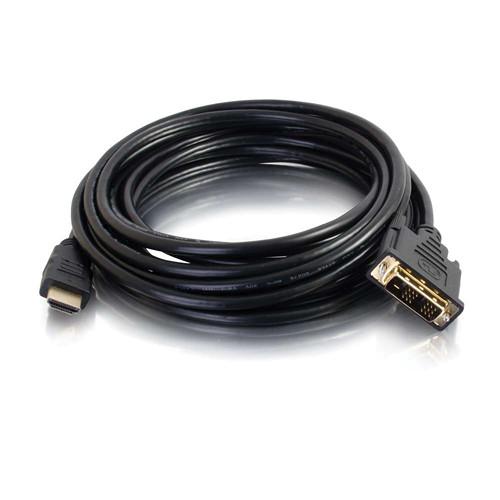

Product description The black C2G HDMI Male to DVI-D Male Digital Video Cable is a 16.4' cable that connects an HDMI source device to a DVI-D display or a DVI-D source device to an HDMI display. This fully-functional, high-bandwidth cable is tested to perform at industry standards. - Full 1080p resolution support
- High-bandwidth conductor (10.2 Gbps) for high-speed data transfer
- Fully shielded to provide immunity to EMI/RFI interference
UPC: 757120425182 In the Box C2G HDMI Male to DVI-D Male Digital Video Cable (Black, 16.4') Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G HDMI Male to DVI-D Male Digital Video Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 42518 Specs | | | Resolution Supported | Up to 1080p | | Bandwidth | 340 MHz | | Nominal Velocity of Propagation | 10.2 Gbps | | Nominal Attenuation | 8 dB (1-825 MHz) | | DC Resistance | 300 V | | Dielectric Strength | AC 500 V/minute | | Insulation Resistance | 100 Ω | | | | Voltage Rating | 30 V | | Maximum Bend Radius | 3.25" (82.5 mm) | | Operating Temperature Range | 32-122°F (0-50°C) | | Storage Temperature Range | -13-185°F (-25-85°C) | | Approvals | RoHS | | Conductor | Conductor 1 (4 pair):
Conductor Type: 30 AWG (7/0.10), tinned copper
Insulation: Foamed PE SKIN, red/white, brown/white, blue/white, green/white, black/white
O.D.: 0.03" ( 0.78 mm)
Drain Wire: 30 AWG (7/0.10), tinned copper
Shield: aluminum foil, 100% coverage
Conductor 2 (1 pair):
Conductor Type: 30 AWG (7/0.10), Tinned Copper
Insulation - HDPE, yellow, red, green, purple
O.D.: 0.02" (0.55 mm)
Conductor 3 (3 conductors):
Conductor Type: 30 AWG (7/0.10), tinned copper
Insulation: HDPE, Yellow, Red, Green, Purple
O.D.: 0.02" (0.55 mm) | | Cable | Drain Wire: 30 AWG (07/0.10), tinned copper
Foil Shield: aluminum foil, 100% coverage
Braided Shield: 16/4/0.12, Al/Mg

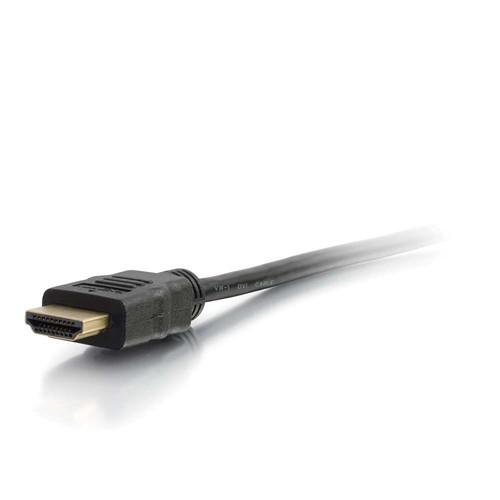

Jacket: PVC, O.D.: 0.24 ± 0.008" (6.0 ± 0.2 mm) | | Connector 1 | Connector Type: HDMI type A male
Pin Construction: phosphor copper
Plating: 1 µm Gold

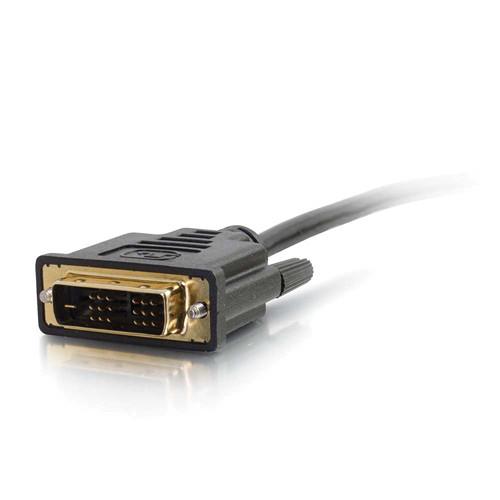

Dimensions: 0.39 x 0.79 x 1.46" (10.0 x 20.1 x 37.1 mm) | | Connector 2 | Connector Type: DVI-D single link male
Pin Construction: phosphor copper
Plating: 3 µm gold
Dimensions: 0.62 x 1.55 x 1.84" (16.0 x 39.4 x 46.7 mm) | | Length | 16.4 ft. | | Weight | 0.45 lb (0.2 kg) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 7.1 x 5.3 x 1.1" |
