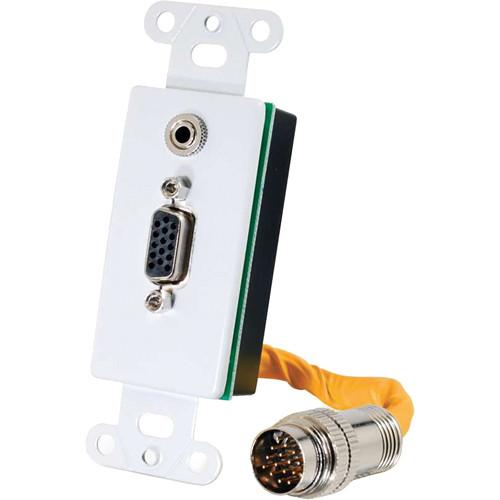

User Manual for C2G RapidRun Decora-Style Multi-Format Wall Plate with HD15 VGA Connector & 3.5mm Jack Click to enlarge the picture
Contents of the user manual for the C2G RapidRun Decora-Style Multi-Format Wall Plate
- Product category: Wall Plates & Installation Boxes C2G
- Brand: C2G
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for C2G Wall Plates & Installation Boxes
|
User manual for the C2G RapidRun Decora-Style Multi-Format Wall Plate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any C2G product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official C2G user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a C2G product will considerably shorten its lifespan!
|
Product description The white RapidRun Decora-Style Multi-Format Wall Plate with HD15 VGA Connector & 3.5mm Jack from C2G gives a clean and aesthetic finish to your in-wall audio/video installations. This wall plate can be used with a Multi-Format Runner Cable (sold separately) for projectors and any display requiring a VGA and 3.5mm audio connection.
Using pre-terminated breakaway flying leads (sold separately) and wall plates with an in-wall runner cable ensures flexible, efficient, and high-quality connections with no field terminations for all types of equipment.
Suitable for educational and institutional installations, this wall plate receives PC video and 3.5mm stereo audio signals from a single runner cable. Its aluminum body offers durability.
The wall plate also has a locking connector that enables the integrator to save valuable space inside the surface mount or electrical box, which typically is already packed with cables. The included keystone bezels will work with most brands of keystone inserts including Leviton, L-com, NetKey, ADC Krone, HellermannTyton, and Allen Tel. Note: Each complete RapidRun multi-format system requires a breakaway flying lead or wall plate to terminate each end of the runner cable. Each runner cable requires 2 breakaway flying leads and 2 wall plates or 1 breakaway flying lead and 1 wall plate. - Color Code: Orange (for use with multi-format runner cables)
- Supports resolutions up to 1600 x 1200 pixels (UXGA resolution)
- Features three 28 AWG coaxial cables with braided copper shielding, three 26 AWG twisted pair cables, and a single 26 AWG pair of cables 1
Please Note: Specifications apply only to the raw cable used to construct the cable assemblies. close - Compatible with Leviton Decora brand of cover plates
UPC: 757120600541 In the Box C2G RapidRun Decora-Style Multi-Format Wall Plate with HD15 VGA Connector & 3.5mm Jack (White) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G RapidRun Decora-Style Multi-Format Wall Plate with HD15 VGA Connector & 3.5mm Jack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 60054 Specs | | | Component | 3 Coax Conductor | | Impedance | 75 ± 5 Ω | | Capacitance | 71 ± 2 pF/ft (nominal) | | Velocity of Propagation | 78 ± 1% | | DC Resistance | 237 ± 10 Ω/km | | Dielectric Strength | 500 VAC/minute | | Insulation Resistance | At 500 V: 10 MΩ/km | | Conductor | Type: 24AWG (7/0.2) (tinned copper) | | Foil Shield | Aluminum foil (100% coverage) | | Insulation | PVC | | Component | 3 Twisted Pair Conductors | | DC Resistance | 93.25 Ω/m at 68°F (20°C) | | Dielectric Strength | 750 VAC/minute | | Insulation Resistance | 100 MΩ/km at 68°F (20°C) | | Conductor | Type: Tinned Copper: 24 AWG (7/0.2) | | Foil Shield | Aluminum foil (100% coverage) | | Insulation | PVC | | Component | Two 26 AWG Conductors | | Conductor | Type: Tinned Copper: 24 AWG (7/0.2) | | Insulation | PVC | | Component | VGA Connector | | Connector Type | HD15 | | Gender | Female | | Material | Contact: Brass, 3 µm gold plated | | Insulation | Black PBT Pin 9 is not loaded | | Component | 3.5mm Connector | | Connector Type | 3.5mm stereo | | Gender | Female | | Material | Contact: Brass, 3 µm nickel plated | | Insulation | Black PBT | | Component | RapidRun Din Connector | | Connector Type | DIN 15-pin | | Gender | Male | | Material | Contact: Brass, 3 µm gold plated | | Insulation | Black PBT | | Attenuation | Nominal
Minimum & Maximum Limits at 1 to 825 MHz Frequency: -5 dB
Minimum & Maximum Limits at 825 to 2475 MHz Frequency: -5 and -12 dB respectively
Minimum & Maximum Limits at 2475 to 4125 MHz Frequency: -12 and -20 dB respectively
Minimum & Maximum Limits at 4125 to 5100 MHz Frequency: -20 and -25 dB respectively | | | | Cable Jacket Type | Orange heat shrink | | Voltage Rating | 30 V | | Temperature | Minimum: -13°F (-25°C)
Maximum: 176°F (80°C) | | Minimum Bend Radius | 3.54" (90.00 mm) | | Dimensions | Length between two mounts: 3.9" (97.0 mm) Width: 1.3" (33.0 mm) Thickness (excluding protrusion): 0.8" (20.0 mm) Length of the cable (including connector): 5.11" (130.00 mm) Length of the HD15 VGA Connector: 1.5" (37.0 mm) Diameter of the HD15 VGA Connector: 0.7" (18.5 mm) | | Weight | 0.240 lb (0.108 kg) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.3 x 2.0 x 1.7" |
