User Manual for C2G RapidRun HD15 3.5mm 3RCA Multi-Format Single Gang Audio Video Wall Plate Click to enlarge the picture
Contents of the user manual for the C2G RapidRun HD15 3.5mm 3RCA Multi-Format
- Product category: Wall Plates & Installation Boxes C2G
- Brand: C2G
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for C2G Wall Plates & Installation Boxes
 |
User manual for the C2G RapidRun HD15 3.5mm 3RCA Multi-Format contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any C2G product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official C2G user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a C2G product will considerably shorten its lifespan!
|

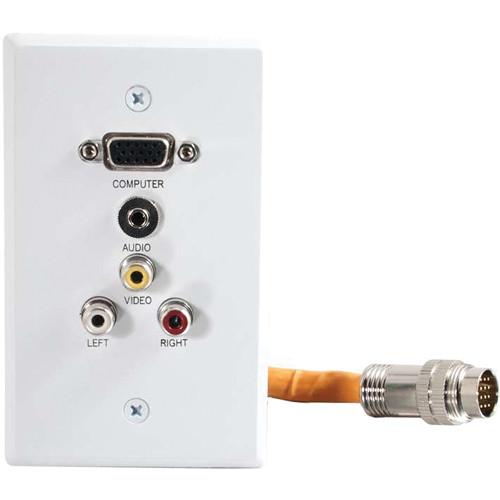

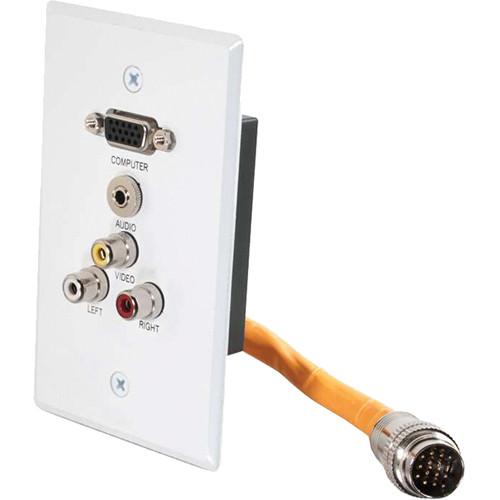

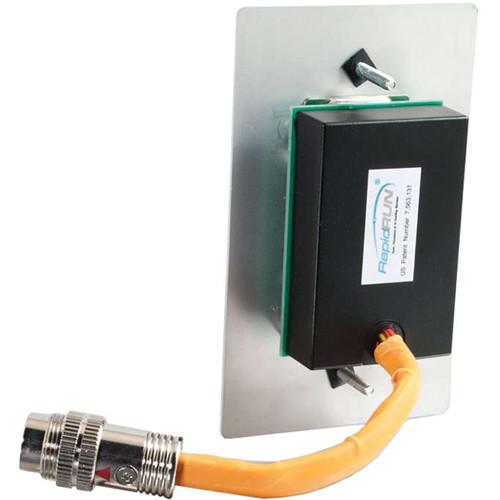

Product description The white RapidRun HD15 + 3.5mm + 3RCA Multi-Format Single Gang Audio/Video Wall Plate from Cables To Go is designed to be the standard for in-wall audio/video installations. The RapidRun system allows for customization of installations, thereby creating a suitable audio/video connectivity solution. Break-away flying leads and wall plates ensure flexible, efficient, and high-quality connections for all types of equipment.
Enhanced engineering allows RapidRun Multi-Format to deliver crisp video and high fidelity audio from multiple source devices to the display. This system integrates all A/V technology in a room including laptops, projectors, DVD players, interactive whiteboards, and more into a single cable. Its ability to support multiple signals (VGA, 3.5mm audio, composite video, and dual RCA audio) over a single cable saves installation time and money for the integrator, the installer, and the end-user. - Runner cable available in a CMG or CMP (plenum) rated jacket for commercial installations
- Delivers crisp video and high fidelity audio from a source device to display
- Supports resolutions up to 1900 x 1200 pixels (UXGA resolution)
- Three 28 AWG coaxial cables with braided copper shielding, three 24AWG individually shielded twisted pair, and a single 24AWG pair
- Integrates all technology in the room with a single cabling system - laptops, projectors, DVD players, interactive whiteboards, and more
- Optimized for high density signal applications including VGA, 3.5mm, composite video, stereo audio RCA, plus future upgrades for HDMI
UPC: 757120600305 In the Box C2G RapidRun HD15 + 3.5mm + 3RCA Multi-Format Single Gang Audio/Video Wall Plate (White) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G RapidRun HD15 3.5mm 3RCA Multi-Format Single Gang Audio Video Wall Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 60030 Specs | | | Type | 3 coax conductors | | Impedance | 75 ± 5 Ω | | Capacitance | 71 ± 2 pF/ft nom | | Velocity of Propagation | 78 ± 1% | | DC Resistance | 237 ± 10 Ω/km | | Dielectric Strength | 500 VAC/1 minute minimum | | Insulation Resistance | 500 V: 10 MΩ/km | | Attenuation | Coax (dB/6m)
1 MHz
Red: 0.15
Green: 0.14
Blue: 0.14
10 MHz
Red: 0.86
Green: 0.97
Blue: 0.41
100 MHz
Red: 2.98
Green: 3.23
Blue: 1.26
200 MHz
Red: 4.45
Green: 4.87
Blue: 1.82
500 MHz
Red: 6.72
Green: 7.75
Blue: 3.00
700 MHz
Red: 9.95
Green: 12.01
Blue: 3.64
1,000 MHz
Red: 13.20
Green: 17.52
Blue: 4.59 | | Type | 3 twisted pair conductors | | DC Resistance | 93.25 Q/m at 20°C | | Dielectric Strength | 750 VAC/ minute minimum | | Insulation Resistance | 100 MΩ/km at 68°F (20°C) | | | | Type | 28 AWG 7/0.127
Tinned copper | | Quantity | 3 | | Dielectric | Minimum Average Thickness: 1.57 mm
Foam PE | | Shield | Spiral 90% coverage
Tinned copper | | Insulation | Minimum Average Thickness: 0.23 mm
PVC: 1 x Red, 1 x Blue, 1 x Green | | | | Type | 24 AWG 7/0.2
Tinned copper | | Quantity | 3 twisted pair + 2 conductors | | Foil Shield | Aluminum
100 % coverage | | Insulation | Minimum Average Thickness: 0.23 mm

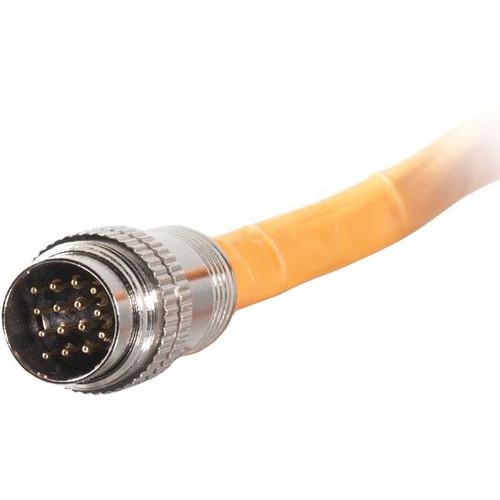

PVC | | | | Jacket | Orange heat shrink | | Approvals | RoHS compliant | | | | Connector | 1 | | Type | High density D-Sub 15-pin | | Quantity | 1 | | Gender | Female | | Material | Brass, 3 µm gold plating | | Insulation | Black PBT Pin 9 is not loaded. | | Connector | 2 | | Type | 3.5 mm stereo | | Quantity | 1 | | Gender | Female | | Material | Brass, 3µm nickel plating | | Connector | 3 | | Type | RCA | | Quantity | 3 | | Gender | Female | | Material | Brass, 3µm nickel plating | | Insulation | Yellow, red, and white PBT | | Connector | 4 | | Type | RapidRun DIN 15-pin | | Quantity | 1 | | Gender | Male | | Material | Brass, 3 µm gold plating | | Insulation | Black PBT | | | | Voltage Rating | 30 V | | Temperature Rating | 176°F (80°C) | | Temperature Range | -13 to 176°F (-25 to 80°C) | | Minimum Bend Radius | 3.5" (90.0 mm) | | Weight | 0.390 lb (0.176 kg) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.6 x 3.1 x 1.6" |
