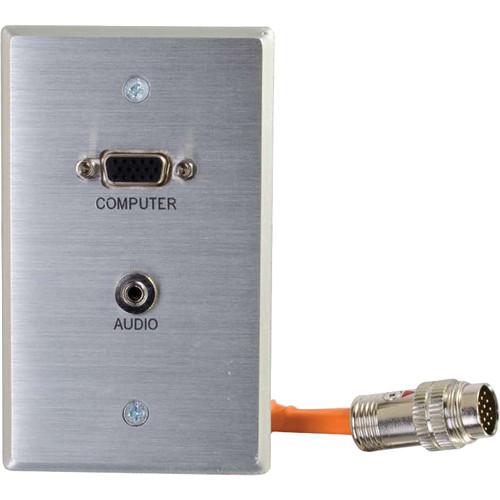

Product description The RapidRun VGA (HD15) + 3.5mm Single Gang Wall Plate from C2G is used with a multi-format runner for a laptop, desktop, or any device that requires a VGA and a stereo audio connection. It is designed to be the standard for in-wall audio/video installations. Using pre-terminated break-away flying leads and wall plates with an in-wall runner (sold separately) ensures flexible, efficient, high-quality connections for all types of equipment, with no field terminations.

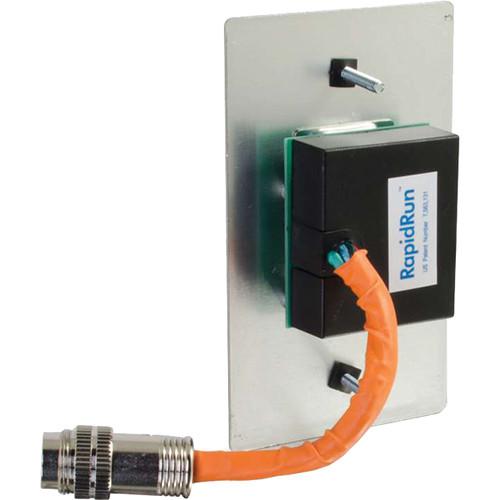

Constructed from aluminum for durability, this wall plate has a locking connector that enables the integrator to save valuable space inside the surface mount or electrical box that typically is already packed with cables.
Suitable for educational and institutional installations, this wall plate sends VGA and stereo audio over a single multi-format runner cable. It is commonly used on the teacher’s station (computer end) of classroom setups with the corresponding flying lead used at the projector. Note: Each complete RapidRun multi-format solution requires a separately sold break-away flying lead or wall plate to terminate each end of the runner cable. Each runner requires separately sold 2x break-away flying leads and 2x wall plates, or 1x break-away flying lead and 1x wall plate. UPC: 757120601074 In the Box C2G RapidRun VGA (HD15) + 3.5mm Single Gang Wall Plate Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G RapidRun VGA 3.5mm Single Gang Wall Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 60107 Specs | | | Impedance | Coax: 75 ±5 Ω | | Capacitance | 71 ±2 pF/ft | | Velocity of Propagation | 78 ± 1% | | DC Resistance | 237 ±10 Ω/km | | Dielectric Strength | Minimum: 500 VAC / 1 minute | | Insulation Resistance | 10M Ω/km (500 V) | | Nominal Attenuation | At 1 to 825 MHz
Minimum Limit: -5 dB
Maximum Limit: -5 dB
Frequency:
825 to 2475 MHz
Minimum Limit: -5 dB
Maximum Limit: -12 dB
Frequency:
2475 to 4125 MHz
Minimum Limit: -12 dB
Maximum Limit: -20 dB
Frequency:
4125 to 5100 MHz
Minimum Limit: -20 dB
Maximum Limit: -25 dB | | | | DC Resistance | 3 Twisted Pair: 93.25 Ω/m at 68°F (20°C) | | Dielectric Strength | Minimum: 750 VAC/minute | | Insulation Resistance | 100M Ω/km at 68°F (20°C) | | | | Type | Qty. 3: 28 AWG (7/0.127) (tinned copper) | | Dielectric | Foam PE | | Thickness | Minimum Average:
Foam PE: 0.06" (1.57 mm)
PVC (Red, Blue, & Green): 0.009" (0.230 mm) | | Shield | Spiral shield (tinned copper) (90% coverage) | | Insulation | PVC | | Type | Qty. 3 Twisted Pair: 24 AWG (7/0.2) (tinned copper) | | Foil Shield | Aluminum foil (100% coverage) | | Insulation | PVC | | Thickness | Minimum Average:
PVC: 0.009" (0.230 mm) | | Type | Qty. 2 Conductors: 24 AWG (7/0.2) (tinned copper) | | Insulation | PVC | | Thickness | Minimum Average:

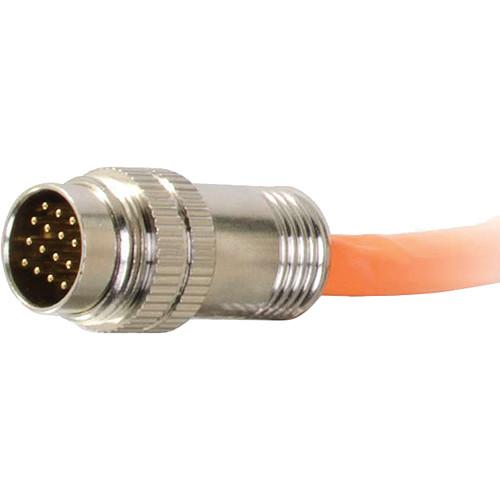

PVC: 0.009" (0.23 mm) | | | | Type | VGA Connector (Qty. 1): HD15 | | Gender | Female | | Material | Brass, 3 ΩM gold plating | | Insulation | Black PBT Pin 9 is not loaded. | | Type | 3.5 mm Connector (Qty. 1): 3.5 mm Stereo | | Gender | Female | | Material | Brass, 3 ΩM nickel plating | | Insulation | Black PBT | | Type | RapidRun Din Connector (Qty. 1): DIN 15-pin | | Gender | Male | | Material | Brass, 3 ΩM gold plating | | Insulation | Black PBT | | | | Voltage Rating | 30 V | | Temperature Rating | 176°F (80°C) | | Temperature Range | -13 to 176°F (-25 to 80°C) | | Minimum Bend Radius | 3.5" (90.0 mm) | | Approvals | CE | | Dimensions (L x W x H) | 6.5 x 3.0 x 2.4" (165.1 x 76.2 x 60.9 mm) | | Weight | 0.38 lb (0.17 kg) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.6 x 3.1 x 1.6" |
