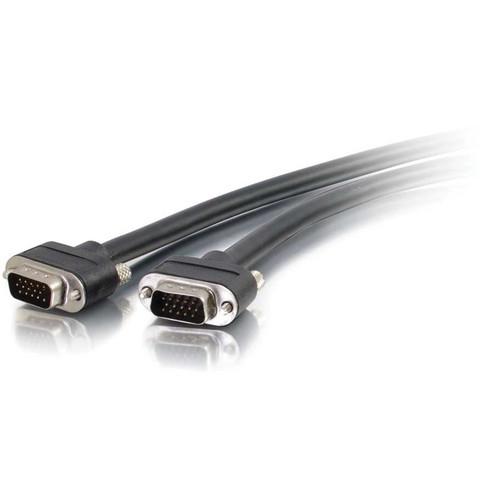

User Manual for C2G Select VGA HD15 Male to HD15 Male Video Cable Click to enlarge the picture
Contents of the user manual for the C2G Select VGA HD15 Male to
- Product category: VGA to VGA Cables C2G
- Brand: C2G
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for C2G VGA to VGA Cables
|
User manual for the C2G Select VGA HD15 Male to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any C2G product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official C2G user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a C2G product will considerably shorten its lifespan!
|
Product description The 100', black Select VGA HD15 Male to HD15 Male Video Cable from C2G is perfect for source to display connectivity for in-home desktop or in-wall commercial applications, which require video resolutions of up to QXGA (2048x1536). The CMG rated jacket provides a solution for in-wall applications, while the low-profile, rounded connectors make it easy-to-install in tight spaces, such as a projector mount pole. This cable is designed to support high-resolution video applications over long distances of up to 150'(47.7 m). All 15-pins are wired to support DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals i.e. communication of the displays capabilities, ensuring that the content from the source is sent at the optimal resolution for the display. - Resolution supported up to QXGA (2048 x 1536)
- CMG rated jacket provides a solution for in-wall applications
- All 15-pins are wired to support DDC2 (E-DDC) and Extended Display Identification Data(EDID)
- Supports high-resolution video applications over long distances of up to 150'(47.7 m)
UPC: 757120502203 In the Box C2G Select VGA HD15 Male to HD15 Male Video Cable (100', Black) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G Select VGA HD15 Male to HD15 Male Video Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 50220 Specs | | | Connector Type | HD15 VGA | | Connector 1 | HD15 male | | Connector 2 | HD15 male | | | | Plating | Nickel | | Housing Material | Black PBT | | Voltage Rating | 30 V | | Minimum Bend Radius | 3.5'(90 mm) | | | | Conductor | 3-Conductors:
Conductor Type: 28 AWG (7/0.127)(Tinned Copper (OFC))
Insulation: Foam-PE
Covering: PVC
Drain Wire: 24 AWG (7/0.20)(Tinned Copper)
Shield: Aluminum Foil (100% Coverage)
9-Conductors:
Conductor Type: 24 AWG (7/0.127)(Tinned Copper (OFC))
Insulation: SR-PVC | | | | Maximum Resolution Supported | 2048 x 1536 | | Nominal Impedance | 75 ±5 Ω | | Nominal Capacitance | 58 pF/m | | Conductor Resistance | 28 AWG-237.25 Ω/km, 24 AWG-93.25 Ω/km | | Insulation Resistance | 10 MΩ/km at 68°F (20°C) 500 VDC | | Dielectric Strength | 500 VAC/1 minute | | | | Foil Shield | Aluminum Foil (100% coverage) | | Braided Shield | 16/10/0.12 (85% coverage) (Tinned Copper (OFC)) | | Drain Wire | 26 AWG (7/0.20) (Tinned Copper) | | Jacket | CMG | | | | Cable Length | 100' (30.4 m) | | Dimensions (W x H x D) | Connector: 1.22 x 0.51 x 0.9"(31.2 x 13.1 x 24 mm) | | Weight | 8 lb (3.6 kg) | | | | Package Weight | 8.25 lb | | Box Dimensions (LxWxH) | 9.9 x 6.6 x 4.7" |
