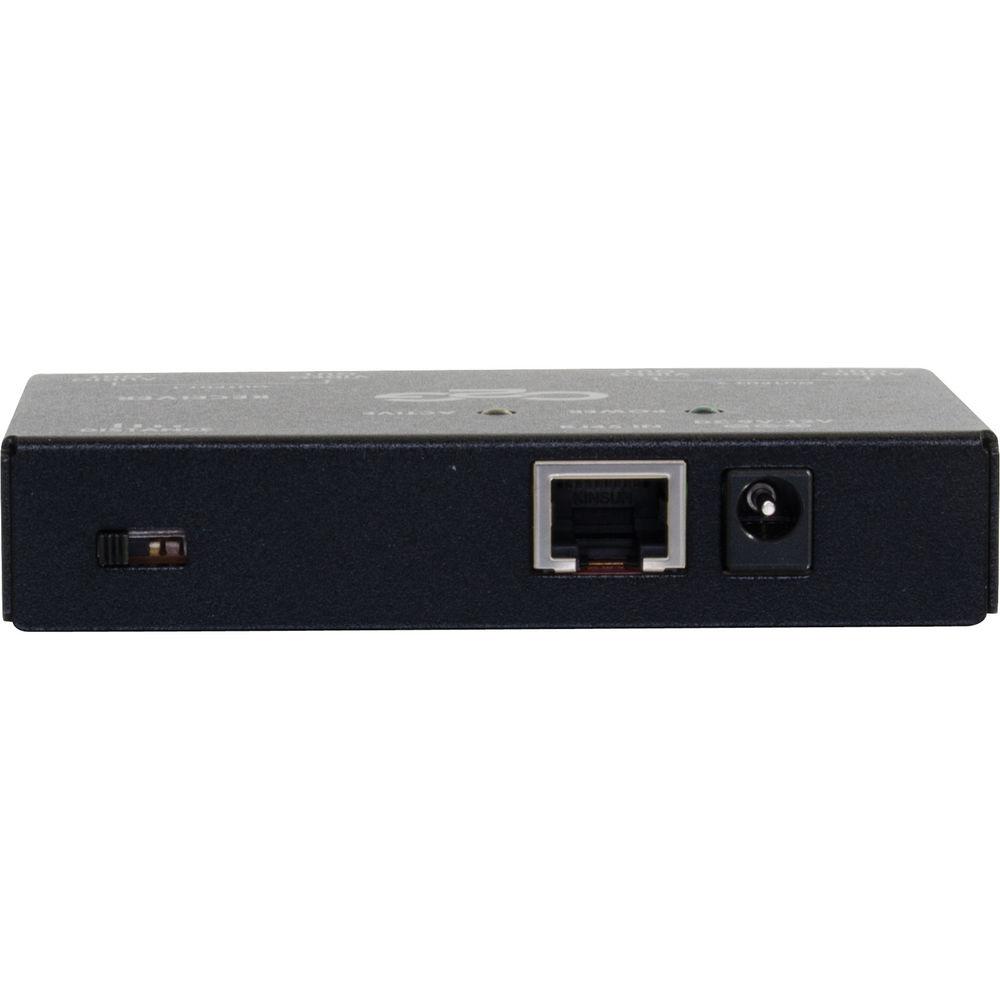

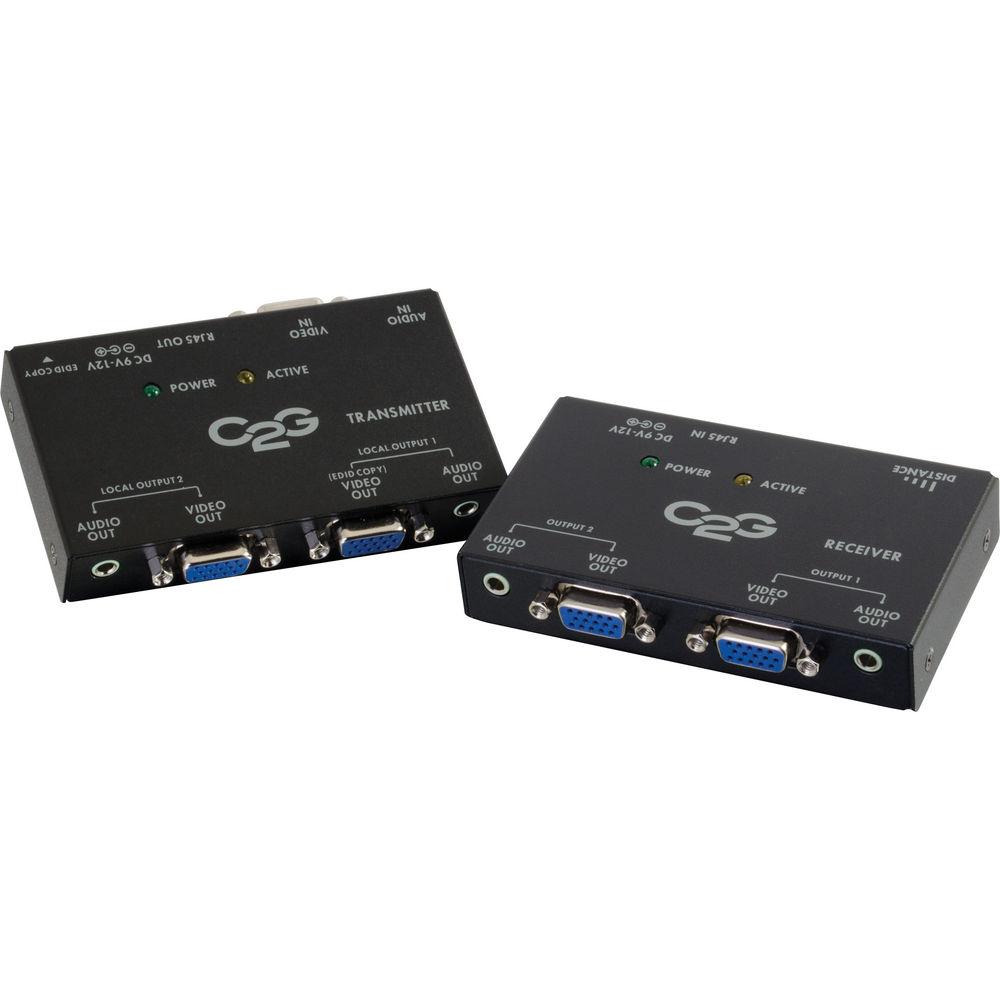

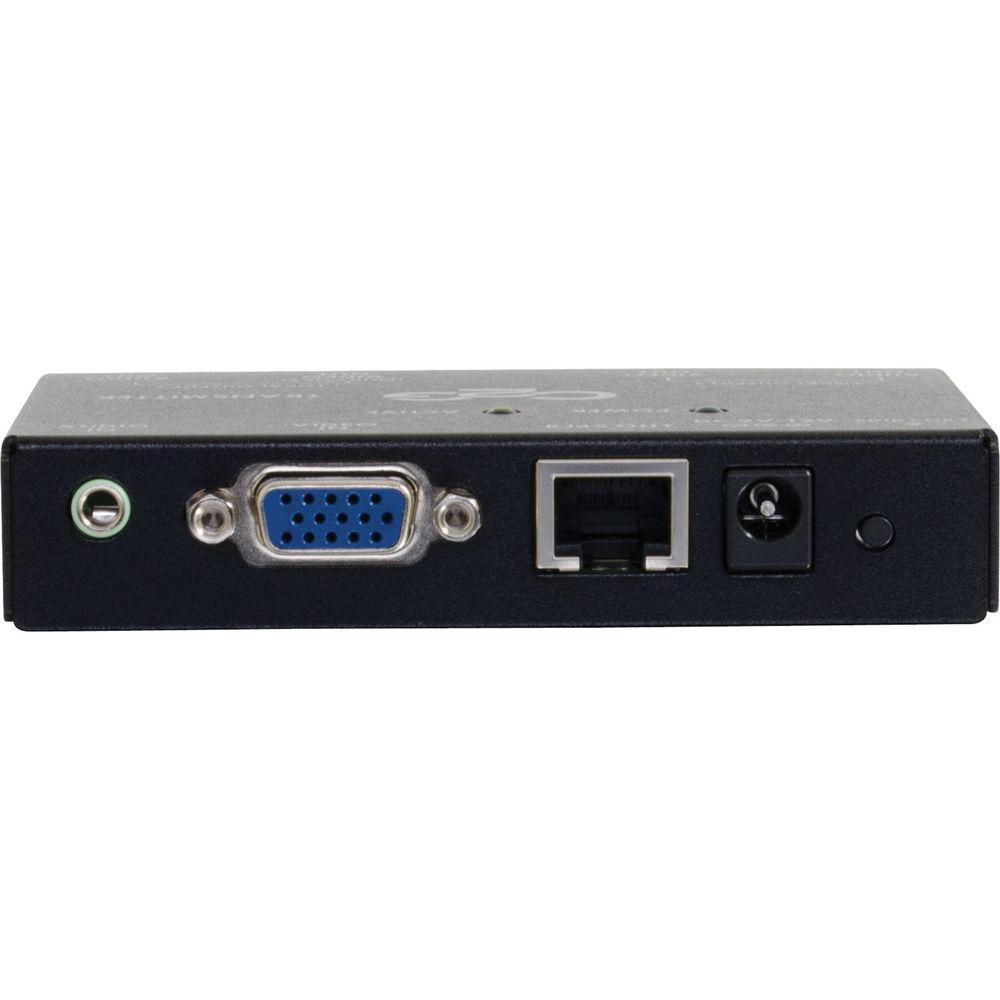

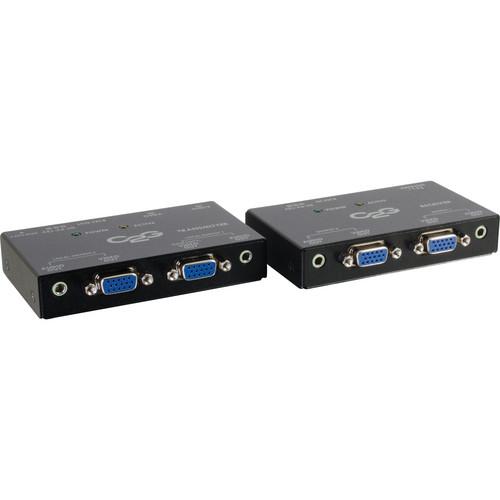

User Manual for C2G Short Range VGA & 3.5mm Audio Over Cat5 Transmitter Receiver Kit Click to enlarge the picture
Contents of the user manual for the C2G Short Range VGA & 3.5mm
- Product category: Signal Extenders C2G
- Brand: C2G
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for C2G Signal Extenders
 |
User manual for the C2G Short Range VGA & 3.5mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any C2G product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official C2G user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a C2G product will considerably shorten its lifespan!
|
Product description The black Short Range VGA & 3.5mm Audio Over Cat5 Transmitter / Receiver Kit from C2G allows you to extend VGA video and stereo audio signals over a single Cat5/Cat5e/Cat6 unshielded twisted pair cable up to 100.00’ (30.48 m) without signal degradation at a 1280 x 1024 resolution. This solution is compatible with any operating system and is truly plug and play with no drivers or software required. - Adjustable equalizer compensates for different length Cat5 cables
- Dual VGA video outputs support two monitors at the transmitter and receiver
UPC: 757120292210 In the Box C2G Short Range VGA & 3.5mm Audio Over Cat5 Transmitter / Receiver Kit (Black) 1 x Transmitter 1 x Receiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G Short Range VGA & 3.5mm Audio Over Cat5 Transmitter Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 29221 Specs | | | Video Signal | Support: VGA | | Audio Signal | Support: Stereo Audio | | Maximum Video Resolution | 1280 x 1024 | | Cable Distance | Maximum: 100.00' (30.48 m) | | Cable | Recommended Category: Cat5e or Cat6 | | | | Input Voltage | 100 to 240 V | | Output Voltage | Amperage: 12 V, 1.5 A | | Cable Length | 3.93" (100.00 mm) | | Plug | Diameter: 0.21" (5.50 mm) | | Center Pin Polarity | Positive | | | | Video Input | Port: 1 x HD15 female | | Video Output | Port: 2 x HD15 female | | Audio Input | Port: 1 x 3.5 mm female | | Audio Output | Port: 2 x 3.5 mm female | | Data Output | Port: 1 x RJ45 female | | | | Video Output | Port: 2 x HD15 female | | Audio Output | Port: 2 x 3.5 mm female | | Data Input | Port: 1 x RJ45 female | | | | Dimensions | 4.01 x 2.28 x 0.78" (101.85 x 57.91 x 19.81 mm) | | Weight | 1.62 lb (0.73 kg) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.3 x 6.1 x 1.8" |
