User Manual for C2G TruLink 2-Port UXGA Monitor Splitter Cable Click to enlarge the picture
Contents of the user manual for the C2G TruLink 2-Port UXGA Monitor Splitter
- Product category: Converters & Splitters C2G
- Brand: C2G
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for C2G Converters & Splitters
 |
User manual for the C2G TruLink 2-Port UXGA Monitor Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any C2G product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official C2G user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a C2G product will considerably shorten its lifespan!
|

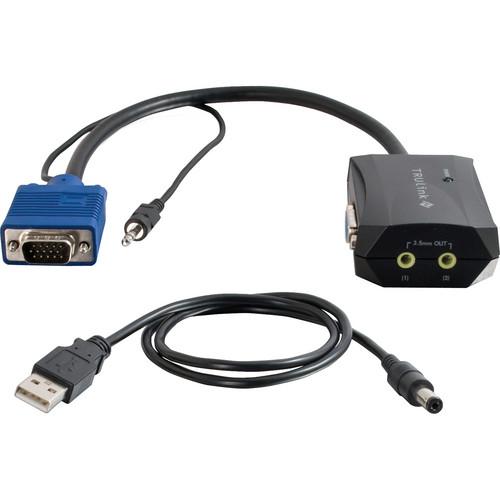

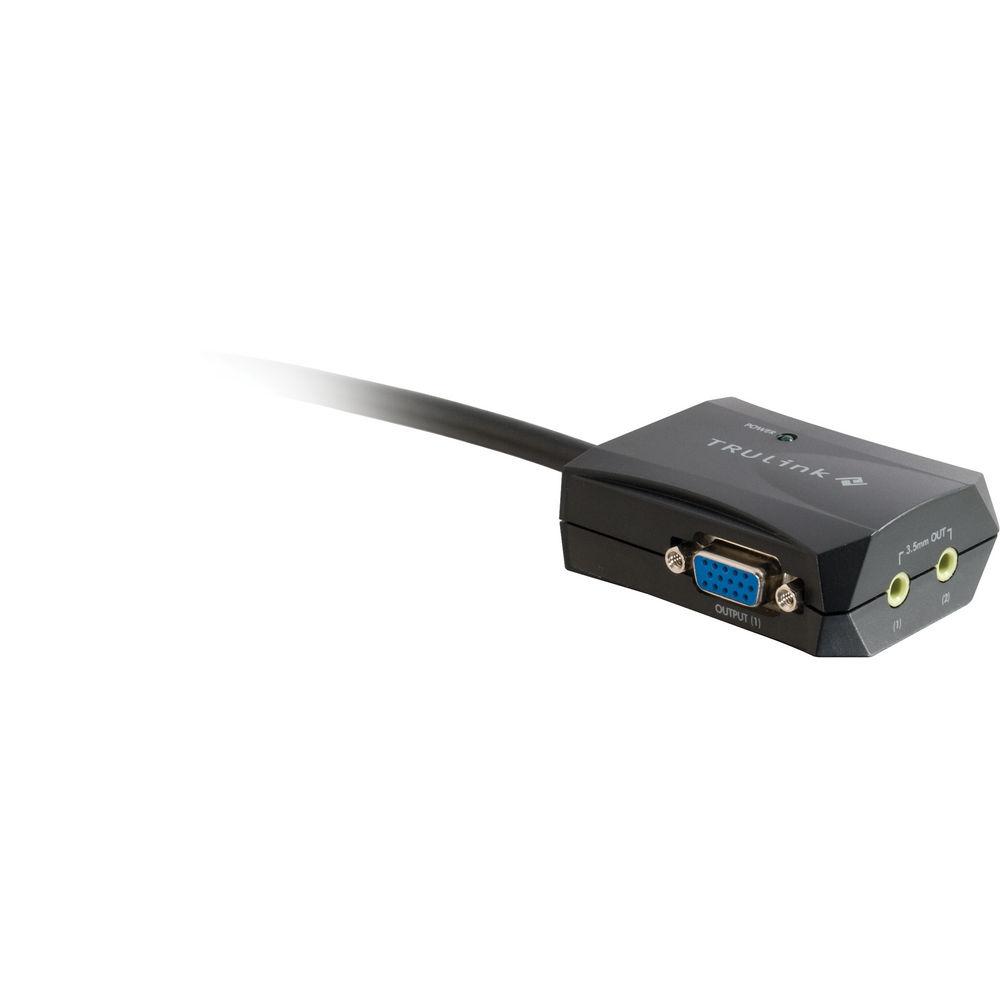

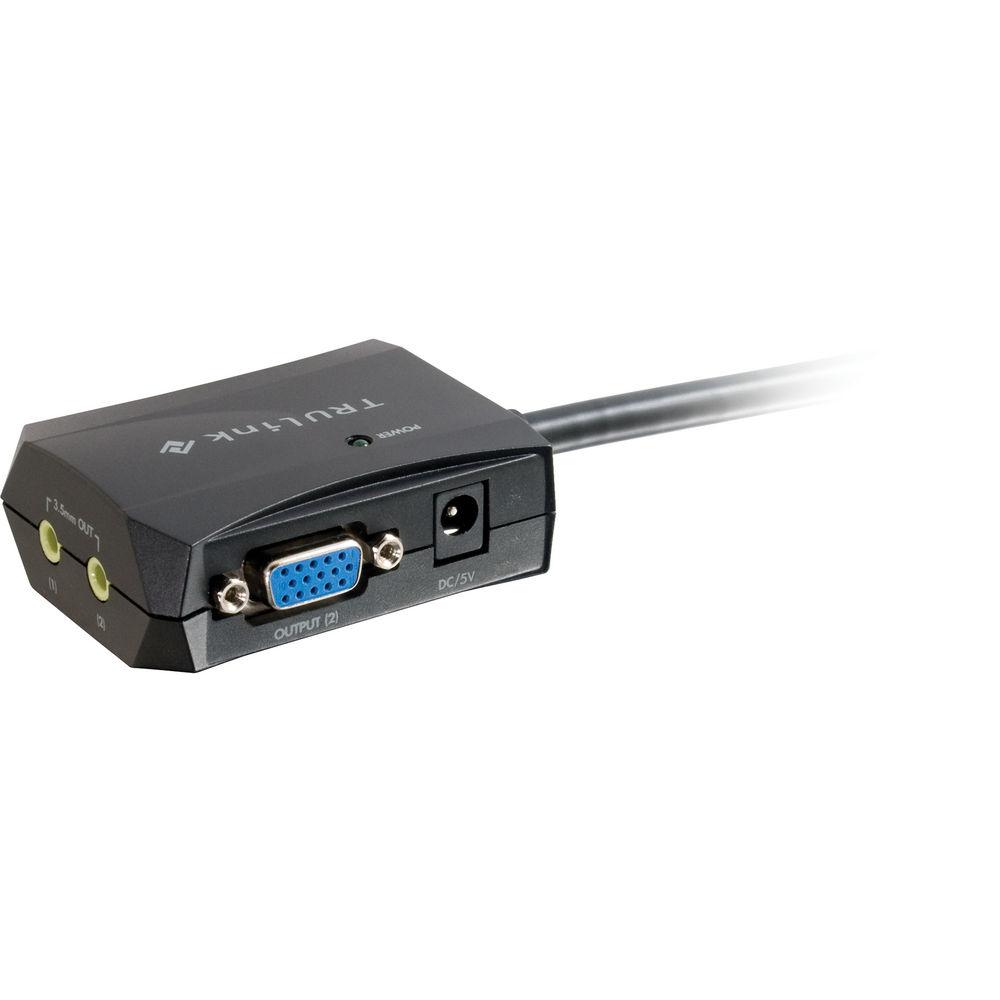

Product description The 1', black TruLink 2-Port UXGA + Monitor Splitter Cable from C2Gis an excellent solution for distributing video across two displays. You can create a simple digital signage application or use it in a conference room or classroom to broadcast computer content to multiple displays.
With integrated video signal enhancement along with audio signal, displays can be placed up to a distance of 210' (64m) from the source without sacrificing the video quality. This provides complete flexibility while ensuring the highest quality resolution. Multiple splitters can be added to expand the number of displays across larger distances.
The splitter's small cable design makes it easy to use in tight spaces or even while traveling. It is easy to use as no drivers or additional software is required for set up. The USB power adapter is included to power the splitter from your PC, thus eliminating the need for power outlets. Note: The term "extender" refers to the product's ability to extend the distance of your cable runs to 210' (64m). It does not mean the product provides "extended desktop" functionality or the ability to view different information on each of your monitors. - With the Monitor Splitter Cable you can stream a video source to two VGA monitors
- 300 MHz bandwidth maintains signal strength of up to 2048 x 1536
- Video Signal Enhancement technology strengthens video signal for transmission up to a distance of 210' (64m)
- Now expand the video splitter set-up beyond 2 displays
UPC: 757120295884 In the Box C2G TruLink 2-Port UXGA + Monitor Splitter Cable (1', Black) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G TruLink 2-Port UXGA Monitor Splitter Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 29588 Specs | | | Signal Type | VGA, SVGA, XGA, SXGA, UXGA, Multisync | | Video Bandwidth | 300 MHz | | Maximum Video Resolution | 2048 x 1536 @ 60 Hz | | Maximum Cable Length | 210' (64 m) | | Audio Support | Dual channel stereo audio | | | | Power Input | 5 V, 500 mA | | Diameter | Pin: 0.21" (5.5 mm) | | Center Pin Polarity | Positive | | | | Video Input Connector | 1 x HD15 VGA male | | Audio Input Connectors | 1 x 0.13"(3.5 mm) stereo audio male | | Audio Output Connector | 2 x 0.13"(3.5 mm)stereo audio female | | Input Cable Length | Input: VGA -11" (279.4mm),0.13" (3.5 mm)audio (29588) - 11" (279.49 mm) | | Cable Connection | USB Power: USB A male, 0.21" (5.5 mm) DC power pin | | Cable Length | USB Power: 23" (584.2mm) | | Length | 11" (279.4mm) | | Weight | 0.31 lb (0.14 kg) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 10.5 x 6.0 x 0.8" |
