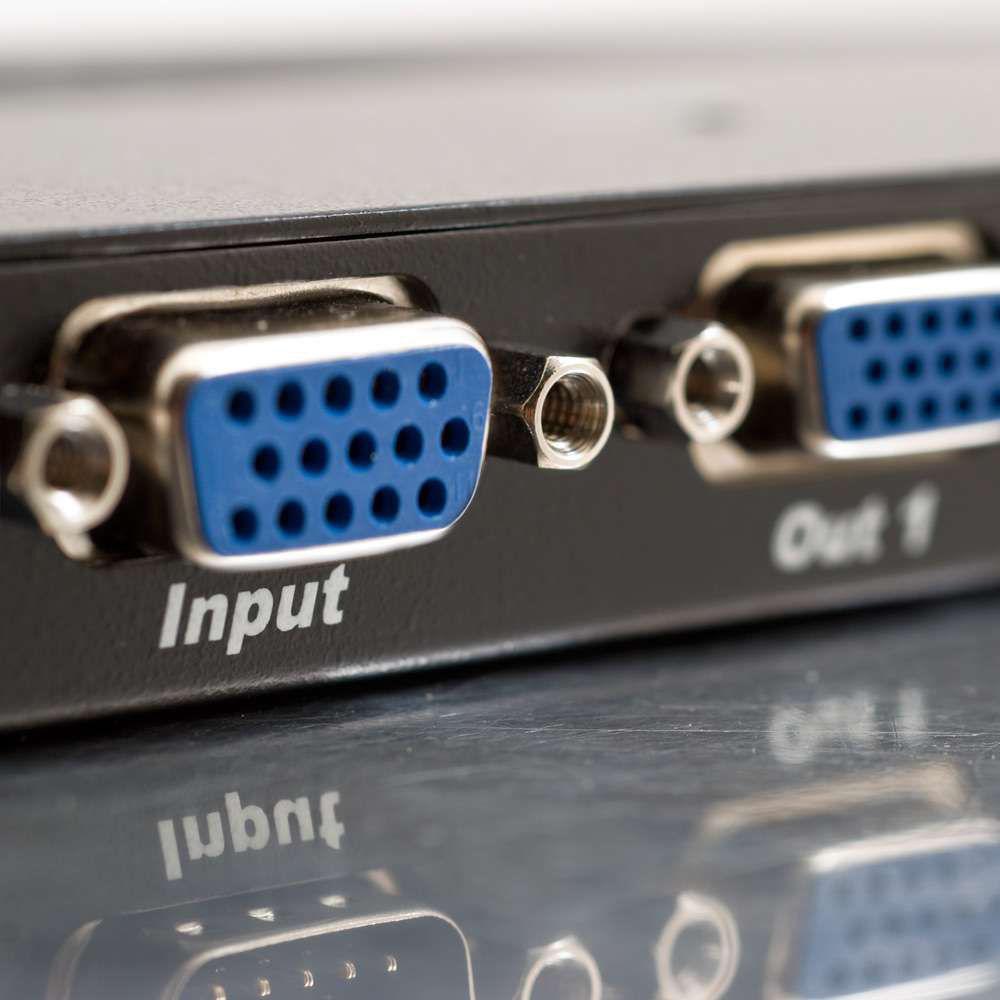

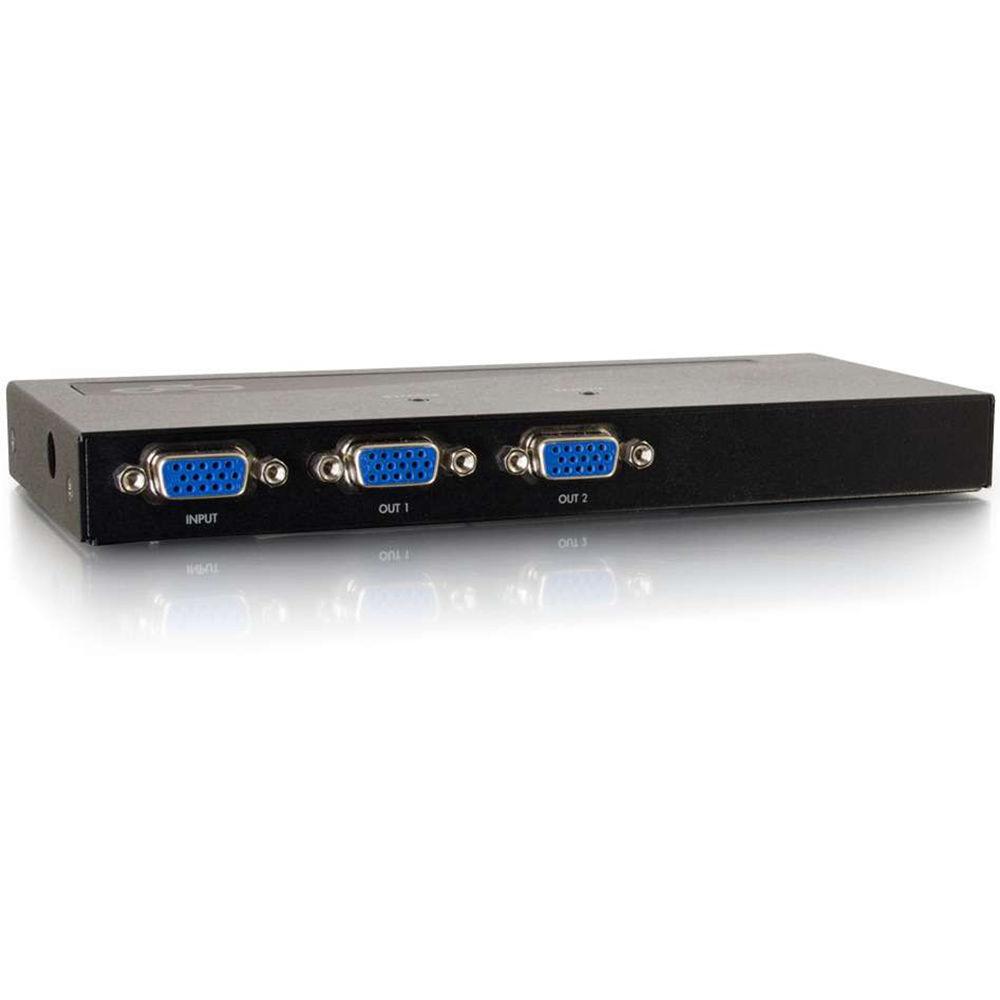

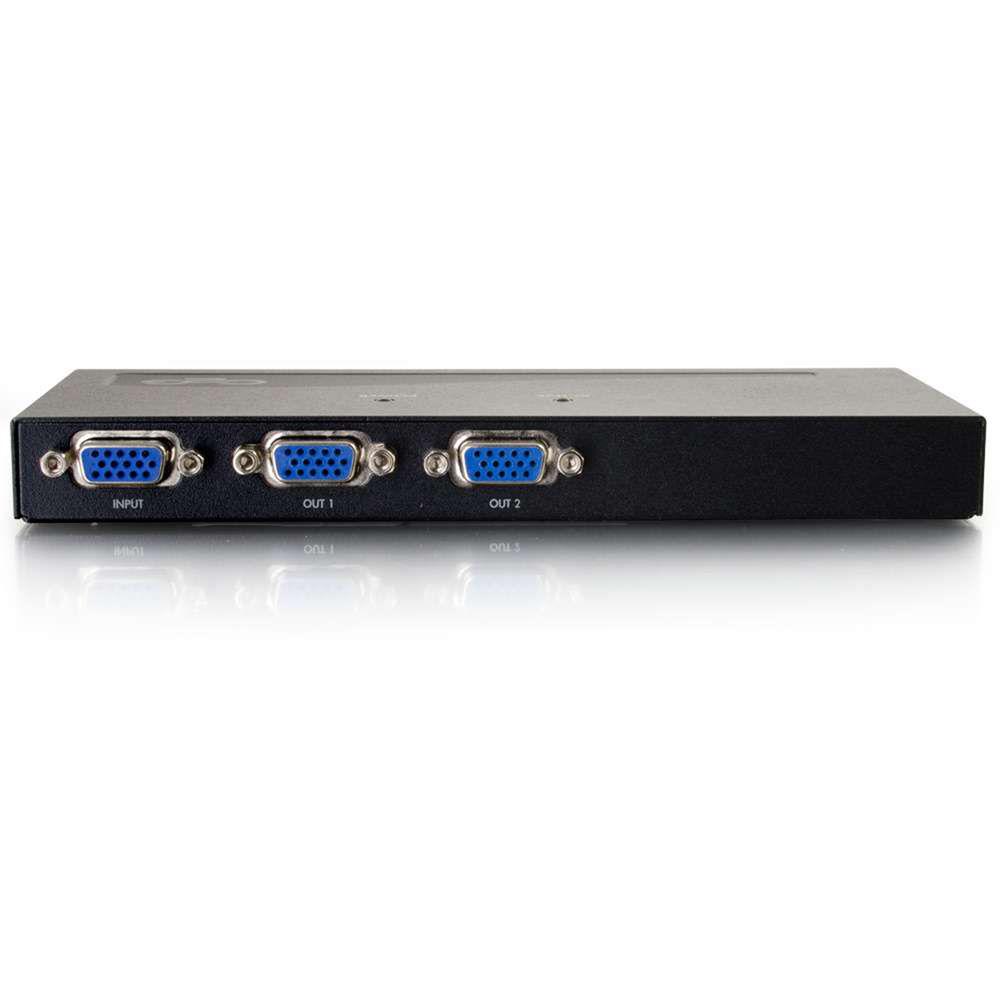

Product description The TruLink 2-Port UXGA Monitor Splitter/Extender from C2G splits a single VGA signal to mirror the same image on two VGA-equipped monitors. This splitter sports one female VGA input port and two female VGA output ports. Without installing software or interface cards, you can set it up easily and daisy-chain multiple units together to support additional displays. C2G has also designed it to extend the VGA signal up to 210' (64m) away, making it useful for signage environments.

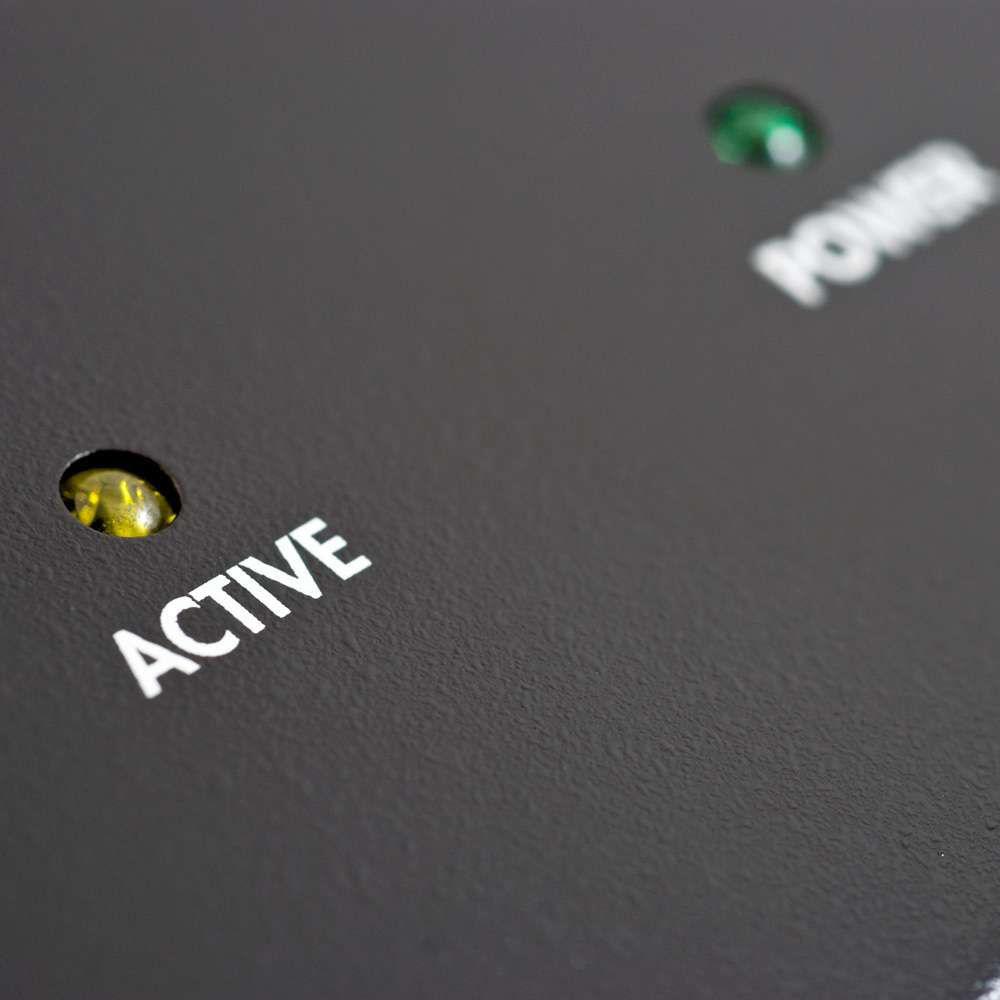

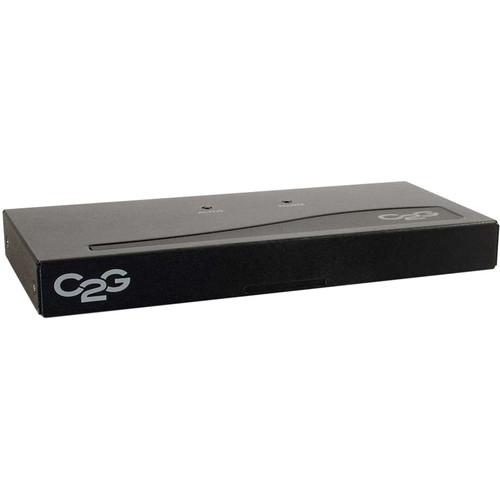

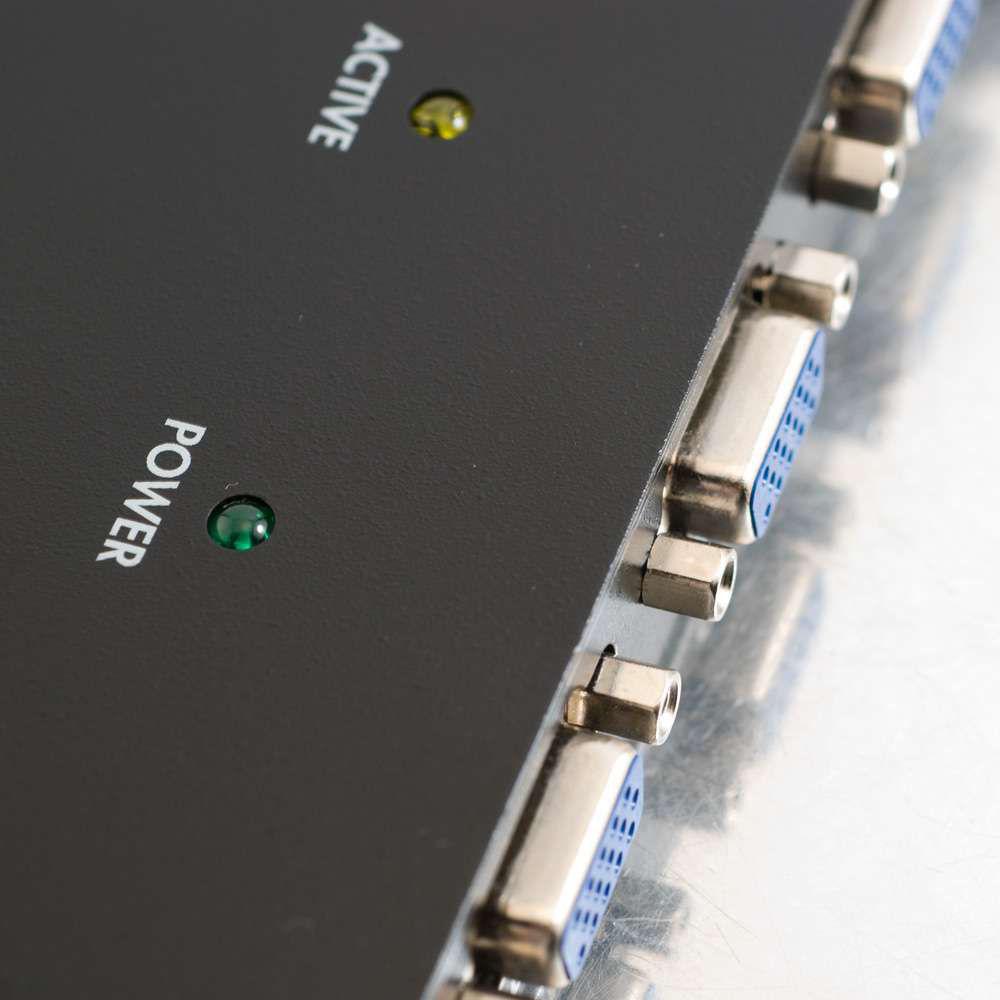

The TruLink splitter supports resolutions of up to 1920 x 1440 and is compatible with XGA, SVGA, VGA and MultiSync monitors. It is armed with an all-metal housing as well as power and activity LED indicators. Furthermore, the connectors are color coded so you can easily match the connections. - One video input and two video outputs
- Color-coded connectors for the input and outputs
- Features a 350 MHz bandwidth and can extend signals by up to 210'
- Supports all XGA, SVGA, VGA and multi-sync monitors and resolutions up to 1920 x 1440
- Daisy-chain multiple units together for even more outputs
UPC: 757120295037 In the Box C2G TruLink 2-Port VGA Monitor Splitter/Extender Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G TruLink 2-Port VGA Monitor Splitter Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 29503 Specs | Connectors | Input: 1 x 15-pin VGA female
Outputs: 2 x 15-pin VGA female | | Indicators | LED, Power
LED, Activity | | Video Specifications | Signal Types Supported: VGA, SVGA, XGA, UXGA, and MultiSync
Video Bandwidth: 350 MHz
Maximum Resolution Supported: 1920 x 1440 at 80 Hz | | Maximum Cable Length Supported | 210' / 64 m | | Adapter Specifications | Power Input: 100 to 240 VAC, 50/60 Hz
Power Output: 9 VAC, 600 mA
Pin Diameter: 5.5 mm
Center Pin Polarity: Positive | | Minimum Requirements | System with a 15-pin VGA video card
male to male 15-pin VGA cable (to connect the splitter to a computer)
male to male 15-pin VGA cables (to connect the splitter to the monitors)
Each cable must have UXGA resolution to deliver the true potential resolution of this splitter. | | Material of Construction | Metal | | Dimensions | 7.3 x 0.8 x 3.3" / 184.2 x 19.1 x 82.6 mm | | Weight | 2.1 lb / 1 kg | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 11.7 x 8.4 x 2.5" |
