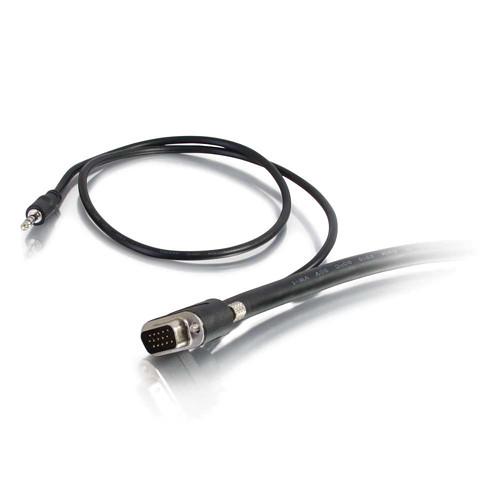

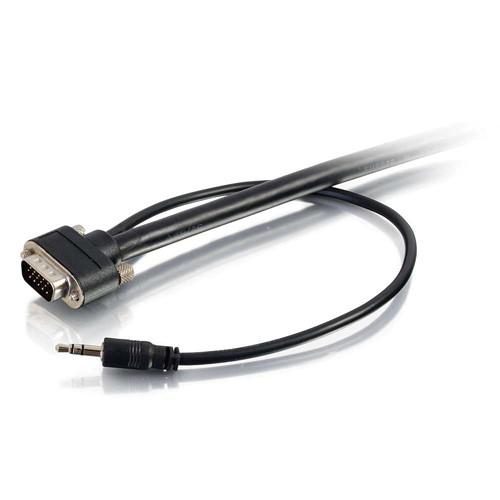

Product description The 6', black VGA + 3.5mm Stereo Audio Male to Male Cable from C2G is perfect for source to display connectivity for in-home desktop or in-wall commercial applications that require video resolutions of up to QXGA (2048 x 1536) and support for stereo audio. The CMG rated jacket provides a solution for in-wall applications, while the low-profile, rounded connectors facilitate easy installation in compact spaces, such as a projector mount pole. This cable is designed to support high resolution video applications. The 3.5mm audio pigtail on the source side of the cable extends 24.0" (60.9cm) away from the VGA connector. This allows for audio connectivity on laptops or other computer platforms where the VGA video output and 3.5mm audio output are commonly placed on opposite sides. The 3.5mm audio pigtail on the display side of the cable extends 10.0" (25.4cm) away from the VGA connector, providing easy connectivity without excess cabling. The wired 15-pins provide support for DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals, ensuring that the content from the source is sent at the optimal resolution for the display. - Supports high resolution video of up to QXGA (2048 x 1536) for monitor connections with support for audio
- The 3.5mm audio pigtail on the source/display side of the cable extends 24.0" (60.9cm)/10.0" (25.4cm) away from the VGA connector
- The wired 15-pins provide support for DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals, ensuring that the content from the source is sent at the optimal resolution for the display
UPC: 757120502258 In the Box C2G VGA + 3.5mm Stereo Audio Male to Male Cable (6', Black) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the C2G VGA 3.5mm Stereo Audio Male to Male Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersC2G 50225 Specs | Maximum Resolution | 2048 x 1536 | | Connector 1 | 1 x VGA 15-pin HD male
1 x 3.5mm stereo male | | Connector 2 | 1 x VGA 15-pin HD male
1 x 3.5mm stereo male | | Connector Plating | Nickel | | Housing | Black PBT | | Impedance | 75 ± 5 Ω | | Capacitance | 58 pF/m | | Resistance | Conductor: At 68°F (20°C): 30 AWG: 376.96 Ω/km, 28 AWG: 237.25 Ω/km, 24 AWG: 98.25 Ω/km
Insulation: At 68°F (20°C): 10 M Ω/km, DC 500V | | Dielectric Strength | AC 500 V/1 minute | | Voltage Rating | 30 V | | Minimum Bend Radius | 3.3" (85.0 mm) | | Breakout Length | 3.5 mm: Source: 24.0" (609.6 mm), Display: 10.0" (254.0 mm) | | Conductor | ⦁3 conductors
Conductor Type: 30 AWG (7/0.127) (tinned copper(OFC))
Shield: Aluminum foil (100% coverage)
Drain Wire: 26 AWG (7/0.20) (tinned copper)
Insulation: Foamed PE
Covering: PVC
⦁9 Conductors
Conductor Type: 28 AWG (7/0.20) (tinned copper(OFC))
Insulation: SR-PVC
⦁2 Conductors
Conductor Type: 24 AWG (7/0.20) (tinned copper(OFC))
Shield: Aluminum foil (100% coverage)
Drain Wire: 24 AWG (7/0.20) (tinned copper)
Insulation: Foamed PE
Covering: PVC | | Length | 6.0' (1.8 m) | | Construction | Cable: Drain Wire: 26 AWG (7/0.20) (tinned copper(OFC))
Foil Shield: Aluminum foil (100% coverage)
Braided Shield: 16/7/0.12 ± 0.008 mm (tinned copper(OFC)) (85% coverage)
Jacket: CMG | | Dimensions | VGA Connector: 0.5 x 1.2 x 1.3" (13.1 x 31.2 x 34.0 mm) | | Weight | 8.89 oz (252.19 g) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 9.5 x 4.9 x 0.6" |
