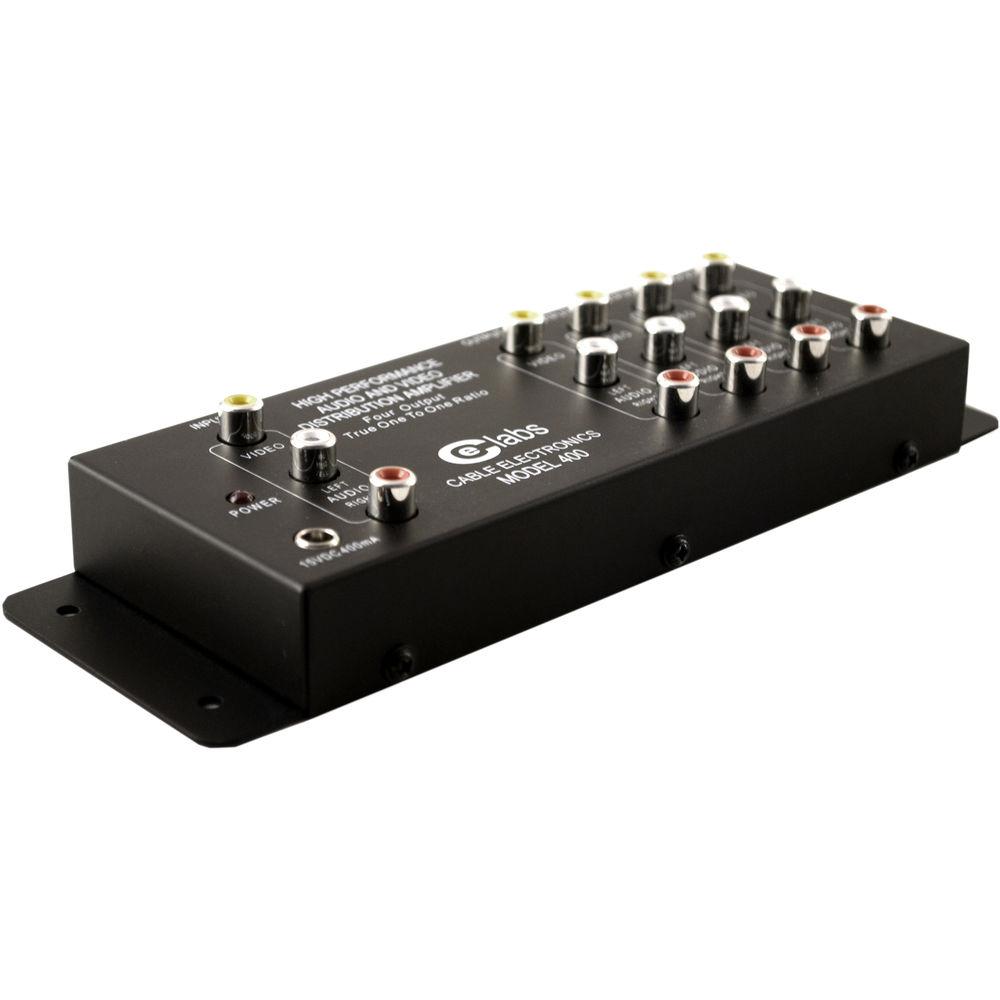

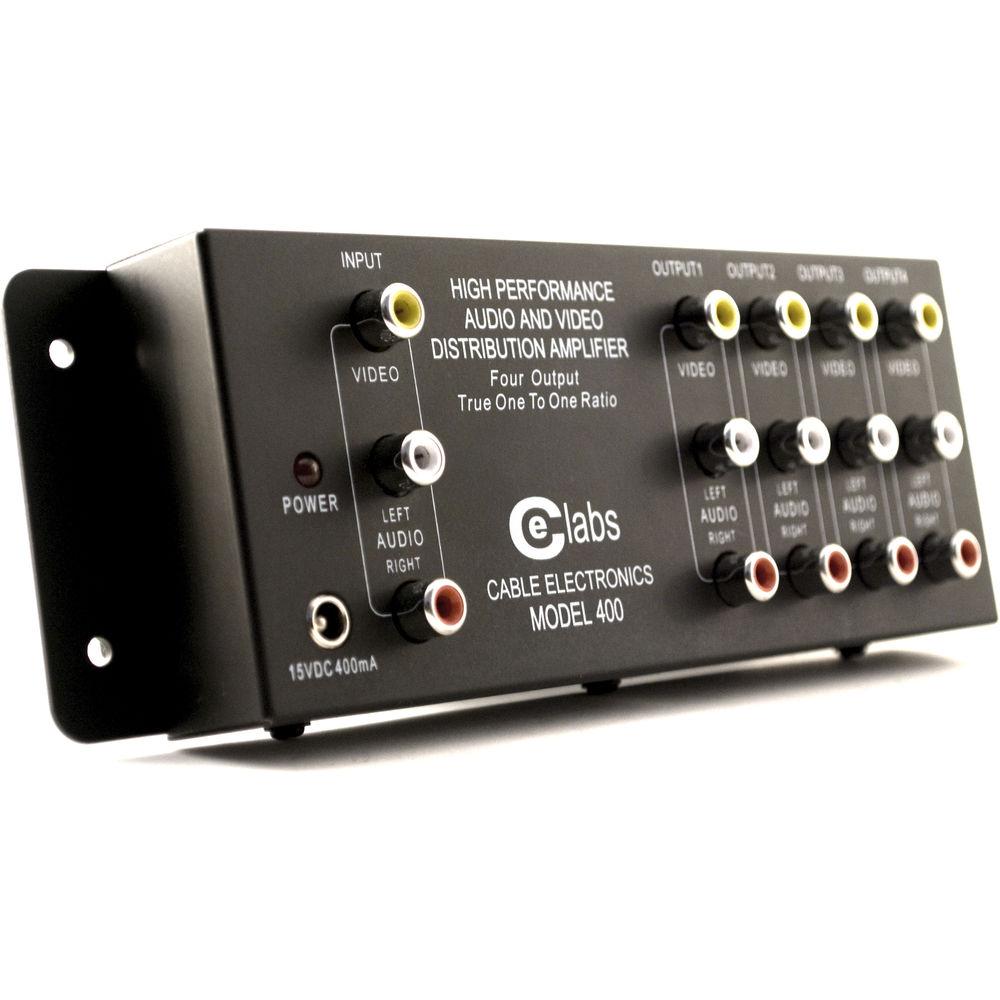

Product description The AV400 1x4 Composite A/V Distribution Amplifier from Cable Electronics is an amplifier that distributes analog audio and video to four TV monitors without signal loss. The AV400 can be looped, cascaded, or put in tandem without any signal loss. It is recommended to use high-grade audio and video cables. The amplifier has a maximum distance of up to 100' between similar units, and up to 150' between units and TV sets. - Daisy chains several units for larger displays
- Compatible with all HDTV component video signals
- Heavy-duty metal housing provides shielding
- Allows up to 150' runs between units and TVs
UPC: 617190001078 In the Box Cable Electronics AV400 1x4 Composite A/V Distribution Amplifier Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cable Electronics AV400 1x4 Composite A V Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCable Electronics CEL-AV400 Specs | | | Gain | One volt into 75 Ohms
Two volts undetermined | | Input Impedance | 75 Ohms @ ±5% | | Response | 50 Hz - 10 MHz < 0.4 dB | | Isolation | Channel: 50 Hz - 10 MHz @ 32 dB
Output to Input: 50 Hz - 10 MHz @ 60 dB | | Return Loss | 50 Hz - 10 MHz @ 20 dB | | | | Gain | Unity | | Impedance | 22 kOhms, input
100 Ohms, output | | Total Harmonic Distortion | 0.05% @ 1 V Input level | | Frequency Response | 10 Hz - 50 kHz @ 1 dB | | Channel Separation | Less than 75 dB @ 1 kHz | | A/V Inputs/Outputs (RCA) | Video: Composite (yellow)
Audio: Dual stereo (white/red) | | | | Power Requirements | 15 VDC @ 400 mA | | Dimensions | 8.4 x 2.8 x 1.3" (21.3 x 7.1 x 3.3 cm) | | Weight | 2 lb (0.9 kg) | | | | Package Weight | 1.84 lb | | Box Dimensions (LxWxH) | 15.35 x 4.65 x 2.5" |
