User Manual for Cable Techniques Bud II Battery Distribution System SR Kit Click to enlarge the picture
Contents of the user manual for the Cable Techniques Bud II Battery Distribution
- Product category: Battery Power & Distribution Cable Techniques
- Brand: Cable Techniques
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cable Techniques Battery Power & Distribution
 |
User manual for the Cable Techniques Bud II Battery Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cable Techniques product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cable Techniques user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cable Techniques product will considerably shorten its lifespan!
|

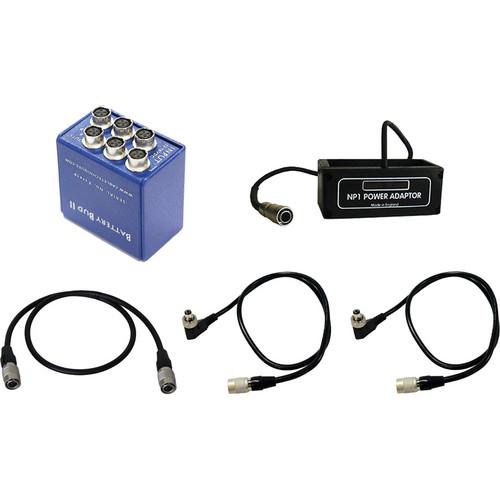

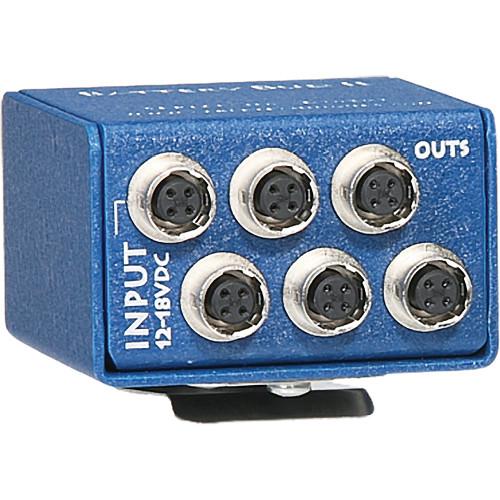

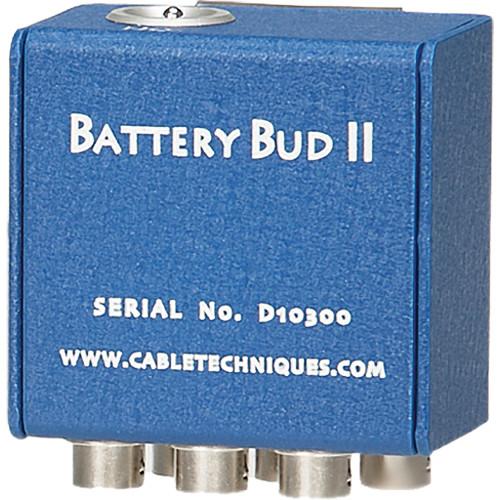

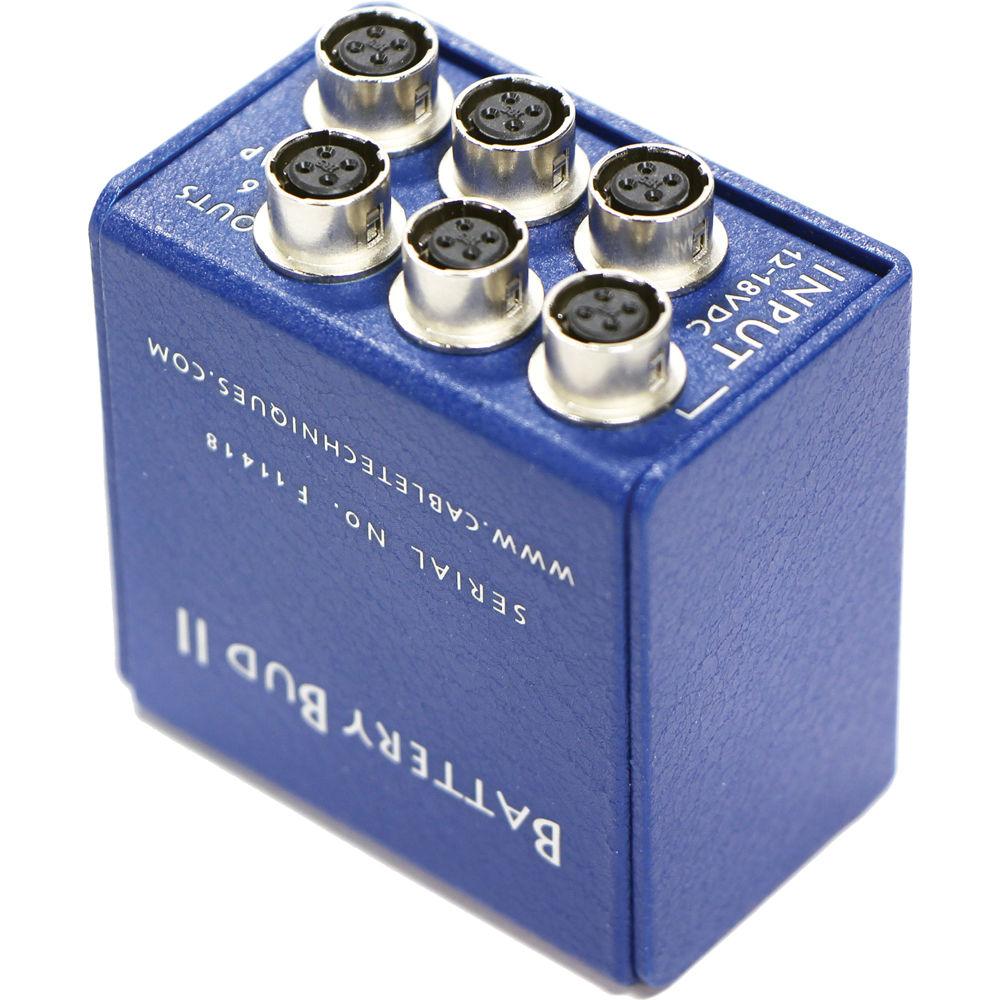

Product description The Cable Techniques Bud II Battery Distribution System SR Kit is designed for connecting the Cable Techniques Battery Bud II Portable DC Power Distribution Box to a variety of different audio devices. The kit consists of the Bud II distribution box, an NP-1 Battery cap input and cable for connecting a rechargeable battery, a BB-SDMX-18 18" Hirose to Hirose power output cable, and two BB-SR-24/1 24" Hirose right angle power output cables, each capable of powering a receiver. - Battery Bud II Portable DC Power Distribution Box The Battery Bud II from Cable Techniques is a lightweight and portable DC power distribution box that allows you to power multiple devices from a single battery or power source. The Battery Bud II accepts 12-18VDC power and uses standard 4-pin Hirose connectors. It offers a single power input and 5 outputs, all of which are on the bottom of the unit for seamless bag integration. An internal 6A electronic auto-resetting breaker prevents damage due to overload. A recessed power switch makes it easy to have a "master" switch for your whole bag of gear. The Battery Bud II has a lightweight metal construction with a removable belt clip and a durable powder coat finish.
- Lightweight and compact design, ideal for field use
- Accepts 12-18VDC power and uses standard 4-pin Hirose connectors
- Single power input and 5 outputs, all of which are on the bottom of the unit for seamless bag integration
- Internal 6A electronic auto-resetting breaker prevents damage due to overload
- Recessed power switch makes it easy to have a "master" switch for your whole bag of gear
- Metal construction with a removable belt clip and a durable powder coat finish

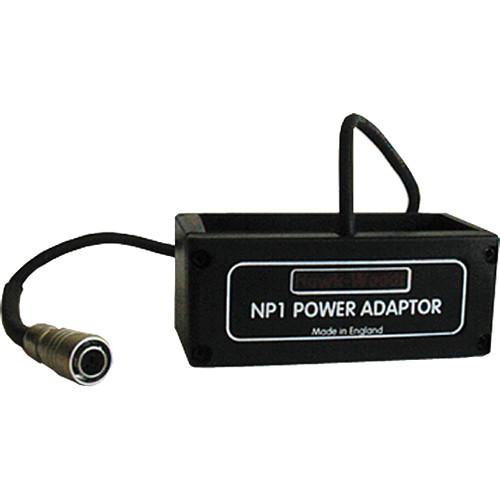

- BB-NP - 15" NP-1 Cap to Hirose 4 Battery Bud Cable This is an NP-1 Cap to Hirose 4 adaptor with a 15" input cable for use with the Cable Techniques Battery Bud distributor.

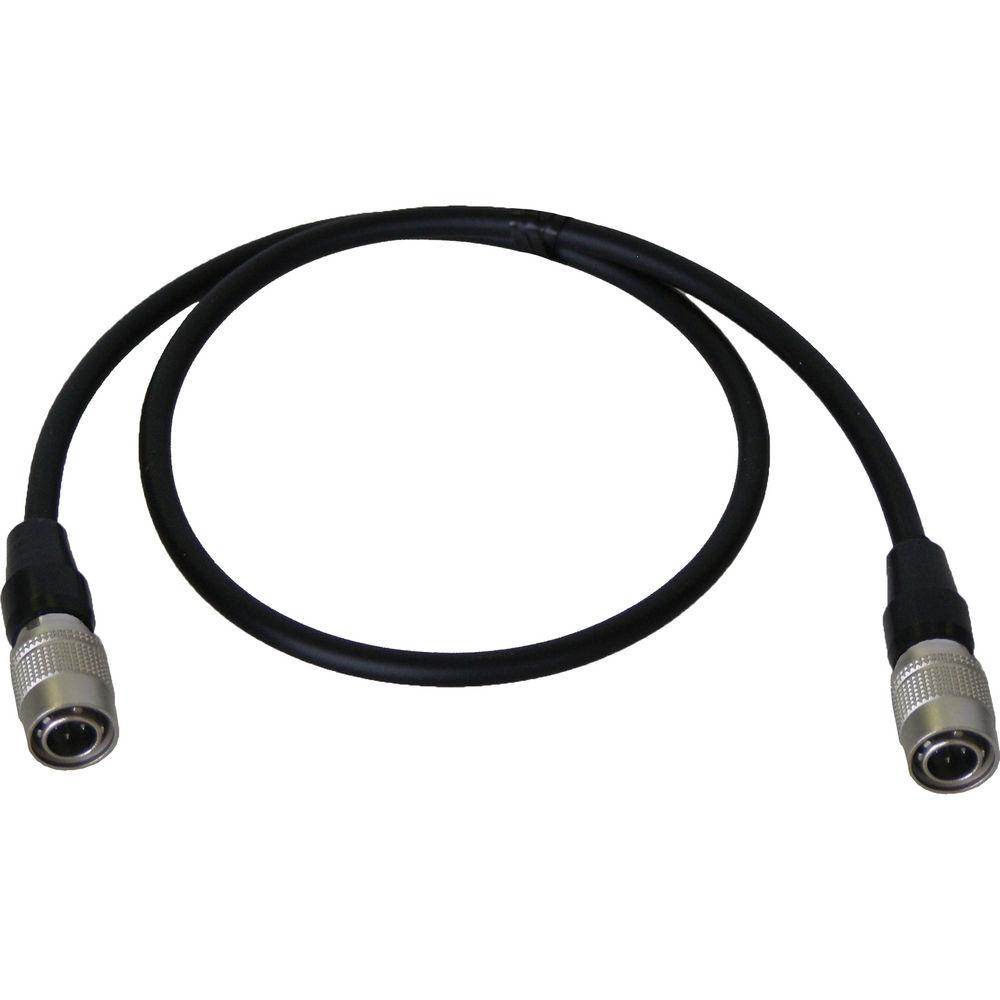

- BB-SDMX-18 - Hirose to Hirose 4-Pin Power Cable (18") The BB-SDMX-18 from Cable Techniques is a power cable designed for use with Sound Devices 664, 633, MixPre and 442, 302, 552, 744T, 722, 702, 702T, 788T, PIX 240/220, SQN, PSC ProMix 6, M4 mk2, M3 and AlphaMix, Wendt X5 and X3, Lectrosonics Quadpack, Zaxcom Nomad and Maxx, and Sennheiser EK3041/3241 with GA 3041-C

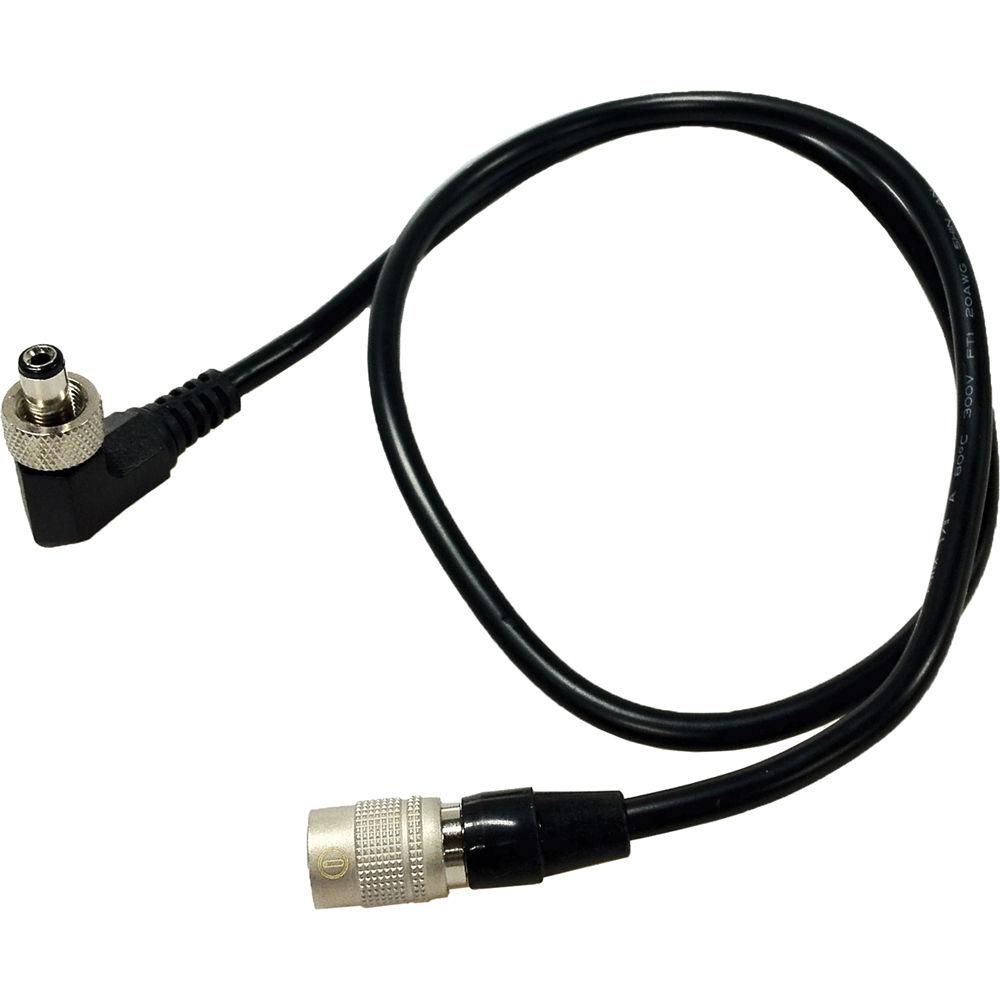

- BB-SR-24/1 Output Cable (24" / 609.6mm) The Cable Techniques BB-SR-24/1 Output Cable (24" / 609.6mm) from Redding Audio is designed for use with Lectrosonics SR receivers and SMBATELIM battery eliminators.
- Compatible with Lectrosonics SR receivers
In the Box Bundle Items Battery Bud II Portable DC Power Distribution Box yufzvwcerqvyatzcu BB-NP - 15" NP-1 Cap to Hirose 4 Battery Bud Cable BB-SDMX-18 - Hirose to Hirose 4-Pin Power Cable (18") 2 x BB-SR-24/1 Output Cable (24" / 609.6mm) Table of Contents
|
Upload User Manual
Have you got an user manual for the Cable Techniques Bud II Battery Distribution System SR Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Battery Bud II Portable DC Power Distribution Box
| Connectors | 1 x 4-Pin Hirose Input
5 x 4-Pin Hirose Outputs | | Power | 12-18VDC | | Dimensions (HxWxD) | 2 x 2 x 1.25" (51 x 51 x 32mm) | | Weight | 2.9 oz (82g) | | | | Box Dimensions (LxWxH) | 6.3 x 4.55 x 1.8" | - BB-NP - 15" NP-1 Cap to Hirose 4 Battery Bud Cable
| | | Box Dimensions (LxWxH) | 3.0 x 1.5 x 1.5" | - BB-SDMX-18 - Hirose to Hirose 4-Pin Power Cable (18")
| Connectors | 2 x Hirose | | Length | 18" (457mm) | | | | Box Dimensions (LxWxH) | 5.35 x 4.7 x 0.6" | - BB-SR-24/1 Output Cable (24" / 609.6mm)
| Connectors | Hirose 4-pin male to right angle locking coaxial barrel | | Compatibility | Lectrosonics SR receivers (not in camera slot) & SMBATELIM battery eliminators | | Length | 24" (609.6 mm) | | | | Box Dimensions (LxWxH) | 6.1 x 4.3 x 0.3" |
