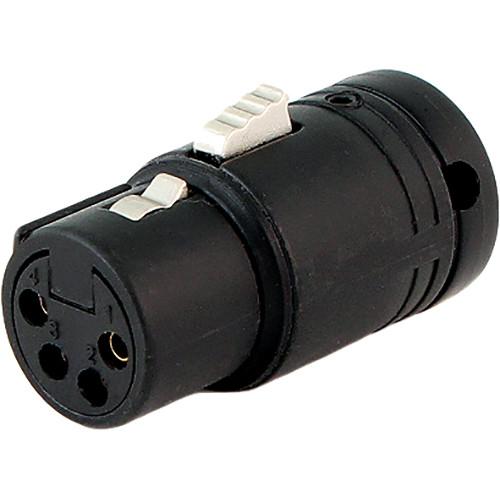

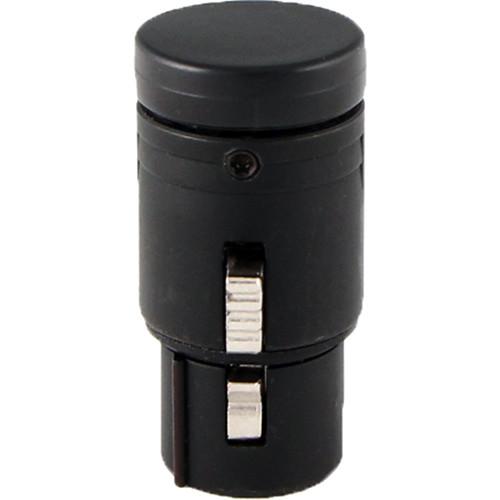

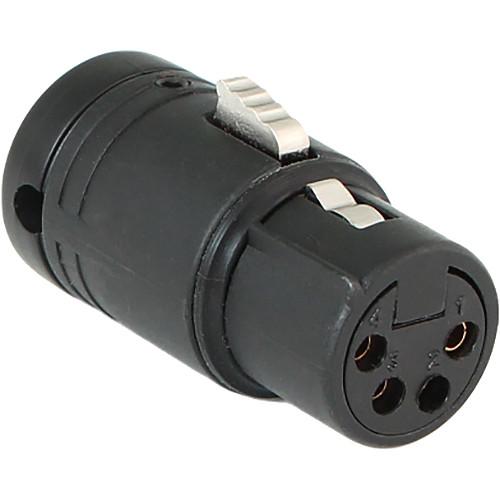

Product description The black Cable Techniques Low-Profile XLR4F Connector with Adjustable Side Cable-Exit is a space-saving connector designed to be attached to a DC power cable for use with portable noise suppressors and power modules in ENG, field recording, and television production. It features an XLR 4-pin female end with gold contacts and a low-profile design, which protrudes only 25mm when connected. The adjustable side cable-exit accepts cable diameters up to 3.8mm. -
- Ideal for DC power cable assemblies
- Space-saving, low-profile connector protrudes only 25mm when connected
- XLR 4-pin female end with gold contacts

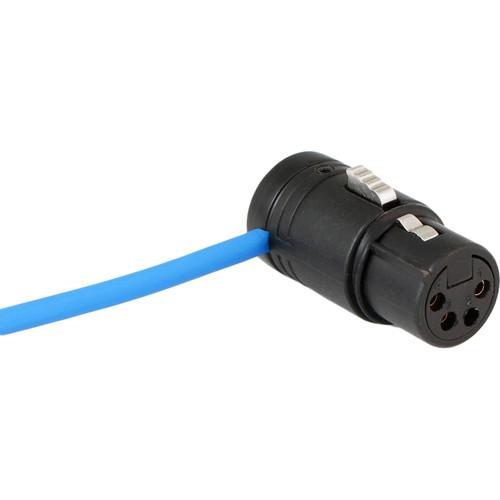

- Side cable-exit with adjustable angle
- Accepts cable diameters up to 3.8mm
In the Box Cable Techniques Low-Profile XLR4F Connector with Adjustable Side Cable-Exit (Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cable Techniques Low-Profile XLR4F Connector with Adjustable Side Cable-Exit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCable Techniques CT-LPXLR-4F-K Specs | Connector | Low-profile XLR 4-pin female
Gold contacts | | Cable Outlet | 0.1" / 3.8 mm | | Angle Adjustment Range | 30 to 150°
210 to 330° | | Dimensions (L x W) | 1.5 x 0.7" / 37 x 18 mm | | Weight | 0.8 oz / 22.7 g | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 5.78 x 3.78 x 0.01" |
