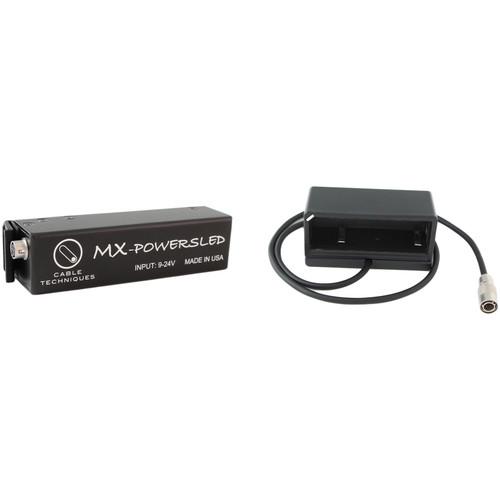

User Manual for Cable Techniques MX-POWERSLED Kit with 15" NP-1 Cap to Hirose 4 Battery Bud Input Cable Click to enlarge the picture
Contents of the user manual for the Cable Techniques MX-POWERSLED Kit with 15"
- Product category: Battery Power & Distribution Cable Techniques
- Brand: Cable Techniques
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cable Techniques Battery Power & Distribution
|
User manual for the Cable Techniques MX-POWERSLED Kit with 15" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cable Techniques product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cable Techniques user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cable Techniques product will considerably shorten its lifespan!
|
Product description This B&H Kit combines the Cable Techniques MX-POWERSLED with a 15" NP-1 Cap to Hirose 4 Battery Bud Input Cable to provide a professional power solution for a Sound Devices MixPre-3 or MixPre-6 field recorder. - Cable Techniques MX-POWERSLED for Sound Devices MixPre-3 And MixPre-6 The Cable Techniques MX-POWERSLED is designed for use with the Sound Devices MixPre-3 and MixPre-6 field recorders. It sports a Hirose 4-pin connector that attaches to the devices, supplying 7.2V to the recorder once it is connected, and accepting a DC input range of 9 to 24V from compatible, rechargeable batteries such as Li-ion NP-1 or smart batteries. As such, this device obviates the need for AA batteries and battery sleds, as well as the need for USB power. The former can often cost more money in the long run, while the latter doesn’t necessarily provide a secure enough connection for moving about in the field— obviously, no one wants to lose power in the middle of a shoot. Lightweight at 3.2 oz, the MX-POWERSLED can integrate into DC distribution systems, and can complement a bag rig replete with recorders, wireless receivers, and more, all powered by a single host.
- Key Features at a Glance
-
- For Sound Devices MixPre-3 and MixPre-6
- Hirose 4-pin DC connection
- Battery Eliminator supplies regulated DC
- Integrates into battery-distribution systems
- A more secure locking connection compared to USB
- Easy "on and off" to access SD Card
- Durable aluminum housing suitable for field recording
- Powder-coated with laser-engraved markings
- Cable Techniques BB-NP - 15" NP-1 Cap to Hirose 4 Battery Bud Cable This is an NP-1 Cap to Hirose 4 adaptor with a 15" input cable for use with the Cable Techniques Battery Bud distributor.
In the Box - MX-POWERSLED for Sound Devices MixPre-3 And MixPre-6 fderctrewbavyuydr
- Limited 1-Year Warranty
- BB-NP - 15" NP-1 Cap to Hirose 4 Battery Bud Input Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the Cable Techniques MX-POWERSLED Kit with 15" NP-1 Cap to Hirose 4 Battery Bud Input Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Cable Techniques MX-POWERSLED for Sound Devices MixPre-3 And MixPre-6
| Battery DC Input Range | 9 to 24 VDC | | Regulated Output Voltage | 7.2 V to MixPre | | Current Draw | 370 mA at 12 V | | Fused | At 4 A | | Connection | Hirose (pin-4 positive, pin-1 negative) | | Dimensions | 5.0 x 1.3 x 1.5" / 12.7 x 3.2 x 3.8 cm | | Weight | 3.2 oz / 90.0 g | | | | Box Dimensions (LxWxH) | 6.9 x 4.5 x 1.3" | - Cable Techniques BB-NP - 15" NP-1 Cap to Hirose 4 Battery Bud Cable
| | | Box Dimensions (LxWxH) | 3.0 x 1.5 x 1.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
