User Manual for Cable Techniques TA3F to TA5F Blue & Red Cable Kit Click to enlarge the picture
Contents of the user manual for the Cable Techniques TA3F to TA5F Blue
- Product category: Cables & Adapters Cable Techniques
- Brand: Cable Techniques
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cable Techniques Cables & Adapters
 |
User manual for the Cable Techniques TA3F to TA5F Blue contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cable Techniques product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cable Techniques user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cable Techniques product will considerably shorten its lifespan!
|

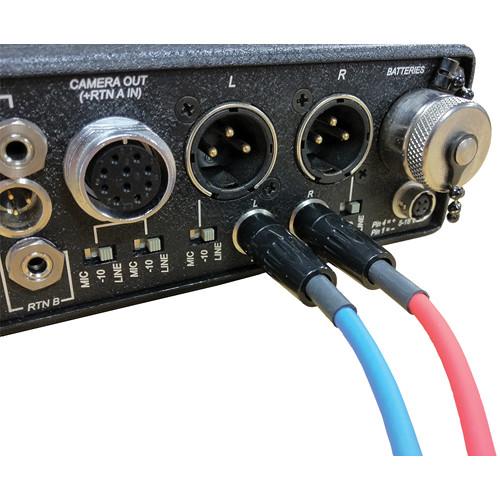

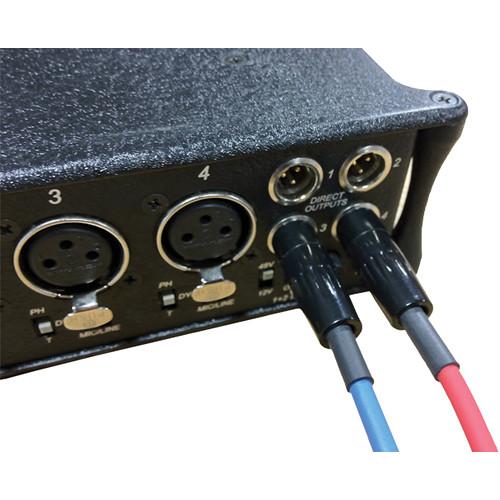

Product description The Cable Kit from Cable Techniques includes a TA3F to TA5F 24" red cable, and a TA3F to TA5F 24" blue cable. - CT-PCL-24B Balanced TA3F to TA5F Transmitter Links Cable (24", Blue) The blue 24" Cable Techniques CT-PCL-24B Balanced TA3F to TA5F Transmitter Links Cable is designed using a Canare GS-4 cable to send audio to a Lectrosonics transmitter via the L/R TA3M line level balanced connections on the Sound Devices 552 mixer. These outputs are often used as wireless camera links from a boom-op on location. It can also be used for the TA3 analog balanced line outputs 1-4 on a 788T.
- For input into Lectrosonics legacy or servo-bias input transmitters with a TA5 connection
- Sends Line level balanced TA3 output on 664, 633, 688, 552 mixers and 788T into Lectrosonics Transmitters at -45 dB
- CT-PCL-24R Balanced TA3F to TA5F Transmitter Links Cable (24", Red) The red 24" Cable Techniques CT-PCL-24R Balanced TA3F to TA5F Transmitter Links Cable is designed using a Canare GS-4 cable to send audio to a Lectrosonics transmitter via the L/R TA3M line level balanced connections on the Sound Devices 552 mixer. These outputs are often used as wireless camera links from a boom-op on location. It can also be used for the TA3 analog balanced line outputs 1-4 on a 788T.
- For input into Lectrosonics legacy or servo-bias input transmitters with a TA5 connection
- Sends Line level balanced TA3 output on 664, 633, 688, 552 mixers and 788T into Lectrosonics Transmitters at -45 dB
In the Box Bundle Items CT-PCL-24B Balanced TA3F to TA5F Transmitter Links Cable (24", Blue) CT-PCL-24R Balanced TA3F to TA5F Transmitter Links Cable (24", Red) Table of Contents
|
Upload User Manual
Have you got an user manual for the Cable Techniques TA3F to TA5F Blue & Red Cable Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CT-PCL-24B Balanced TA3F to TA5F Transmitter Links Cable (24", Blue)
| Connector 1 | TA3F | | Connector 2 | TA5F | | Signal Level | -45 dB | | Length | 24" (61 cm) | | | | Box Dimensions (LxWxH) | 6.0 x 4.5 x 0.15" | - CT-PCL-24R Balanced TA3F to TA5F Transmitter Links Cable (24", Red)
| Connector 1 | TA3F | | Connector 2 | TA5F | | Signal Level | -45 dB | | Length | 24" (61 cm) | | | | Box Dimensions (LxWxH) | 7.0 x 5.0 x 0.05" |
