User Manual for CableTronix CT-BDA24 1 GHz Single Input Output Multimedia Drop Amplifier with Adjustable Gain Control and Switchable FM Trap Click to enlarge the picture
Contents of the user manual for the CableTronix CT-BDA24 1 GHz Single Input
- Product category: RF Equipment CableTronix
- Brand: CableTronix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CableTronix RF Equipment
|
User manual for the CableTronix CT-BDA24 1 GHz Single Input contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CableTronix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CableTronix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CableTronix product will considerably shorten its lifespan!
|

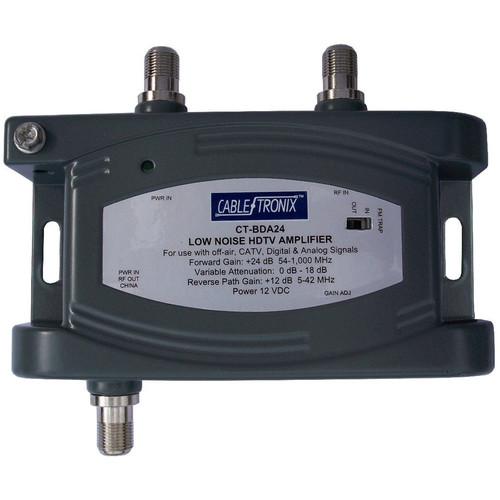

Product description The CT-BDA24 1 GHz Single Input/Output Multimedia Drop Amplifier from CableTronix is designed for use in CATV systems that require two-way multimedia networking. It offers adjustable gain control and features a switchable FM trap. The amplifier features one input and one output and offers 24 dB forward gain and 12 dB reverse gain. - ESD protection and zinc die-cast housing prevent RFI
- 6 kV surge protection on all ports
- Suitable for digital cable applications
- Can be remotely powered over coax
- Line powered through RF port or externally powered through power-in port
- Adjustable gain control and a switchable FM trap
UPC: 810842024955 Table of Contents
|
Upload User Manual
Have you got an user manual for the CableTronix CT-BDA24 1 GHz Single Input Output Multimedia Drop Amplifier with Adjustable Gain Control and Switchable FM Trap in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCableTronix CT-BDA24 Specs | Forward Path | 54 to 1000 MHz | | Reverse | Reverse Path: 5 to 42 MHz | | Gain | Forward: 24 dB
Reverse (Loss): 12 dB | | Noise Figure | 3 dB typical, 4 dB maximum | | Return Loss | In/Out: 20 dB typical, 18 dB minimum | | Power Supply Voltage | 12 VDC, 200 mA | | Surge Protection | 6 kV on all ports | | Connection | F-type female | | Impedance | 75 Ohms | | Operating Temperature | -40 to 140°F (-40 to 60°C) | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer |
