User Manual for CableTronix CT-HDVD-4X14K-SW 4x1 High-Definition Switcher Click to enlarge the picture
Contents of the user manual for the CableTronix CT-HDVD-4X14K-SW 4x1 High-Definition Switcher
- Product category: Routers & Switchers CableTronix
- Brand: CableTronix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CableTronix Routers & Switchers
|
User manual for the CableTronix CT-HDVD-4X14K-SW 4x1 High-Definition Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CableTronix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CableTronix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CableTronix product will considerably shorten its lifespan!
|

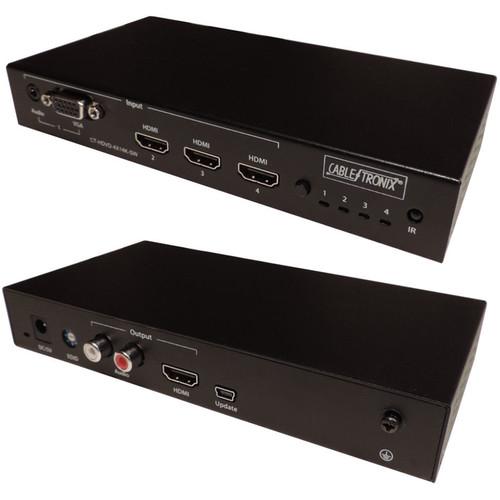

Product description The CT-HDVD-4X14K-SW 4x1 High-Definition Switcher from CableTronix can be used for managing multiple audio and video sources. It provides three inputs for direct connection of HDMI devices. This switch features additional VGA and audio inputs. Analog audio inputs can be embedded in a HDMI signal, and a pair of RCA outputs enable extraction of audio for direct connection to amplifiers. You can also select your desired HDMI source for display on a HDTV. In addition, the switcher is suitable for use in digital entertainment centers, control centers, conference rooms, schools, and corporate training environments. - Supports 1 input (VGA + audio) and 3 HDMI inputs
- Pair of RCA outputs for audio extraction
- Input Ports Priority: VGA > HDMI1 > HDMI2 > HDMI3
- Supports HDMI and VGA inputs
- Firmware updates via mini-USB Type-B
UPC: 810842025006 In the Box CableTronix CT-HDVD-4X14K-SW 4x1 High-Definition Switcher Remote Power Supply Pair of Mounting Ears Table of Contents
|
Upload User Manual
Have you got an user manual for the CableTronix CT-HDVD-4X14K-SW 4x1 High-Definition Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCableTronix CT-HDVD-4X14K-SW Specs | | | Input | 3 x HDMI, 1 x VGA | | Output | 1 x HDMI | | Signal Type | Input:
HDMI: HDMI 1.4 with HDCP
VGA: RGBHV
Output:
HDMI: HDMI 1.4 with HDCP | | Input/Output Resolutions | HDMI: 480i, 576i, 480p, 576p, 720p 50/60, 1080i 25/30, 1080p 24/30/50/60, 4K x 2K 30 | | VGA | 640 x 480, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 1024, 1920 x 1080, 1920 x 1200 | | Maximum Pixel Clock | 297 MHz | | Input Video Signal | 0.5 to 1.5 V p-p | | Video Impedance | 100 Ohms | | | | Input | 1 x TRS 3.5 mm jack | | Output | 2 x RCA | | Signal Type | Input/Output: Stereo | | Input Impedance | >10 kOhms | | Output Impedance | 75 Ohms | | | | Power Supply | 5 VDC, 2 A | | Power Consumption | 6 W maximum | | Control Method | Front panel | | System Requirements | HDMI/DVI source devices (connect with HDMI cables)
VGA source devices (connect with VGA cables)
HDMI displays (TVs or monitors) or HDMI equipped AV receivers (connect with HDMI cables)
Industry standard HDMI, VGA, and analog audio cables | | Operating Temperature & Humidity | 32 to 95°F (0 to 35°C)
10 to 90%, non-condensing | | Storage Temperature & Humidity | -4 to 140°F (-20 to 70°C)
10 to 90%, non-condensing | | ESD Protection |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
The discussion is empty - enter the first post
Post a new topic / query / comment:
|
|
|
| Request for user manual |
You can’t find the operation manual you are looking for? Let us know and we will try to add the missing manual:
I’m looking for a manual / Request for manual
Current requests for instruction manuals:
inspiron 3470...
Film Scanner 8 mm + super 8 REELS MOVIE MAKER PRO...
HP 3630 deskjet printer/scanner...
Dell KB216 ITALIAN Slim Office Multimedia Keyboard BLACK.
...
Mistral MC2300R 25L Detachable Air Coller with Steriliser.
Thank you in advance for your assistance.
Sincerely,
Jonathan Chua...
|
| Discussion |
Latest contributions to the discussion:
Hello from Murray - Gutkowski
Name: Enos Greenholt
Logitech Wireless Presenter R400
I tried to pepper it but got prune all over it....
Instructions for assembling the 2015 Forecast Image Master Consoles GC3-A
Name: mike elam
Forecast Consoles GC3-A ImageMaster Editing Console
Looking for instructions for assembling this console. ...
EMPTY TONER ERROR MESSAGE AFTER REPLACING TONER
Name: LINDA BAD YELLOW EYES
Brother TN223BK Standard-Yield Toner
I HAD TO CHANGE OUT ALL THREE TONERS DUE TO LEAKS IN THE YELLOW AND CYAN. AFTER I REPLACED THEM, THE MACHINE KEEPS GIVING ME AN EMPTY TONER ERROR MESSAGE. HELP!!...
PS480D 20/24 pin Switching 480W Power Supply
Name: swkargo
Logisys 480W Power Supply
This item states in can run -5vdc .It is NOT listed on the board or I beleive is r4 is missing the resitior. Any body have thid issue. Shawn
...
Help needed
Name: Ann Carter
SanDisk 1TB Extreme Portable USB 3.1
When I click the link to download the user manual for my Sandisk Extreme external hard drive, it gives me the manual for the LG Cricket. Can you please change the link so I can download the Sandisk manual and begin using this drive? Thank you....
|
|
