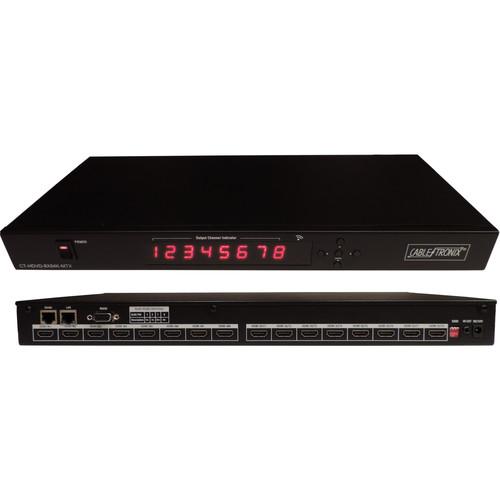

User Manual for CableTronix CT-HDVD-8X84K-MTX 8x8 High-Definition Switcher Click to enlarge the picture
Contents of the user manual for the CableTronix CT-HDVD-8X84K-MTX 8x8 High-Definition Switcher
- Product category: Routers & Switchers CableTronix
- Brand: CableTronix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CableTronix Routers & Switchers
|
User manual for the CableTronix CT-HDVD-8X84K-MTX 8x8 High-Definition Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CableTronix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CableTronix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CableTronix product will considerably shorten its lifespan!
|
Product description The CT-HDVD-8X84K-MTX 8x8 High-Definition Switcher from CableTronix allows up to eight HDMI audio/video devices to be independently switched to eight HDMI monitors, HDTVs, or projectors. It can be controlled via the included remote control, RS-232, RS485, or LAN connections. The switcher's internal EDID library features default EDID configurations, in addition to native EDID data for any output or display.
The switcher is suitable for use in digital entertainment centers, HDTV retail displays, trade show displays, HDTV, STB, DVD, and projector factories, data center control, information distribution, conference room presentations, school and corporate training environments. - Each of the eight output channels can show the same or different sources simultaneously whether the source is HDCP or not
- Reads and saves EDID functions from displays
- Supports high-definition resolutions including 1080p at 60 Hz at 48 b/pixels, 3D, 1080i, 720p, and other standard video formats
- Each port supports HDMI and DVI inputs
- Includes IR extension receiver
- HDMI 1.4 with 3D and HDCP compliant
In the Box CableTronix CT-HDVD-8X84K-MTX 8x8 High-Definition Switcher Remote IR Receiver Cable USB to UART Cable RS-232 to RS-485 Converter Power Supply Pair of Mounting Ears Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CableTronix CT-HDVD-8X84K-MTX 8x8 High-Definition Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCableTronix CT-HDVD-8X84K-MTX Specs | Input Video Signal | 0.5 to 1 V p-p | | Input DDC Signal | 5 V p-p (TTL) | | Supported Video Formats | DTV/HDTV: 4K x 2K/1080p/1080i/720p/576p/480p/576i/480i | | Supported Audio Formats | DTS HD, Dolby HD | | Output Video | HDMI 1.4 with 3D | | Maximum Transmission Distance | 16.4' (5 m) | | Power Consumption | 40 W maximum | | Operating Temperature Range | 32 to 95°F (0 to 35°C) | | Operating Humidity Range | 5 to 90% RH (no condensation) | | Dimensions (L x W x H) | 17.3 x 14.9 x 1.5" (440 x 200 x 40 mm) | | Weight | 5 lb (2.3 kg) |
