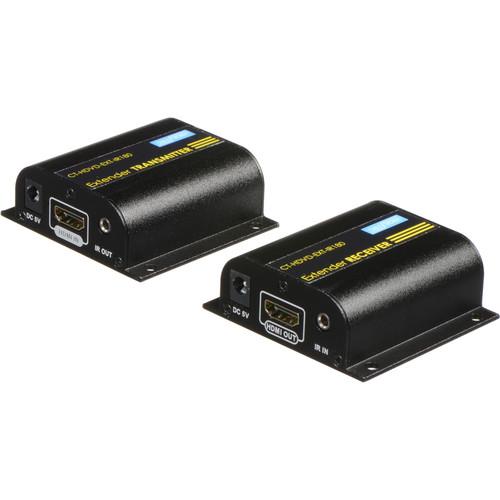

Product description Extend HDMI transmission distances with the HDMI Extender Transmitter and Receiver Kit from CableTronix. This kit includes a transmitter unit and a receiver unit to allow HDMI signals to be transmitted over a Cat5e or Cat6 4-pair cable. An IR blaster and an IR receiver provide IR control. This kit is designed to provide extended range when using an HDMI-enabled device, such as a computer, gaming console, or video recorder, and an HDMI display. Two 5 VDC power adapters are included to power to the transmitter and receiver units. - Extends HDMI signals over RJ45 Ethernet up to 180'
- Supports HDMI V1.3, HDCP-compliant
- LED indicators for power and video signal status
- Plug-and-play for quick setup
- Compatible with Cat5e and Cat6 cable
- Multiple units can be cascaded (additional units available separately)
UPC: 819210012006 In the Box CableTronix HDMI Extender Transmitter and Receiver Kit Base Transmission Unit Base Receiver Unit 2 x 5 VDC Power Supplies IR Emitter Cable IR Target Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CableTronix HDMI Extender Transmitter and Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCableTronix CT-HDVD-EXT-IR180 Specs | Input Video Signal | 0.5 to 1.0 V p-p | | Input DDC Signal | 5 V p-p (TTL) | | Video Format Support | 480i at 60 Hz, 480p at 60 Hz, 576i at 50 Hz, 576p at 50 Hz, 720p at 50/60 Hz, 1080i at 50/60 Hz, 1080p at 50/60 Hz
DTV/HDTV: 1080p/1080i | | Output Video | HDMI 1.3+ HDCP | | Output Audio Format | Support DTS-HD, Dolby HD | | Maximum Transmission Distance | Up to 180' (55 m) using Cat6 | | Power Supply | 5 VDC, 1A | | Maximum Power Consumption | Transmitter: 2 W
Receiver: 2 W | | Operating Temperature | 32 to 140°F (0 to 60°C) | | Operating Humidity | 5 to 90% RH, non-condensing | | Network Cables | Cat5e, 6, 6a, 7
Low resistance and consumption oxygen-free copper core | | IR Remote | Support 20 to 60 kHz wide frequency IR remote control | | Dimensions | Transmitter: 2.85 x 1 x 2.65" (7.2 x 2.5 x 6.7 cm)
Receiver: 2.85 x 1 x 2.65" (7.2 x 2.5 x 6.7 cm) | | Weight | Transmitter: 0.4 lb (0.2 kg)
Receiver: 0.4 lb (0.2 kg) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 7.402 x 5.984 x 2.835" |
