User Manual for Cactus RF60x Wireless Flash Click to enlarge the picture
Contents of the user manual for the Cactus RF60x Wireless Flash
- Product category: On Camera Flashes Cactus
- Brand: Cactus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cactus On Camera Flashes
 |
User manual for the Cactus RF60x Wireless Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cactus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cactus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cactus product will considerably shorten its lifespan!
|

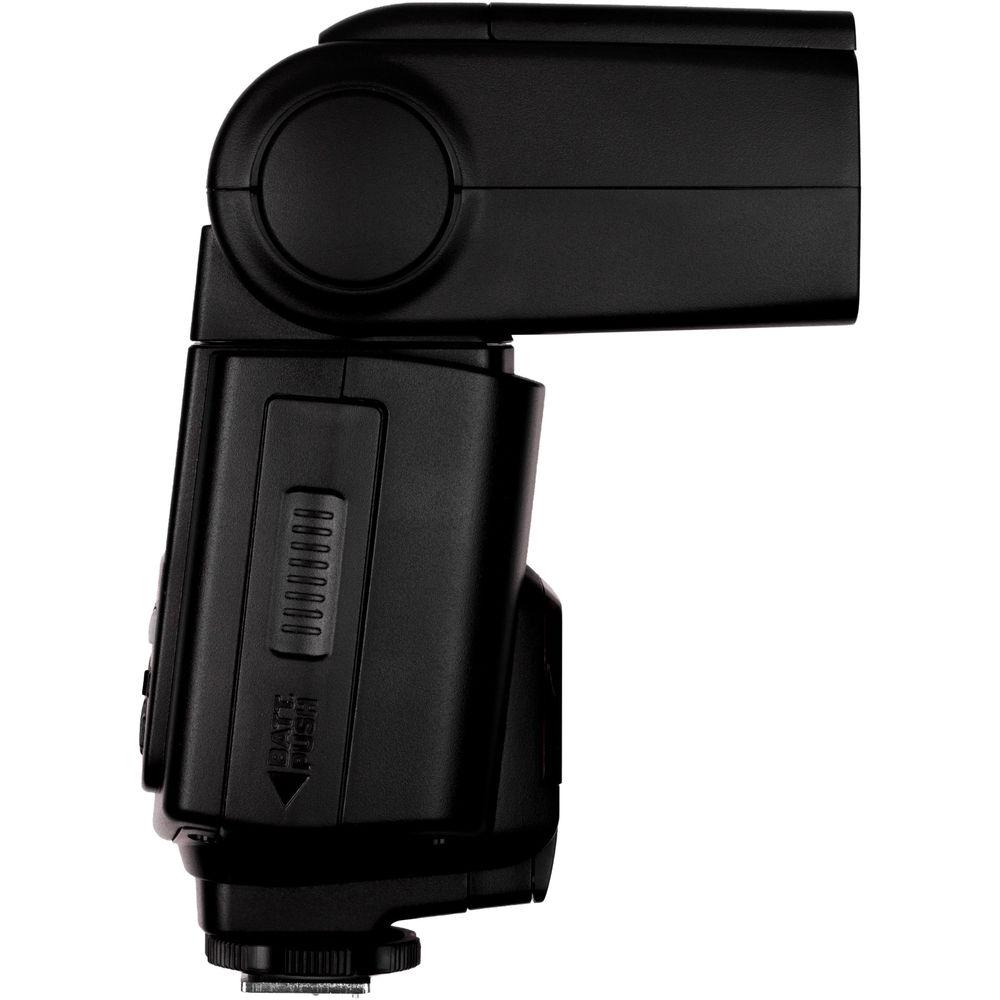

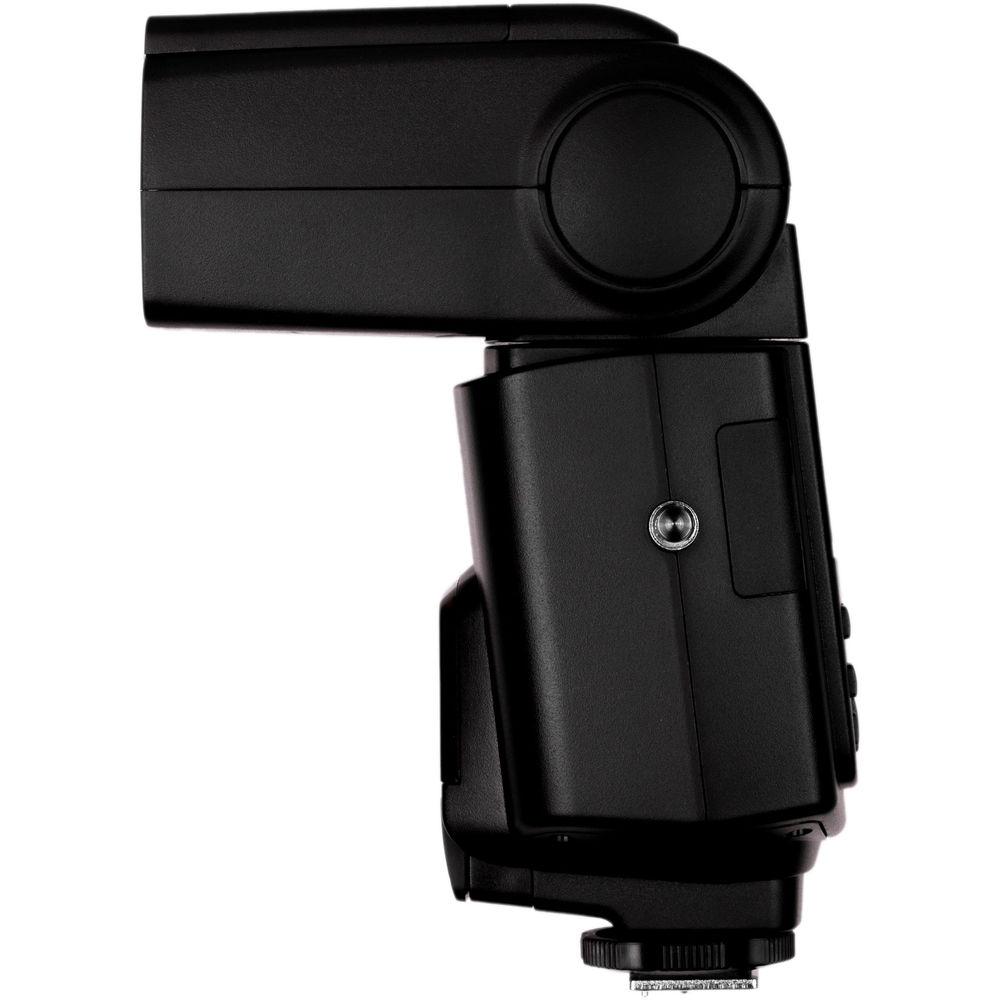

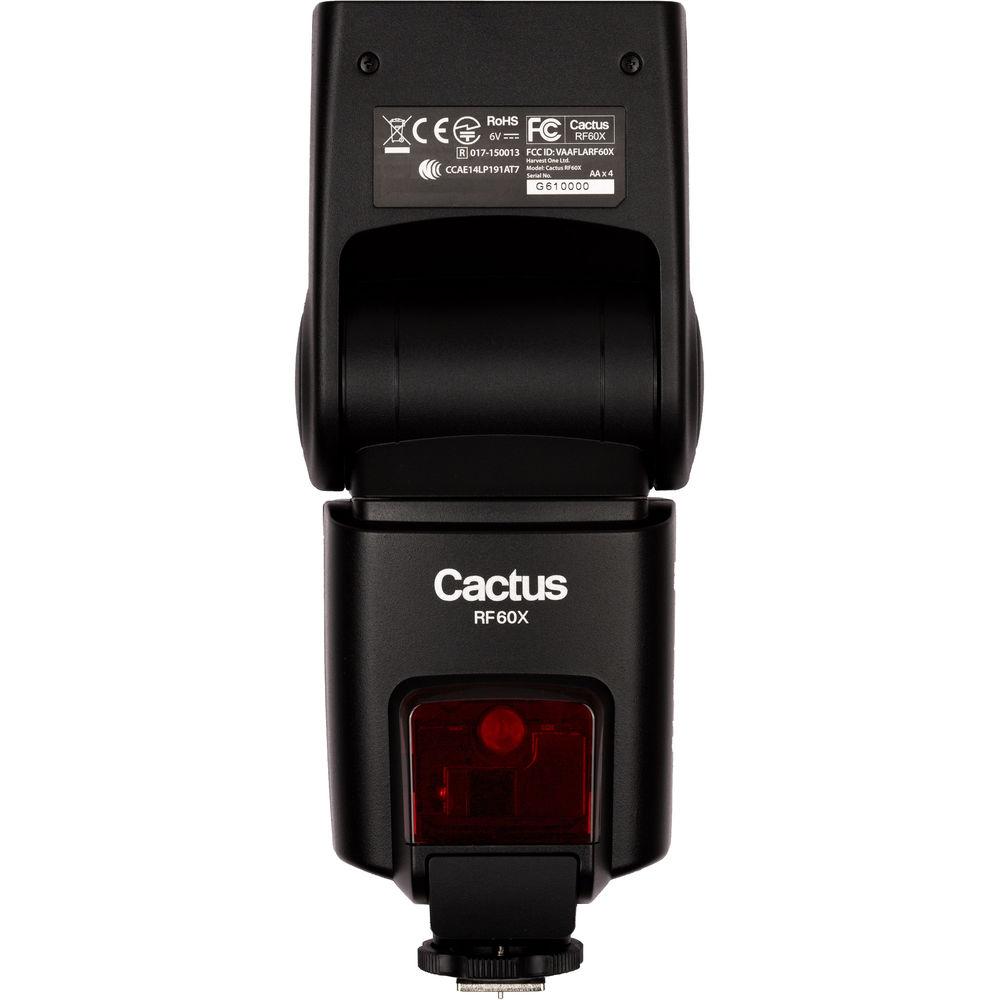

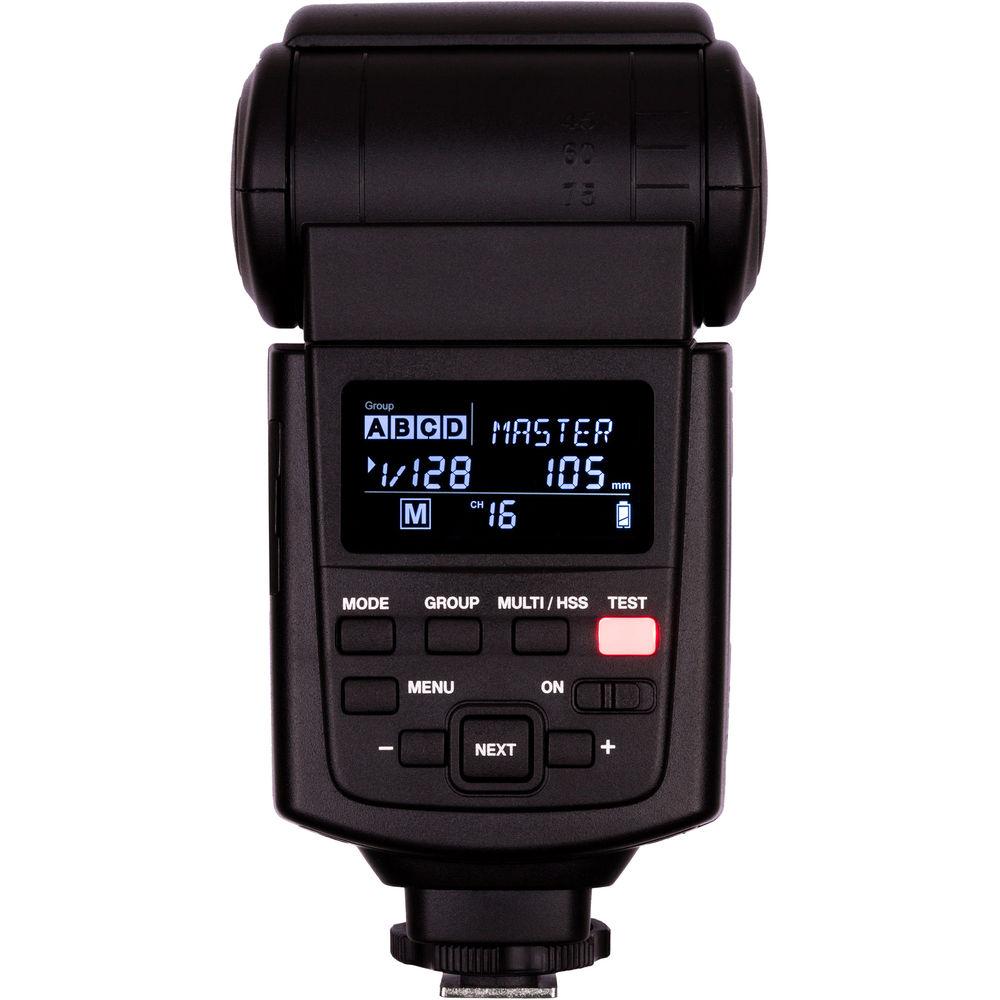

Product description A Guide to On-Camera Flash Read More Improving upon its predecessor, the RF60x Wireless Flash from Cactus implements a new cooling mode, the ability to quick recharge at full power in just 1.9 seconds, an AF assist light in sync with other Cactus devices, and automatic wireless high-speed sync support in slave mode. The RF60x main selling point is still a built-in radio transceiver with a 328' range that is fully compatible with the Cactus V6 system and high-powered with a guide number of 183' at ISO 100 and 105mm. The flash is fully manual and has a zoom range of 24-105mm that can be expanded to 18mm with the built-in wide-angle diffuser panel. The unit also has the ability to act as either a wireless slave or master and can have its setting changed remotely via another unit or a V6 radio trigger.
The RF60x offers numerous other features for convenience, including the ability to tilt up 90° and rotate 270°. The power can be adjusted from 1/1 to 1/128 in 1/3 EV steps and it will recycle in about 0.1-1.9 seconds, depending on power and batteries. Specialized shooting modes are available, including strobe and high speed sync sympathy mode. Additionally, it runs on four AA batteries and comes with both a carrying case and stand. - Cooling mode prevents RF60x from overheating
- 2.4 GHz wireless transceiver with 16 channels and three modes; local, master, and slave
- Wireless range of about 328' and full compatibility with V6 transceiver, including the ability to control power output and zoom range
- Four groups are available and each group can be renamed to one of the following: KEY, FILL, SPOT, RIM, HAIR, LEFT, RIGHT, BACK, and FRONT
- Automatic wireless high-speed sync support while in slave mode for Canon, Fujifilm, Nikon, Olympus, Panasonic, Pentax, and Sony when using the V6II or V6IIs transceiver
- Built-in optical sensor features multiple delay settings for ensuring it isn't triggered by any pre-flashes
- Multi-flash mode fires a series of flashes to capture multiple images of a moving subject in a single frame
- High speed sync sympathy mode works with the TTL flash mounted on camera to produce even illumination across the frame at shutter speeds up to 1/8000 second
- Will provide about 100 flashes at 1/1 power and 2000 at 1/128 power
- Quick full-power recharge time of just 1.9 seconds
- AF assist light in sync with other Cactus devices, such as the V6II or V6IIs
In the Box Cactus RF60x Wireless Flash FC-3 Carrying Case FS-2 Flash Stand Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cactus RF60x Wireless Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCactus RF60x Specs | Mount | Shoe | | Guide No. | 183' / 55.78 m ISO 100 at 105 mm Position | | Exposure Control | Manual | | Vari-Power | Manual: 1/1 to 1/128 | | Bounce Head | Yes0 to +90° | | Swivel Head | Yes, 270° | | Coverage | 18 - 105 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 105 mm | | Off-Camera Terminal | 3.5 mm | | Recycle Time | Approximately 0.1 to 1.9 Seconds | | Flash-Ready Indicator | Yes | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: RF
Distance: Up to 328' / 99.97 m | | Wireless Communication Channels | 16 Channels | | Wireless Groups | 4 Groups | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 8.1 x 3.3 x 2.4" / 205.0 x 83.0 x 61.0 mm | | Weight | 13.76 oz / 390 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 9.4 x 3.7 x 2.9" |
