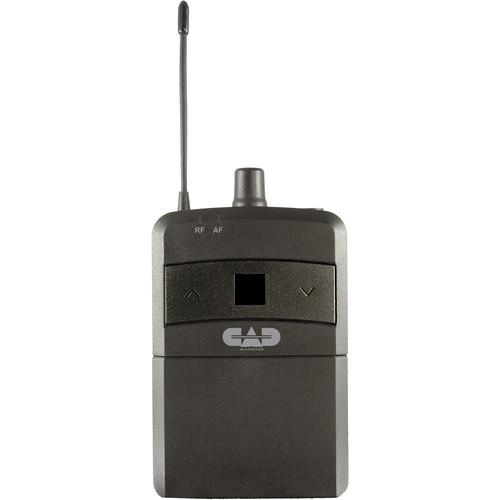

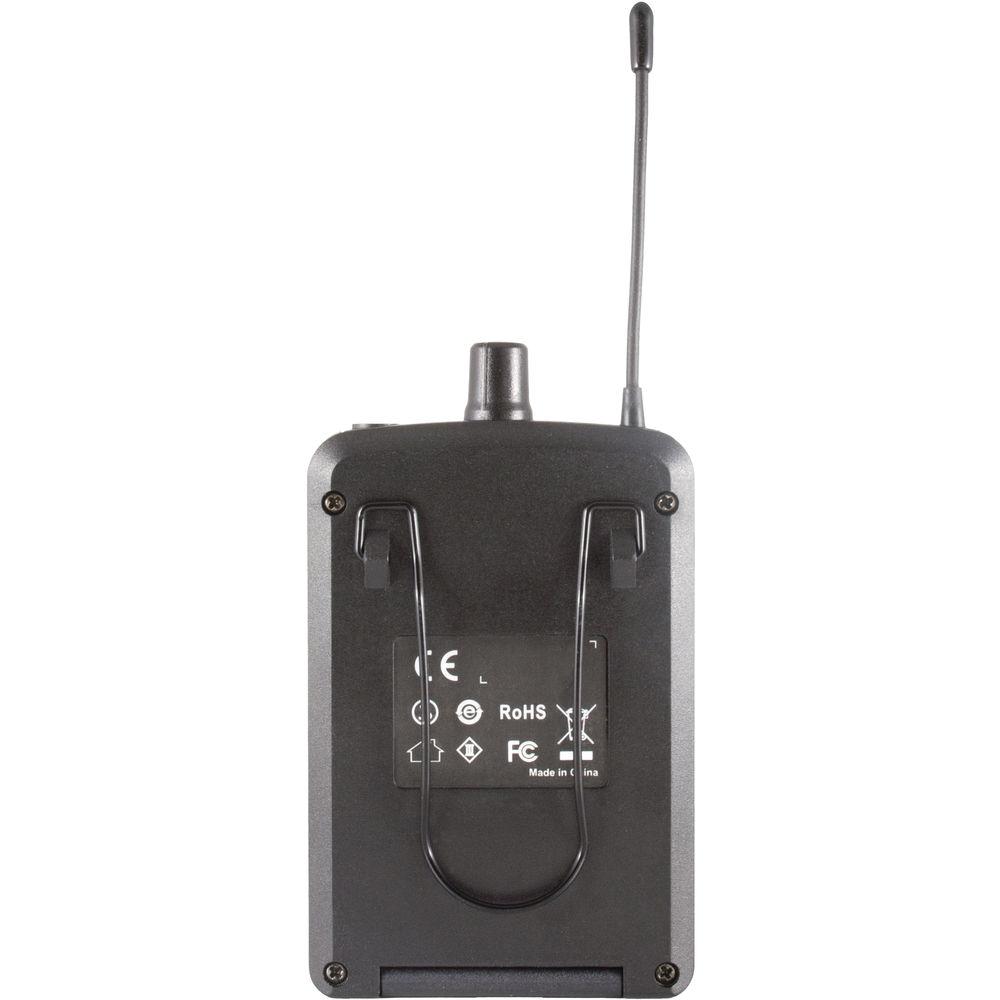

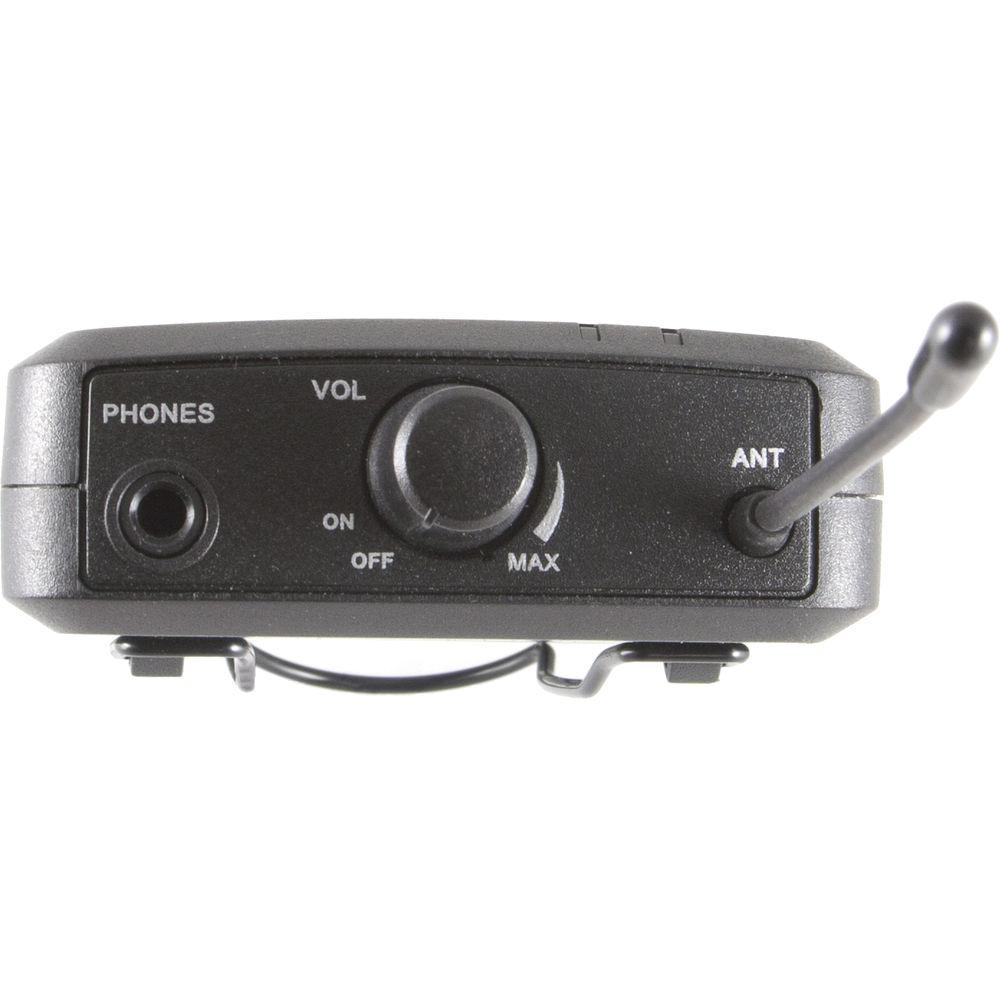

Product description This Bodypack Wireless Receiver is designed to work with the CAD Stagepass IEM Stereo Wireless In-Ear Monitor System. The belt pack receiver can operate on 16 selectable UHF channels with a run time of +10 hours when powered by a pair of AA alkaline batteries. The receiver features an integrated belt clip, a non-detachable antenna, and a top mounted combination on/off switch and volume control. The included MEB2 earbuds connect to the receiver via a top mounted 1/8" stereo headphone jack.
The receiver delivers a frequency response of 40 to 16,000 Hz with a dynamic range of over 101 dBA and a maximum output power of 100 mW into a 32 ohm load, which makes it more than capable of driving the included 22 ohms balanced armature based earbuds. UPC: 631922107227 In the Box CAD Bodypack For Stagepass IEM Wireless System Set of MEB2 In-Ear Monitors Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD Bodypack For Stagepass IEM Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAD IEMBP Specs | | | Operating Principle | Balanced armature dynamic | | Sensitivity | 142 dB at 1 mW | | Impedance | 22 ohms | | | | Receiving Frequency | Q Band 470 - 489 MHz | | Frequency Response | 40 to 16,000 Hz | | Dynamic Range | >101 dBA | | Maximum Output Power | 100 mW into 32 ohms | | Battery Life | >10 hours with high-quality alkaline batteries | | Battery Requirements | 2x AA batteries | | Dimensions | 2.56 x 4.5 x 0.88" (6.5 x 11.4 x 2.2 cm) | | Weight | 3.2 oz (91 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 7.1 x 3.2 x 1.6" |
