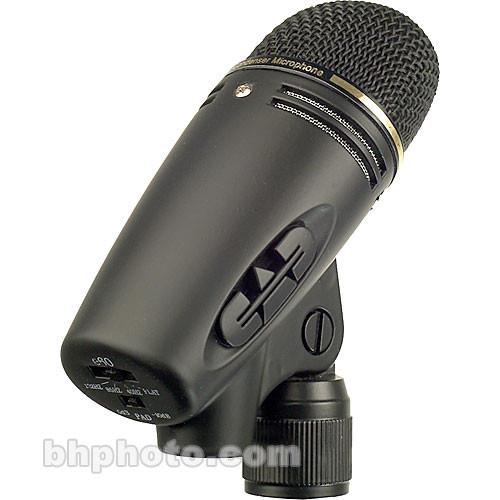

User Manual for CAD E60 - Cardioid Condenser Studio Microphone Click to enlarge the picture
Contents of the user manual for the CAD E60 - Cardioid Condenser Studio
- Product category: Instrument Microphones CAD
- Brand: CAD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAD Instrument Microphones
|
User manual for the CAD E60 - Cardioid Condenser Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAD product will considerably shorten its lifespan!
|
Product description The CAD E60 is versatile, cost effective condenser microphone designed for vocal and instrument capturing in recording applications. The E60 incorporates an op-amp output stage, much like the output stage found in the Equitek series. Unlike the Equitek, the E60 is powered by +48V phantom power and does not require a battery to compensate for the power requirements of the op-amp. The cardioid capsule features a 4-position frequency contour switch with Flat, 40Hz, 80Hz and 120Hz settings. A 10dB Pad switch maximizes gain when capturing audio at close proximity. The E60's sonic performance and frequency response make it a solid, cost-effective solution for home and project studios. - OpAmp Output Stage
- The E60 utilizes the Equitek OpAmp output stage design without the need for an alkaline battery to compensate for power. The OpAmp results in an significantly lower noise floor and high gain.
- 4-Position Frequency Contour
- The 4-position low frequency switch provides Flat, 40Hz, 80Hz and 120Hz settings.
- Pad Switch
- A -10dB Pad increases headroom and minimizes distortion and noise caused by transient signal.
- Cardioid Polar Pattern
- The cardioid polar pattern is effective in minimizing noise at the off-axis sections of the microphone capsule.
In the Box CAD E60 - Cardioid Condenser Studio Microphone Mic Stand Clip 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD E60 - Cardioid Condenser Studio Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAD E60 Specs | Transducer | Front address, externally biased condenser | | Polar Pattern | Cardioid | | Frequency Response | 30Hz - 20kHz | | Dynamic Range (Typical) | 125dB | | Signal-to-Noise Ratio | 20dB Equivalent SPL, A weighted | | Maximum Input Sound Level | 138dB SPL (with pad on) | | Power Requirements | 24 - 52 Volts Phantom Power | | Output Impedance | Low (300 ohms nominal) | | Output Connectors | Gold plated 3-pin XLR type | | Pad | 10dB | | Low Frequency Roll-Off | 4 - Position: Flat, 40Hz, 80Hz and 120Hz | | Dimensions | 4.47 x 1.95" (113.54 x 49.53mm) (Length x Diameter) | | Weight | 9.5oz (270 g) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 7.0 x 6.5 x 4.0" |
