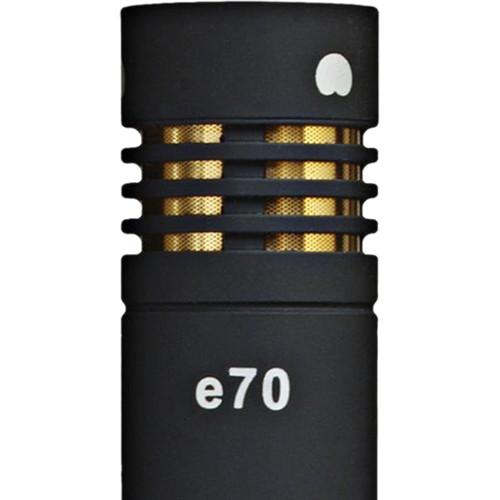

User Manual for CAD e70 Modular Dual-Capsule Condenser Microphone Click to enlarge the picture
Contents of the user manual for the CAD e70 Modular Dual-Capsule Condenser Microphone
- Product category: Small Diaphragm Condenser CAD
- Brand: CAD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAD Small Diaphragm Condenser
 |
User manual for the CAD e70 Modular Dual-Capsule Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAD product will considerably shorten its lifespan!
|

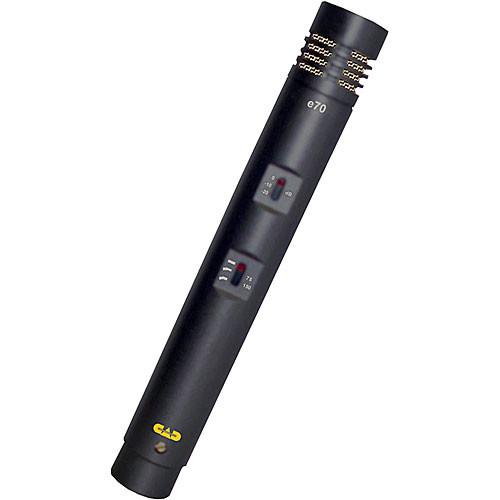

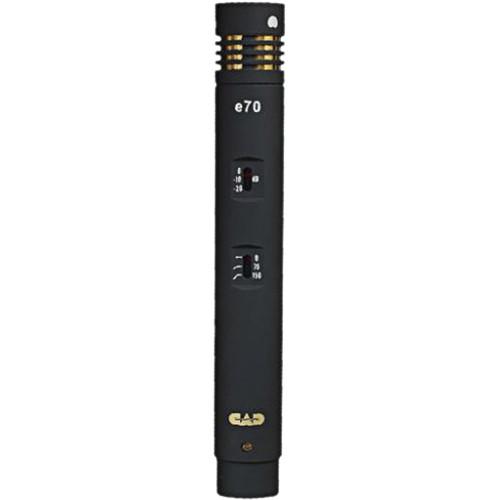

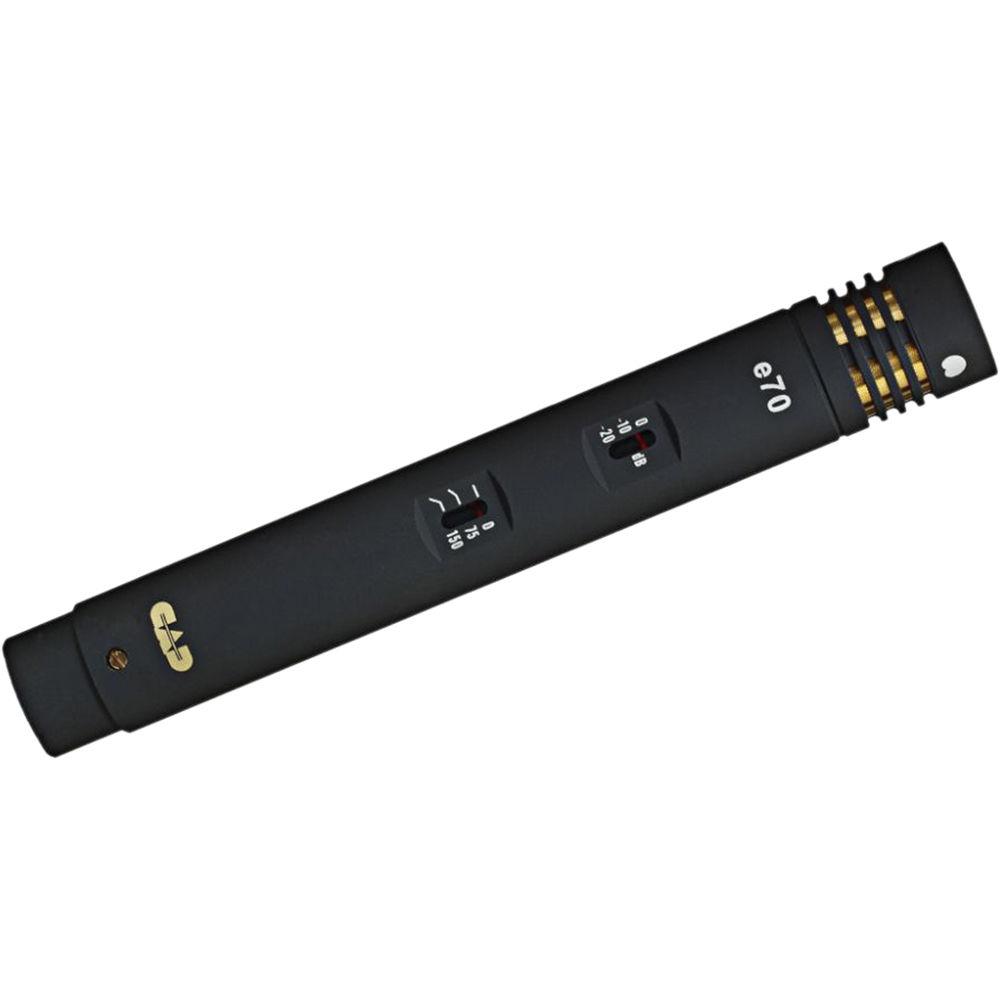

Product description The e70 Modular Dual-Capsule Condenser Microphone from CAD features a versatile dual-capsule design, conveniently providing both omnidirectional and cardioid pickup patterns. The microphone can be used for capturing acoustic instruments, guitar cabinets, choir ensembles, piano, strings, and similar applications. The e70 also offers a two-position pad switch for -10 and -20 dB attenuation, avoiding peak noise distortion. There is a flat frequency response for a rich, natural sound and a high-pass filter for reducing low-frequency noise and hum. The e70 is suitable for both sound reinforcement and recording applications. The package includes an elastic shock mount, a stand clamp, and a windscreen. - Dual Capsule Design
- The E70 features two capsules that provide cardioid and omnidirectional pick up patterns.
- High-Pass Filter
- The high-pass filter switch eliminates hum and noise at low-frequencies.

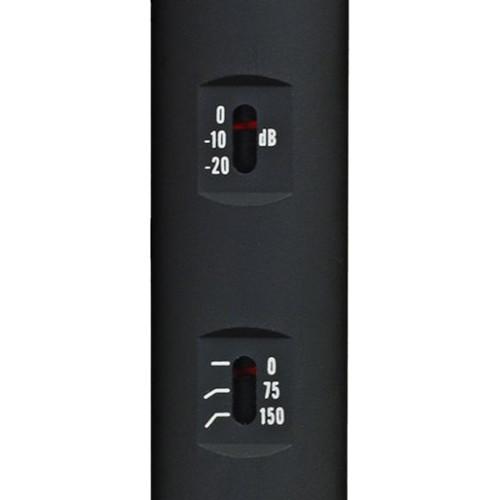

- Two-Position Pad Switch
- The two-position pad attenuates audio at -10 and -20 dB.
UPC: 631922103434 In the Box CAD e70 Modular Dual-Capsule Condenser Microphone Elastic Shock Mount Stand Clamp Windscreen Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD e70 Modular Dual-Capsule Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAD E70 Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 23 dB A-Weighted | | Maximum SPL | 134 dB SPL | | Pad | -10 dB
-20 dB | | THD | 1% | | Impedance | 85 Ohms | | Sensitivity | -39 dBV/Pa | | Low-Cut Filter | 6 dB/Octave @ 75 Hz
6 dB/Octave @ 150 Hz | | Operating Current Consumption | 2.0 mA | | Operating Voltage | 48 V | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 9.8 x 4.8 x 2.7" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
