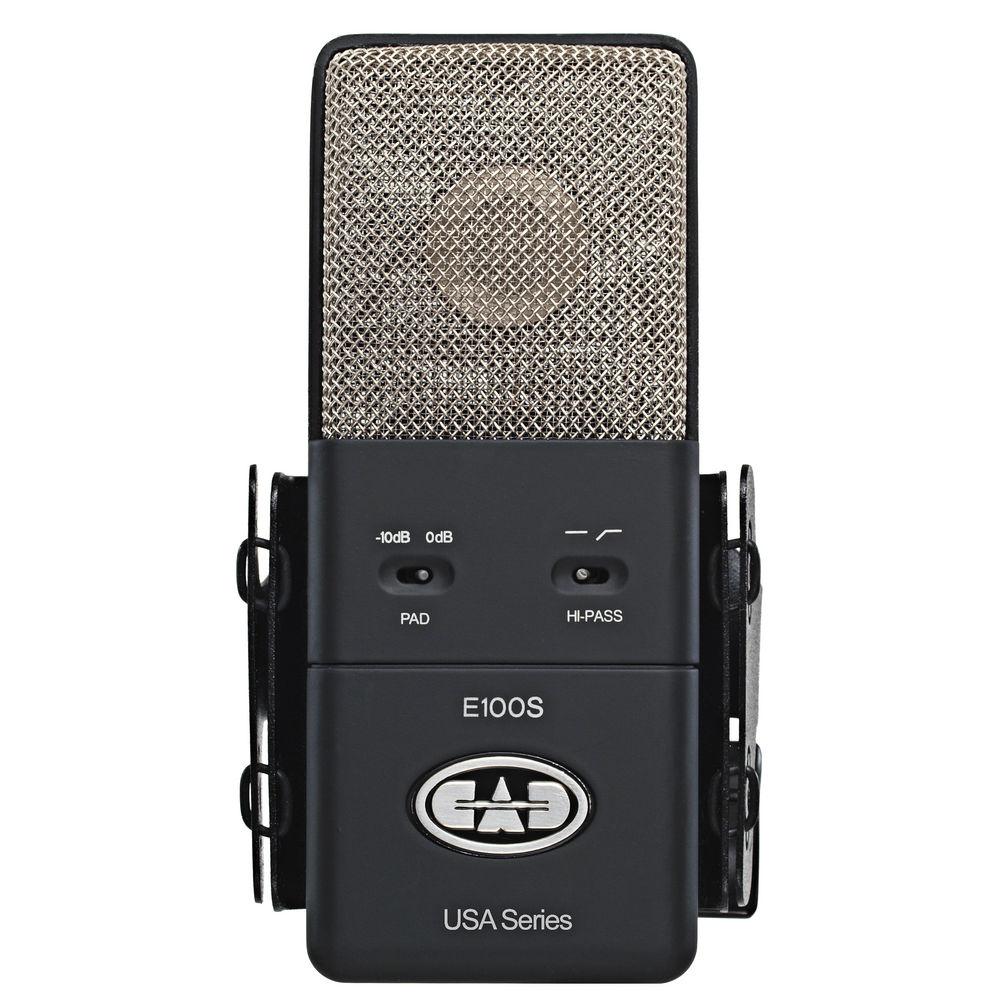

User Manual for CAD Equitek E100S Supercardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the CAD Equitek E100S Supercardioid Condenser Microphone
- Product category: Large Diaphragm Condenser CAD
- Brand: CAD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAD Large Diaphragm Condenser
 |
User manual for the CAD Equitek E100S Supercardioid Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAD product will considerably shorten its lifespan!
|

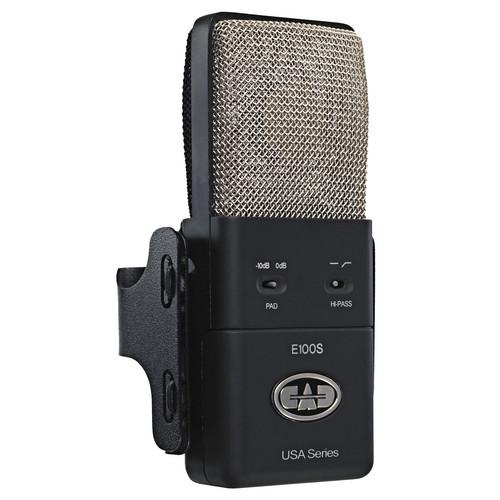

Product description The Equitek E100S Supercardioid Condenser Microphone from CAD features a large diaphragm, providing a low noise floor of 3.7 dB and a smooth, vintage tone with a robust low end. The bootstrapped, full differential Quadra-FET front end delivers high sensitivity and low distortion. The nickel plated 1.0" capsule offers accurate phasing on instruments and a full rich vocal tone accentuated by the extended low frequency response. There is an 80 Hz hi-pass filter and a 10 dB pad. The package includes a vintage woodgrain cherry case and a stealth shock mount. The microphone requires 48V of phantom power for operation. - Nickel plated 1.0" capsule provides a full, rich tone with an extended low frequency response
- A full differential Quadra-FET front end delivers high sensitivity and low distortion for picking up high-volume sound sources
- Low noise floor of 3.7 dB for clean recordings
- Supercardioid pickup pattern provides maximum off-axis noise rejection
- 80Hz high pass filter to reduce low-end hum
- -10 dB pad increases headroom when recording loud sounds
- Operates on standard 48V phantom power
- Shock mount and vintage cherry woodgrain case included
UPC: 631922104394 In the Box CAD Equitek E100S Supercardioid Condenser Microphone Shock Mount Storage Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD Equitek E100S Supercardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

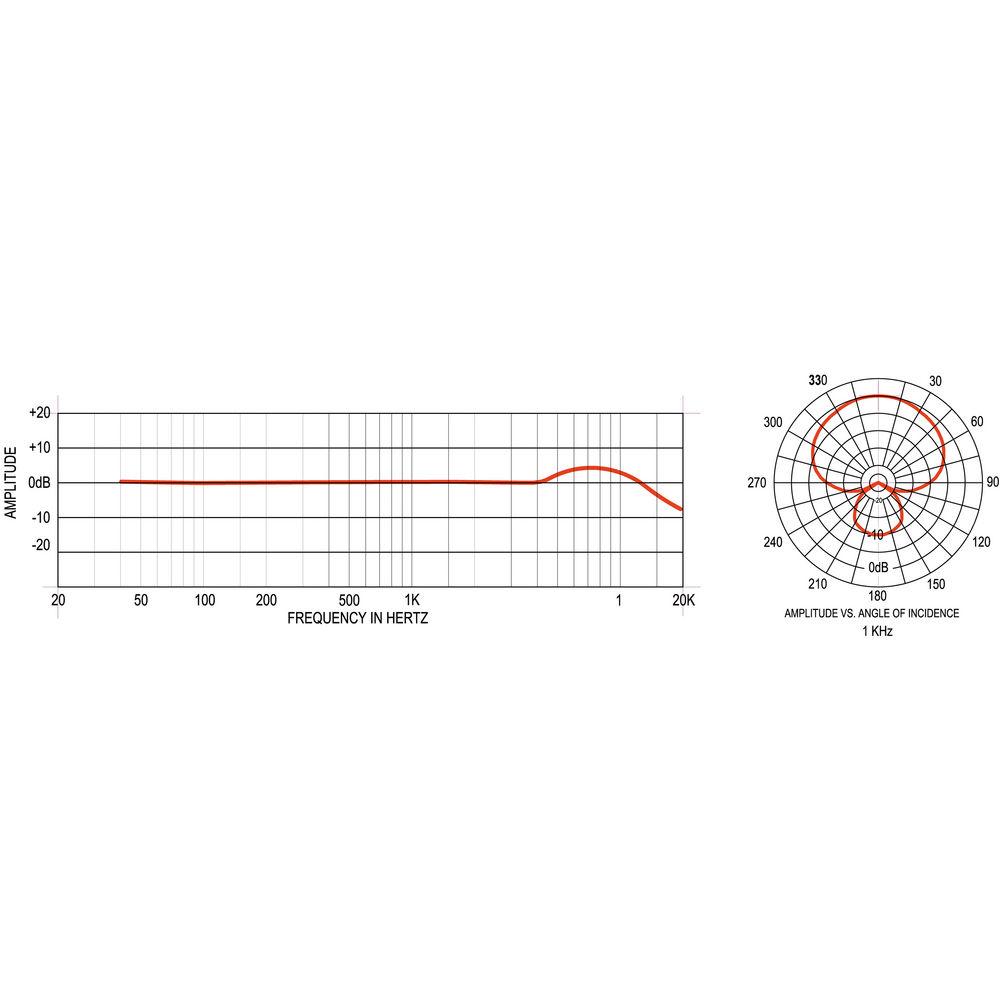

Technical parametersCAD E100S Specs | | | Transducer | Condenser | | Diaphragm | 1.0" / 25.40 mm | | Polar Pattern | Supercardioid | | Frequency Range | 40 Hz to 18 kHz | | Equivalent Noise Level | 3.7 dB A-Weighted | | Maximum SPL | 140 dB SPL | | Pad | -10 dB | | Impedance | 150 Ohms | | Sensitivity | 28 mV/Pa | | Low-Cut Filter | @ 80 Hz | | Operating Voltage | 48 V | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 10.0 x 6.5 x 6.0" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
