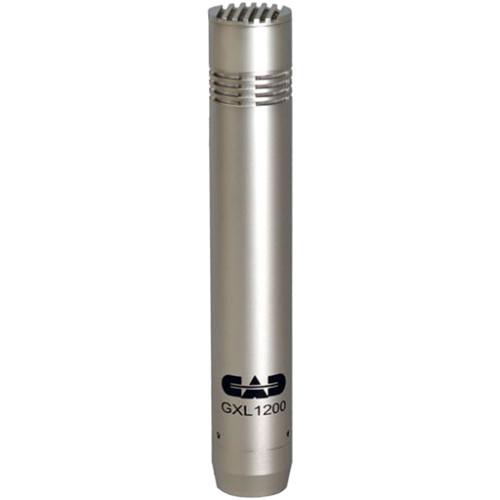

User Manual for CAD GXL-1200 Cardioid Studio Instrument Microphone Click to enlarge the picture
Contents of the user manual for the CAD GXL-1200 Cardioid Studio Instrument Microphone
- Product category: Small Diaphragm Condenser CAD
- Brand: CAD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAD Small Diaphragm Condenser
 |
User manual for the CAD GXL-1200 Cardioid Studio Instrument Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAD product will considerably shorten its lifespan!
|

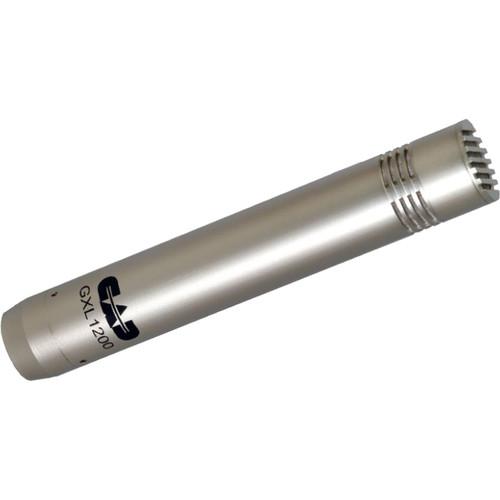

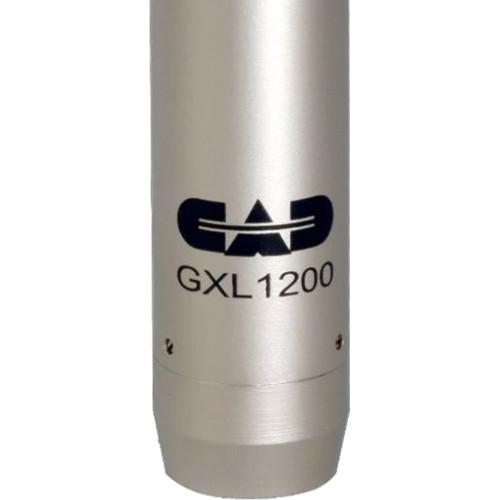

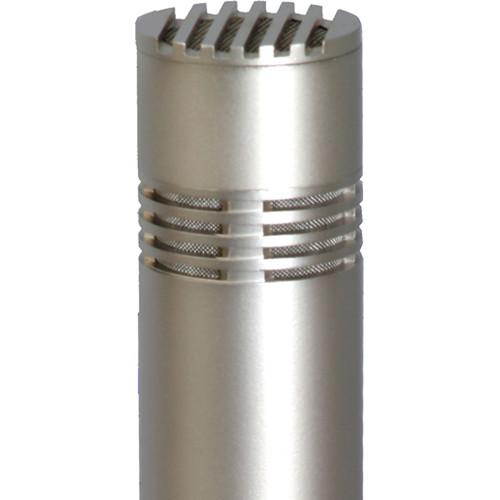

Product description The GXL1200 Cardioid Condenser Microphone from CAD features a small diaphragm condenser configuration with a cardioid pattern for minimizing noise, ambiance, and feedback. It is designed for general instrument pick up and can also be used with vocals. There is a high SPL handling, enabling loud audio signals to be reproduced without noise or distortion. The GLX1200 is housed in a slim profile enclosure for spot capturing vocals and instruments such as guitar, strings, wood winds, overheads, cymbals, and percussion. The package includes a microphone clip and a protective pouch. - Cardioid Polar Pattern
- The cardioid polar pattern is effective in minimizing noise and ambiance at the off-axis sections of the microphone capsule.
- High Sensitivity and SPL Handling
- High sensitivity, linear frequency response, and high SPL handling allow the microphone to be used in most recording or sound reinforcement applications.
UPC: 631922102215 In the Box CAD GXL-1200 Cardioid Studio Instrument Microphone Microphone Clip Protective Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD GXL-1200 Cardioid Studio Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAD GXL-1200 Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 20 kHz | | Equivalent Noise Level | 17 dB A-Weighted | | Maximum SPL | 135 dB SPL | | THD | 1% | | Impedance | 100 Ohms | | Sensitivity | -36 dBV/Pa | | Operating Current Consumption | 4.0 mA | | Operating Voltage | 48 V | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 7.9 x 3.8 x 2.2" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
