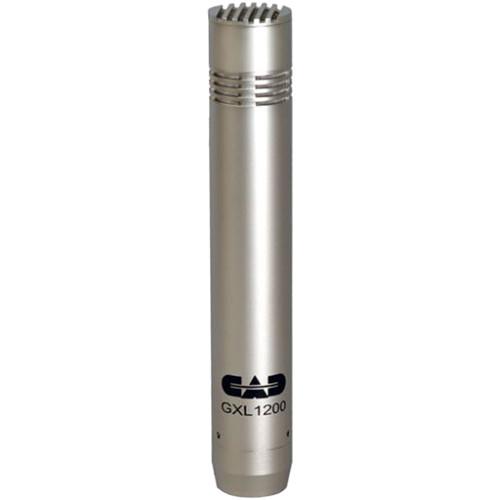

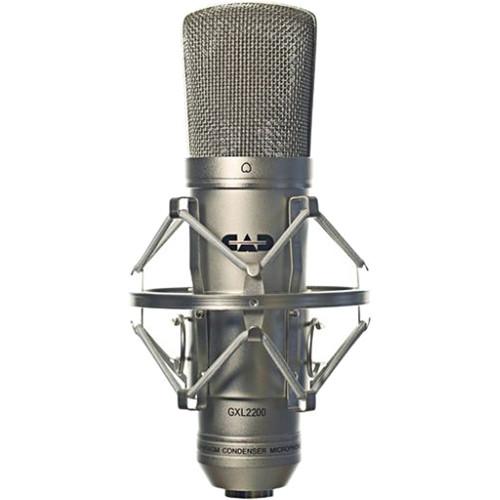

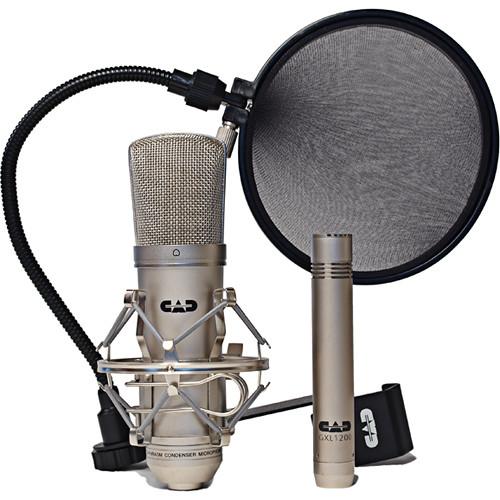

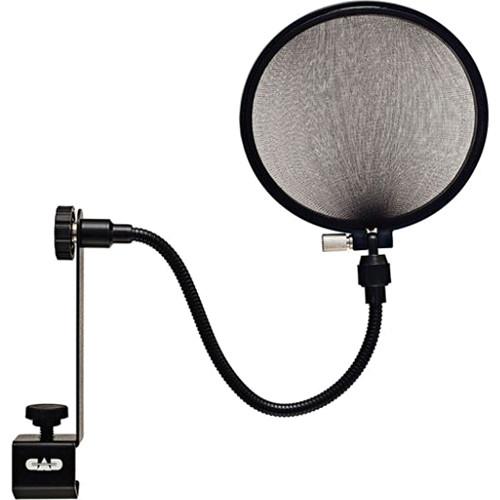

Product description The GXL2200 Studio Pack Bundle from CAD is a convenient and complete microphone solution for project studio recording. The Studio Pack consists of one GXL2200 Cardioid Condenser Microphone, one GXL1200 Cardioid Condenser Microphone, and one EPF-15A Pop Filter. The package also includes a shock mount and a mic clip. The GXL2200 Cardioid Condenser Microphone features a cardioid polar pattern which effectively minimizes noise and feedback at the off-axis sections of the capsule. The microphone is designed with high sensitivity, linear frequency response, and a low noise floor for capturing vocals and general instruments in broadcast, recording, and sound reinforcement applications. The GXL2200 also features an internal hi-pass filter and requires 48V of phantom power for operation. The GXL1200 Cardiod Condenser Microphone is a small diaphragm condenser microphone with a cardioid pattern, also effective in minimizing noise, ambiance and feedback. The high SPL handling enables loud audio signals to be reproduced without noise or distortion. The GLX1200 is housed in a slim, rugged enclosure ideal for spot capturing vocals and instruments such as guitar, strings, wood winds, overheads, cymbals, and percussion. The EPF15A Pop Filter is designed to filter your voice before it reaches the microphone for maximum vocal performance. It consists of a 6" nylon mesh screen, a slim, flexible gooseneck, and a swivel mount. In the Box CAD GXL2200 Studio Pack Bundle GXL2200 Cardioid Condenser Microphone (Silver) GXL1200 Cardioid Condenser Microphone bcuddzrsrqxqedzsasbtcyxeaxcqr Pop Filter and Gooseneck Microphone Clip Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD GXL2200 Studio Pack Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters | Transducer | Externally Biased True Condenser | | Polar Pattern | Unidirectional (Cardioid) | | Frequency Response | 30 Hz - 20 kHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | GXL-2200: Less than 20dB (A-weighted)
GXL-1200: +14dB (A-weighted) | | Maximum Input Sound Level | not specified by manufacturer | | Power Requirements | GXL-2200: 48 Volts Phantom Power
GXL-1200:P24V or P48V Phantom Power | | Output Impedance | Less than 200 ohms | | Output Connectors | 3 pin XLR type | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | GXL-2200: 2.17 x 7.72" (55 x 196mm) (Diameter x Length)
GXL-1200: .88 x 5.33" (22.35 x 135.39mm) (Diameter x Length) | | Weight | GXL-2200: 14.1 oz. (400 grams)
GXL-1200: 4.44 oz. (126 grams) |
