User Manual for CAD GXL2200 Studio Pack Bundle Click to enlarge the picture
Contents of the user manual for the CAD GXL2200 Studio Pack Bundle
- Product category: Large Diaphragm Condenser CAD
- Brand: CAD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAD Large Diaphragm Condenser
 |
User manual for the CAD GXL2200 Studio Pack Bundle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAD product will considerably shorten its lifespan!
|

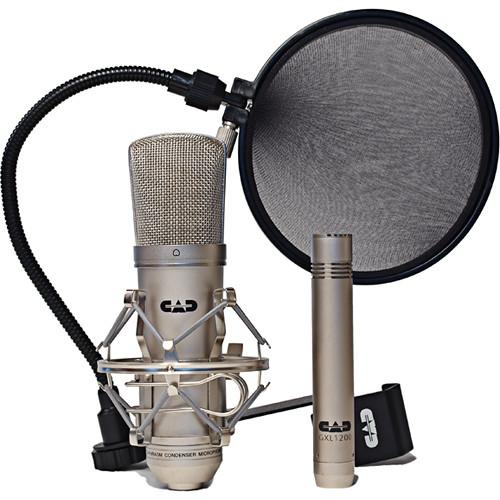

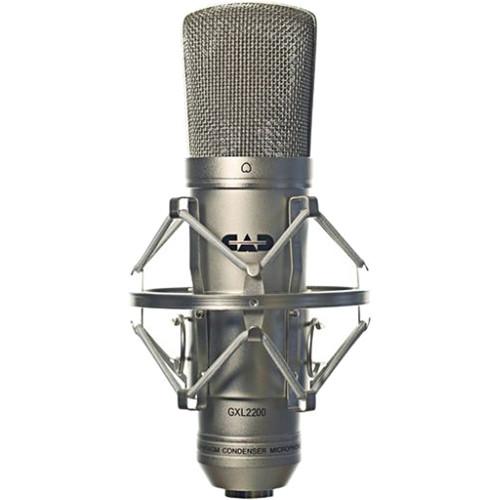

Product description The GXL2200 Studio Pack Bundle from CAD is a convenient and complete microphone solution for project studio recording. The Studio Pack consists of one GXL2200 Cardioid Condenser Microphone, one GXL1200 Cardioid Condenser Microphone, and one EPF-15A Pop Filter. The package also includes a shock mount and a mic clip. The GXL2200 Cardioid Condenser Microphone features a cardioid polar pattern which effectively minimizes noise and feedback at the off-axis sections of the capsule. The microphone is designed with high sensitivity, linear frequency response, and a low noise floor for capturing vocals and general instruments in broadcast, recording, and sound reinforcement applications. The GXL2200 also features an internal hi-pass filter and requires 48V of phantom power for operation. The GXL1200 Cardiod Condenser Microphone is a small diaphragm condenser microphone with a cardioid pattern, also effective in minimizing noise, ambiance and feedback. The high SPL handling enables loud audio signals to be reproduced without noise or distortion. The GLX1200 is housed in a slim, rugged enclosure ideal for spot capturing vocals and instruments such as guitar, strings, wood winds, overheads, cymbals, and percussion. The EPF15A Pop Filter is designed to filter your voice before it reaches the microphone for maximum vocal performance. It consists of a 6" nylon mesh screen, a slim, flexible gooseneck, and a swivel mount. - GXL2200 Cardioid Condenser Microphone (Silver) The silver GXL2200 Cardioid Condenser Microphone from CAD features a cardioid polar pattern which effectively minimizes noise and feedback at the off-axis sections of the capsule. The microphone is designed with high sensitivity, linear frequency response, and a low noise floor for capturing vocals and general instruments in broadcast, recording, and sound reinforcement applications. The GXL2200 also features an internal hi-pass filter and includes an elastic shock mount and a protective pouch. The microphone requires 48V of phantom power for operation.
- Cardioid Polar Pattern
- The cardioid polar pattern minimizes noise and ambiance at the off-axis sections of the microphone capsule.
- High Sensitivity and SPL Handling
- The high sensitivity, linear frequency response, and high SPL handling allows the microphone to be used in a wide variety of recording or sound reinforcement applications.
- Included Items
- The microphones package includes an elastic shock mount and a protective pouch.

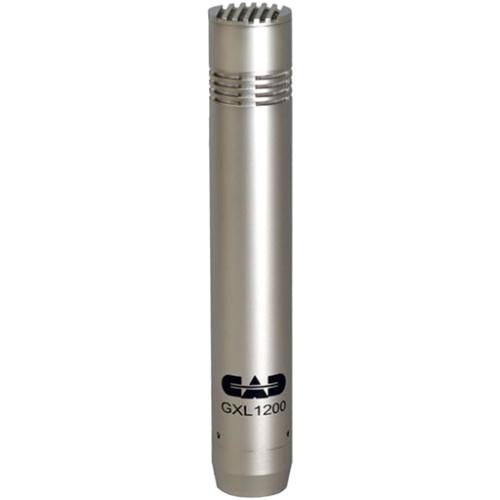

UPC: 631922102208 - GXL1200 Cardioid Condenser Microphone The GXL1200 Cardioid Condenser Microphone from CAD features a small diaphragm condenser configuration with a cardioid pattern for minimizing noise, ambiance, and feedback. It is designed for general instrument pick up and can also be used with vocals. There is a high SPL handling, enabling loud audio signals to be reproduced without noise or distortion. The GLX1200 is housed in a slim profile enclosure for spot capturing vocals and instruments such as guitar, strings, wood winds, overheads, cymbals, and percussion. The package includes a microphone clip and a protective pouch.
- Cardioid Polar Pattern
- The cardioid polar pattern is effective in minimizing noise and ambiance at the off-axis sections of the microphone capsule.
- High Sensitivity and SPL Handling
- High sensitivity, linear frequency response, and high SPL handling allow the microphone to be used in most recording or sound reinforcement applications.

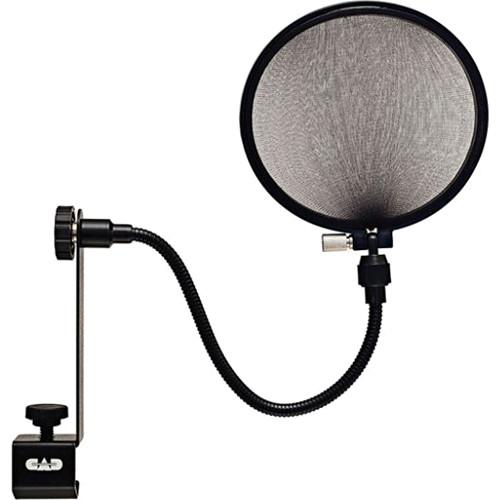

UPC: 631922102215 - Pop Filter and Gooseneck Filtering out noise due to plosive sounds and at the same time protecting your mic when recording vocals, the CAD EPF-15A Pop Filter and Gooseneck filters your voice for better vocals before it reaches the microphone. Made to fit any microphone, the all black PF001 comes with a 6" (13.5cm) nylon mesh screen and a slim, flexible gooseneck with swivel mount.
In the Box Bundle Items GXL2200 Cardioid Condenser Microphone (Silver) bbsadftffztuyqwrwwsybattxway GXL1200 Cardioid Condenser Microphone bbsadftffztuyqwrwwsybattxway Pop Filter and Gooseneck
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD GXL2200 Studio Pack Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - GXL2200 Cardioid Condenser Microphone (Silver)
| | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 20 kHz | | Equivalent Noise Level | 20 dB A-Weighted | | Maximum SPL | 130 dB SPL | | THD | 1% | | Impedance | 75 Ohms | | Sensitivity | 16 mV/Pa | | Operating Current Consumption | 3.0 µA | | Operating Voltage | 48 V | | | | Box Dimensions (LxWxH) | 13.8 x 4.3 x 3.6" | - GXL1200 Cardioid Condenser Microphone
| | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 20 kHz | | Equivalent Noise Level | 17 dB A-Weighted | | Maximum SPL | 135 dB SPL | | THD | 1% | | Impedance | 100 Ohms | | Sensitivity | -36 dBV/Pa | | Operating Current Consumption | 4.0 mA | | Operating Voltage | 48 V | | | | Box Dimensions (LxWxH) | 7.9 x 3.8 x 2.2" | - Pop Filter and Gooseneck
| | | Box Dimensions (LxWxH) | 15.0 x 8.0 x 2.0" |
