User Manual for CAD GXL2200BP Cardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the CAD GXL2200BP Cardioid Condenser Microphone
- Product category: Large Diaphragm Condenser CAD
- Brand: CAD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAD Large Diaphragm Condenser
 |
User manual for the CAD GXL2200BP Cardioid Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAD product will considerably shorten its lifespan!
|

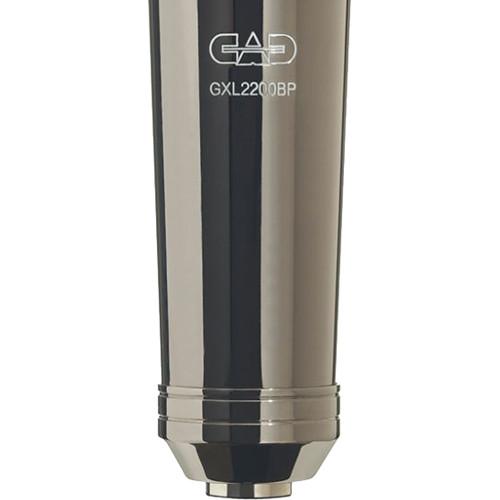

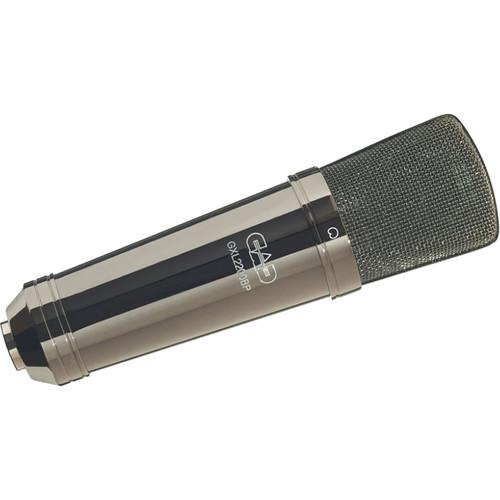

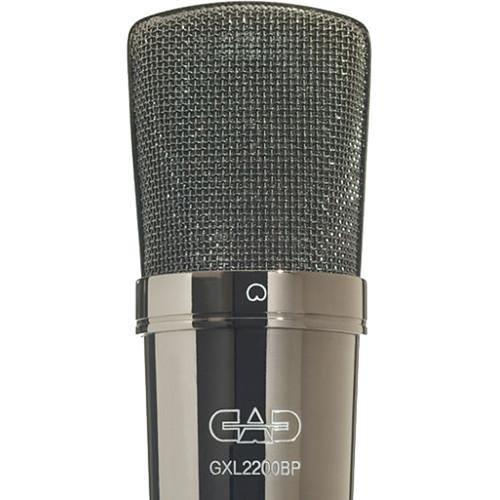

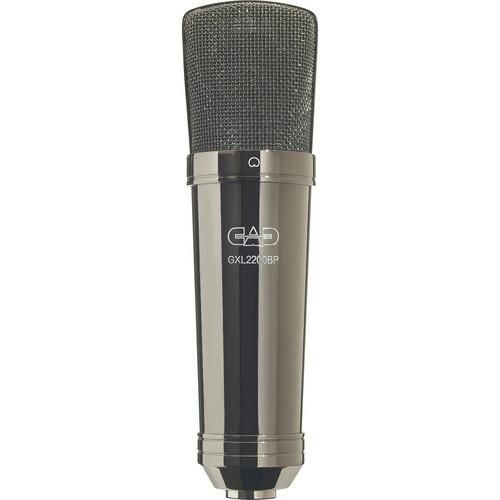

Product description The black pearl chrome finish GXL2200BP Cardioid Condenser Microphone from CAD features a cardioid polar pattern which effectively minimizes noise and feedback at the off-axis sections of the capsule. The microphone is designed with high sensitivity, linear frequency response, and a low noise floor for capturing vocals and general instruments in broadcast, recording, and sound reinforcement applications. The GXL2200 also features an internal hi-pass filter and includes an elastic shock mount and a protective pouch. The microphone requires 48V of phantom power for operation. - Cardioid Polar Pattern
- The cardioid polar pattern minimizes noise and ambiance at the off-axis sections of the microphone capsule.
- High Sensitivity and SPL Handling
- The high sensitivity, linear frequency response, and high SPL handling allows the microphone to be used in a wide variety of recording or sound reinforcement applications.
- Included Items
- The microphones package includes an elastic shock mount and a protective pouch.
UPC: 631922105773 In the Box CAD GXL2200BP Cardioid Condenser Microphone (Black Pearl Chrome Finish) Elastic Shock Mount Protective Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD GXL2200BP Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAD GXL-2200 Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 20 kHz | | Equivalent Noise Level | 20 dB A-Weighted | | Maximum SPL | 130 dB SPL | | THD | 1% | | Impedance | 75 Ohms | | Sensitivity | 16 mV/Pa | | Operating Current Consumption | 3.0 µA | | Operating Voltage | 48 V | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 14.1 x 4.4 x 3.6" |
