User Manual for CAD GXLD2BB Digital Dual-Channel Wireless Microphone System with Two Bodypack Transmitters Click to enlarge the picture
Contents of the user manual for the CAD GXLD2BB Digital Dual-Channel Wireless Microphone
- Product category: Wireless Systems CAD
- Brand: CAD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAD Wireless Systems
|
User manual for the CAD GXLD2BB Digital Dual-Channel Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAD product will considerably shorten its lifespan!
|

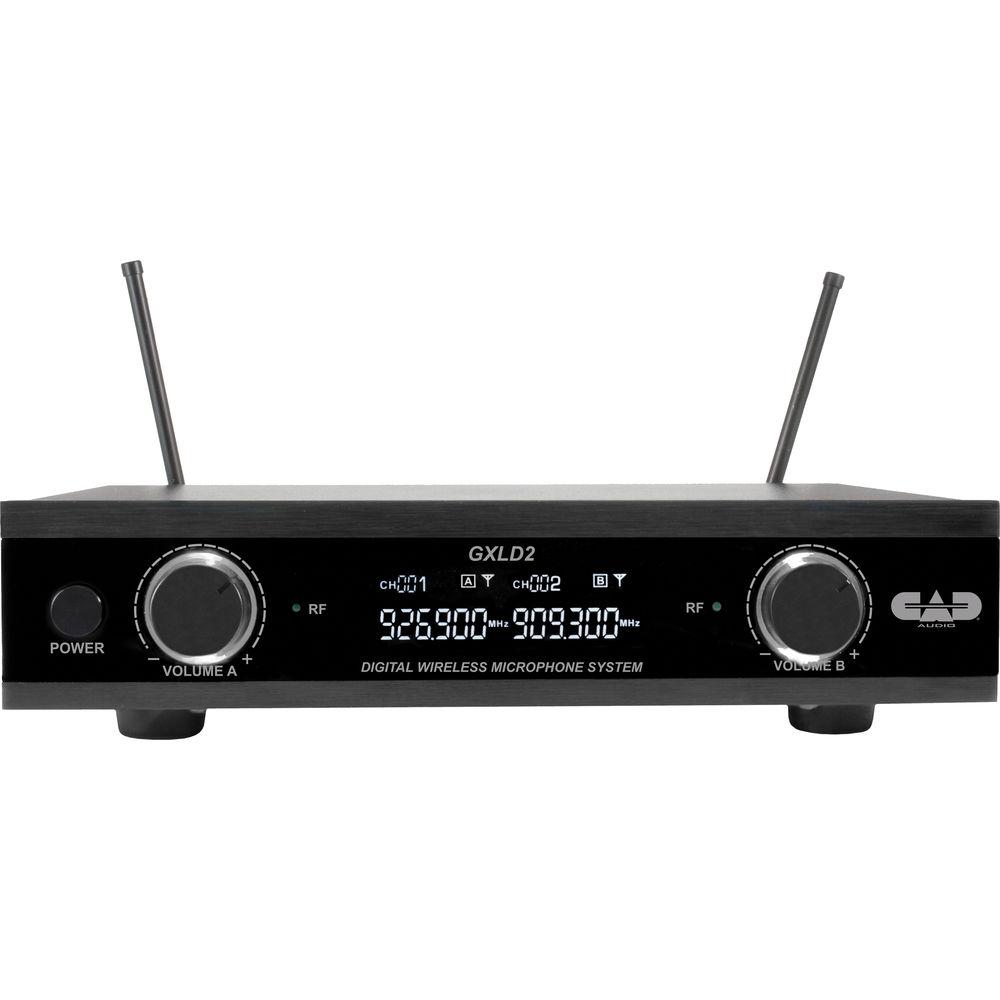

Product description The CAD GXLD2BB Dual-Channel Digital Wireless Microphone System with Two Bodypack Transmitters is intended for up to two speakers who prefer the hands-free convenience of a wearable microphone when presenting for school functions, corporate trainings, houses of worship, and more. The system consists of a two-channel receiver, two bodypack wireless transmitters, two headworn mics, and two guitar cables. It delivers digital high-definition audio and operates in the AH: 902.9 to 915.5 MHz frequency band, which is free from TV and FCC regulatory issues. The receiver features volume knobs for each channel and RF indicator lights to show connectivity between the receiver and the transmitters. The back panel includes two balanced XLR output connectors and an unbalanced, mono Mix output on a 1/4" connector. Two antennas with advanced dipole technology help increase the operating distance. The bodypacks are equipped with on/off and mute controls and run on two AA batteries for approximately 10 hours. The WXHW headworn microphones feature hypercardioid polar patterns to minimize unwanted feedback when used near speakers. The WXGTR cables enable musicians to configure the GXLD2BB into guitar or bass wireless systems. - RXGXLD2 Receiver
-
- Two discrete channels of digital wireless packaged in one receiver chassis
- Operates in the AH: 902.9 to 915.5 MHz frequency band
- Digital high-definition audio
- Advanced dipole antenna technology for increased operating distance
- Two discrete XLR balanced outputs, one for each channel
- 1/4" unbalanced mix output
- High-contrast LCD display
- RF indicator lights show connectivity between the receiver and the transmitters
- Advanced dipole antenna technology for increased operating range

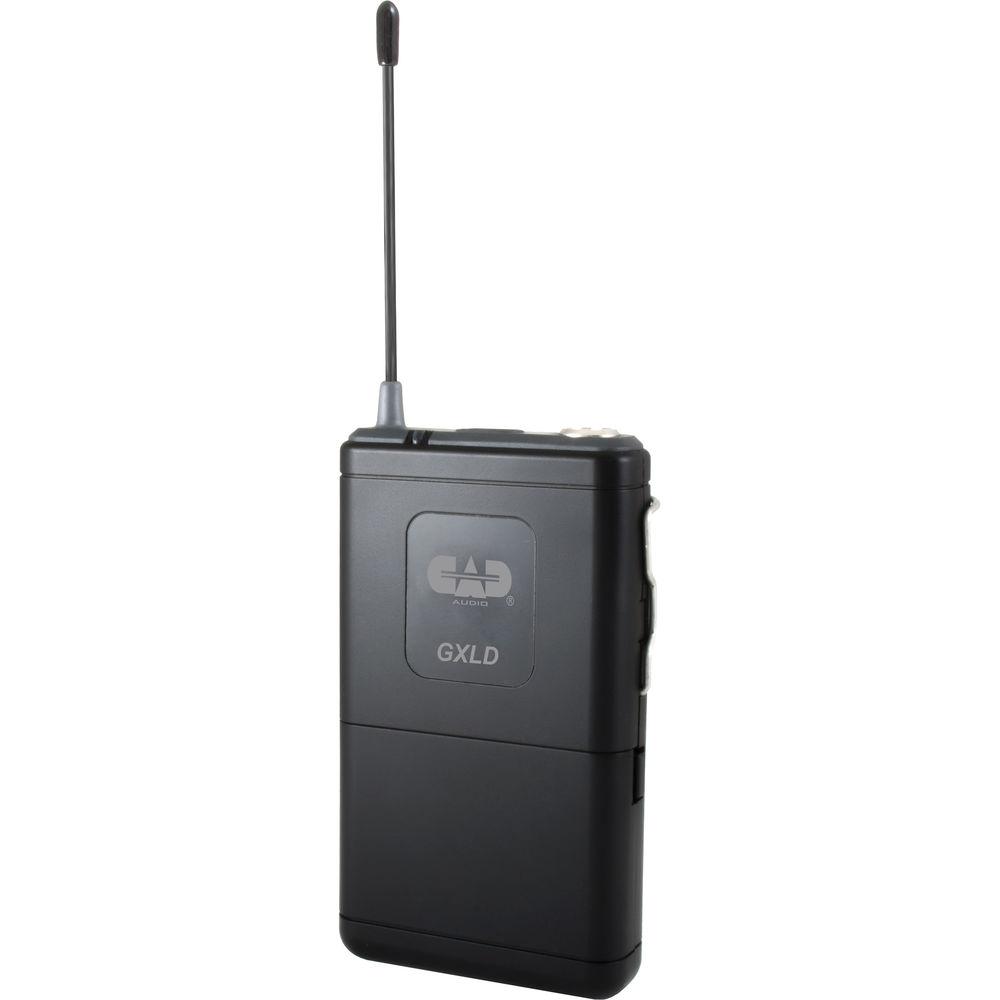

- TXBGXLD Bodypack Transmitter
-
- On/off and mute switches
- Battery-life indicator
- Over 10 hours of battery life with two fresh AA batteries
- TB4M mic input connector
- Battery compartment
- Antenna
- WXHW Headworn Microphone
-
- Condenser element
- Hypercardioid polar pattern
- TA4F connector
UPC: 631922108446 In the Box CAD GXLD2BB Digital Dual-Channel Wireless Microphone System with Two Bodypack Transmitters (AH: 902.9 to 915.5 MHz) RXGXLD2 Dual Receiver 2 x TXBGXLD Bodypack Transmitters 2 x StagePass WXHW Headworn Microphone 2 x WXGTR Guitar Cables AC Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD GXLD2BB Digital Dual-Channel Wireless Microphone System with Two Bodypack Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAD GXLD2BBAH Specs | Type | Dual-channel wireless receiver | Frequency Band | AH: 902.9 to 915.5 MHz | Output Level | +10 dBv, maximum | Frequency Response | 20 Hz to 20 kHz | Antennas | 2 x antennas with dipole antenna technology | Output Connectors | 2 x XLR, male, balanced 1 x 1/4" / 6.3 mm, female, unbalanced (mono mix) | Controls | 2 x volume control knobs | Indicators | 2 x RF indicator lights | Display | LCD display | | Connector | TB4M | Frequency Response | 20 Hz to 20 kHz | Input Level | Microphone Input: 1.5 Vrms (5 Vpp), maximum Instrument Input: 1.5 Vrms (5 Vpp), maximum | RF Output | 10 mW | Modulation | High-definition digital QPSK | Switches | Power on/off switch Mute on/off switch | Indicators | LED indicator light | Power Requirements | 2 x AA alkaline or rechargeable batteries | Battery Life | >10 hours (alkaline) | | Type | Headworn, condenser mic | Polar Pattern | Hypercardioid | Connector | TA4F | | Connector 1 | 1/4" / 6.3 mm TS jack, male | Connector 2 | TA4F |
