User Manual for CAD GXLD2HB Digital Dual-Channel Wireless Microphone System with Handheld and Bodypack Transmitters Click to enlarge the picture
Contents of the user manual for the CAD GXLD2HB Digital Dual-Channel Wireless Microphone
- Product category: Wireless Systems CAD
- Brand: CAD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAD Wireless Systems
 |
User manual for the CAD GXLD2HB Digital Dual-Channel Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAD product will considerably shorten its lifespan!
|

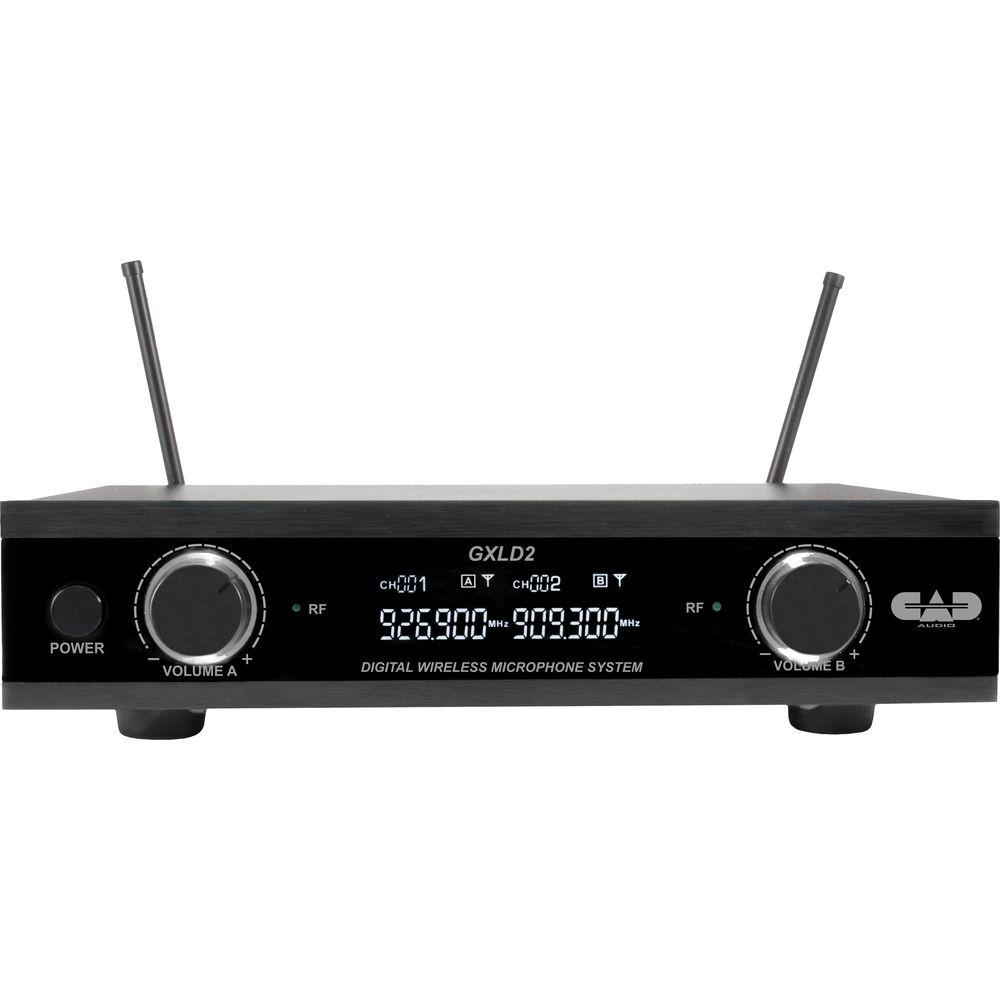

Product description The CAD GXLD2HB Digital Dual-Channel Wireless Microphone System with Handheld and Bodypack Transmitters is intended for up to two vocalists or speakers who want the hands-free convenience of a wearable microphone or the ability to control the sound of their voice using a handheld microphone—with the option of passing a mic around when performing on stage, or for school functions, corporate trainings, houses of worship, and more.The system consists of a two-channel receiver, a handheld wireless microphone transmitter, a bodypack transmitter, a headworn mic, and a guitar cable. It delivers digital high-definition audio and operates in the AI: 909.3 to 926.8 MHz frequency band, which is free from TV and FCC regulatory issues.The receiver features volume knobs for each channel and RF indicator lights to show connectivity between the receiver and the transmitters. The back panel includes two balanced XLR output connectors and an unbalanced, mono Mix output on a 1/4" connector. Two antennas with advanced dipole technology help increase the operating distance.The microphone features a CADLive D38 dynamic capsule with supercadioid polar pattern for reduced feedback in live situations. The mic runs on two AA batteries for approximately 10 hours and is equipped with on/off and mute functions to help conserve battery life.The bodypack is also equipped with on/off and mute controls and runs on two AA batteries for approximately 10 hours. The WXHW headworn microphone features a hypercardioid polar pattern to minimize unwanted feedback when used near speakers. The WXGTR cable enables musicians to configure the GXLD2HB into a guitar or bass wireless system. - RXGXLD2 Receiver
-
- Two discrete channels of digital wireless packaged in one receiver chassis
- Operates in the AI: 909.3 to 926.8 MHz frequency band
- Digital high-definition audio
- Advanced dipole antenna technology for increased operating distance
- Two discrete XLR balanced outputs, one for each channel
- 1/4" unbalanced mix output
- High-contrast LCD display
- RF indicator lights show connectivity between the receiver and the transmitters
- Advanced dipole antenna technology for increased operating range

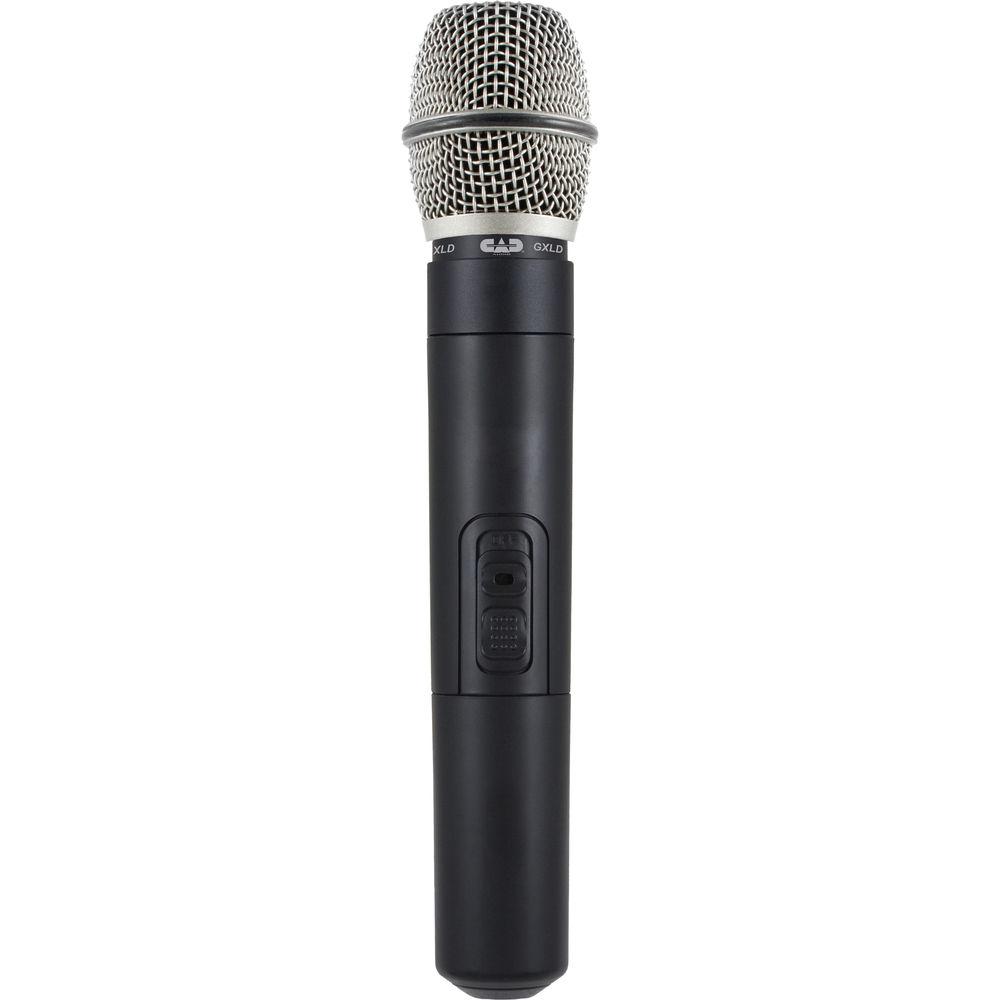

- TXHGXLD Handheld Transmitter
-
- Dynamic microphone with CADLive D38 capsule
- Supercardioid polar pattern
- On/off and mute switches
- Battery-life indicator
- Over 10 hours of battery life with two fresh AA batteries

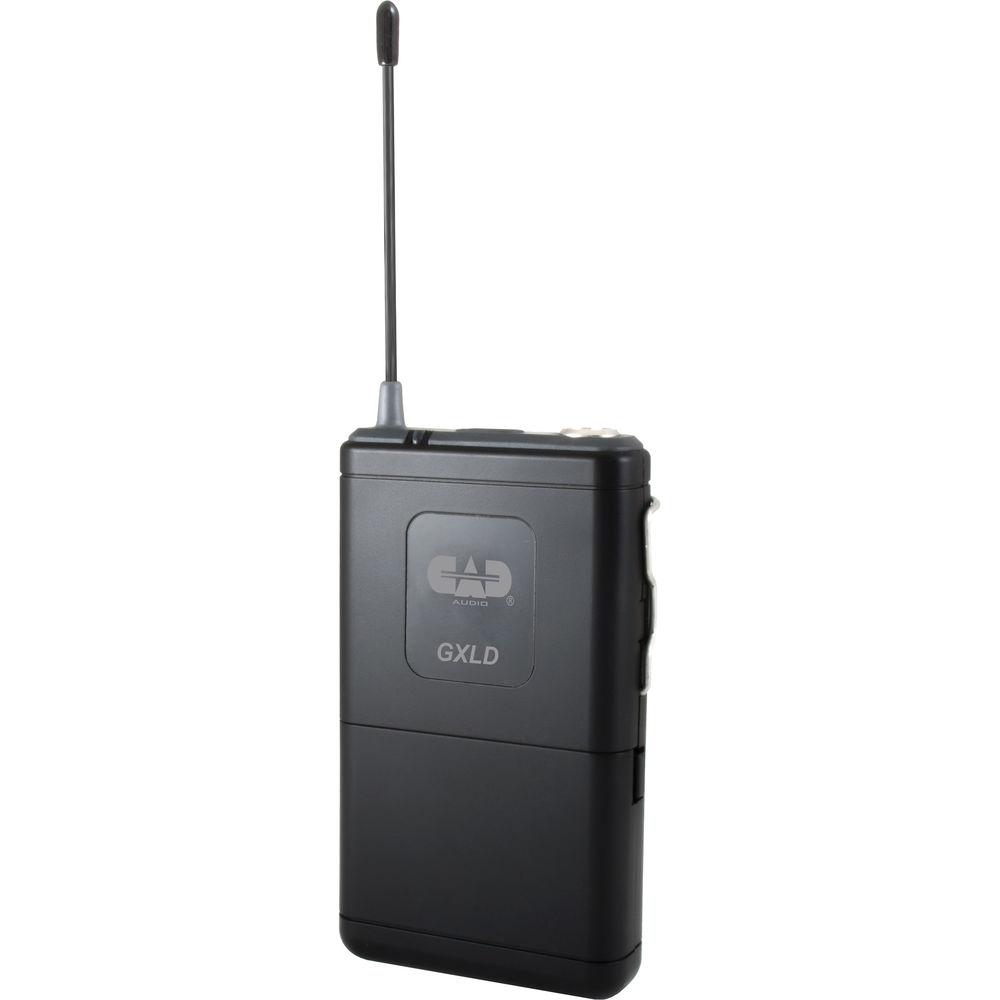

- TXBGXLD Bodypack Transmitter
-
- On/off and mute switches
- Battery-life indicator
- Over 10 hours of battery life with two fresh AA batteries
- TB4M mic input connector
- Battery compartment
- Antenna
- WXHW Headworn Microphone
-
- Condenser element
- Hypercardioid polar pattern
- TA4F connector

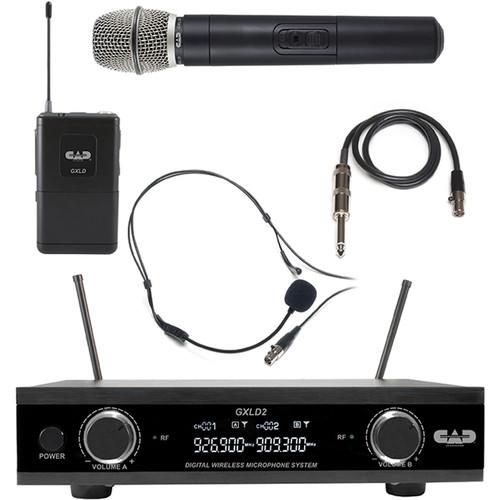

UPC: 631922108439 In the Box CAD GXLD2HB Digital Dual-Channel Wireless Microphone System with Handheld and Bodypack Transmitters (AI: 909.3 to 926.8 MHz) RXGXLD2 Dual Receiver TXHGXLD Handheld Transmitter with CADLive D38 Capsule TXBGXLD Bodypack Transmitter StagePass WXHW Headworn Microphone WXGTR Guitar Cable AC Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD GXLD2HB Digital Dual-Channel Wireless Microphone System with Handheld and Bodypack Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAD GXLD2HBAI Specs | | | Type | Dual-channel wireless receiver | | Frequency Band | AI: 909.3 to 926.8 MHz | | Output Level | +10 dBv, maximum | | Frequency Response | 20 Hz to 20 kHz | | Antennas | 2 x antennas with dipole antenna technology | | Output Connectors | 2 x XLR, male, balanced
1 x 1/4" / 6.3 mm, female, unbalanced (mono mix) | | Controls | 2 x volume control knobs | | Indicators | 2 x RF indicator lights | | Display | LCD display | | | | Operating Principle | Moving-coil, dynamic | | Capsule | CADLive D38 | | Polar Pattern | Supercardioid | | Frequency Response | 80 Hz to 16 kHz | | Sensitivity | -43 dBV (6.8 mV) at 1 Pa | | Maximum SPL | 145 dB | | RF Output | 10 mW | | Modulation | High-definition digital QPSK | | Switches | Power on/off switch
Mute on/off switch | | Indicators | Power indicator light
Battery-life indicator light | | Power Requirements | 2 x AA alkaline or rechargeable batteries | | Battery Life | > 10 hours (alkaline) | | | | Connector | TB4M | | Frequency Response | 20 Hz to 20 kHz | | Input Level | Microphone Input: 1.5 Vrms (5 V pp), maximum
Instrument Input: 1.5 Vrms (5 V pp), maximum | | RF Output | 10 mW | | Modulation | High-definition digital QPSK | | Switches | Power on/off switch
Mute on/off switch | | Indicators | LED indicator light | | Power Requirements | 2 x AA alkaline or rechargeable batteries | | Battery Life | > 10 hours (alkaline) | | | | Type | Headworn, condenser mic | | Polar Pattern | Hypercardioid | | Connector | TA4F | | | | Connector 1 | 1/4" / 6.3 mm TS jack, male | | Connector 2 | TA4F |
