CAD GXLD2HB Digital Dual-Channel Wireless Microphone

Search your instruction manual in PDF to download

User Manual for CAD GXLD2HB Digital Dual-Channel Wireless Microphone System with Handheld and Bodypack Transmitters

Click to enlarge the picture
CAD GXLD2HB Digital Dual-Channel Wireless Microphone System with Handheld and Bodypack Transmitters Contents of the user manual for the CAD GXLD2HB Digital Dual-Channel Wireless Microphone
  • Product category: Wireless Systems CAD
  • Brand: CAD
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for CAD Wireless Systems

CAD GXLD2HB Digital Dual-Channel Wireless Microphone System with Handheld and Bodypack Transmitters CAD GXLD2HB Digital Dual-Channel Wireless Microphone System with Handheld and Bodypack Transmitters CAD GXLD2HB Digital Dual-Channel Wireless Microphone System with Handheld and Bodypack Transmitters
User manual for the CAD GXLD2HB Digital Dual-Channel Wireless Microphone contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any CAD product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official CAD user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a CAD product will considerably shorten its lifespan!



Product description

The CAD GXLD2HB Digital Dual-Channel Wireless Microphone System with Handheld and Bodypack Transmitters is intended for up to two vocalists or speakers who want the hands-free convenience of a wearable microphone or the ability to control the sound of their voice using a handheld microphone—with the option of passing a mic around when performing on stage, or for school functions, corporate trainings, houses of worship, and more.The system consists of a two-channel receiver, a handheld wireless microphone transmitter, a bodypack transmitter, a headworn mic, and a guitar cable. It delivers digital high-definition audio and operates in the AH: 902.9 to 915.5 MHz frequency band, which is free from TV and FCC regulatory issues.The receiver features volume knobs for each channel and RF indicator lights to show connectivity between the receiver and the transmitters. The back panel includes two balanced XLR output connectors and an unbalanced, mono Mix output on a 1/4" connector. Two antennas with advanced dipole technology help increase the operating distance.The microphone features a CADLive D38 dynamic capsule with supercadioid polar pattern for reduced feedback in live situations. The mic runs on two AA batteries for approximately 10 hours and is equipped with on/off and mute functions to help conserve battery life.The bodypack is also equipped with on/off and mute controls and runs on two AA batteries for approximately 10 hours. The WXHW headworn microphone features a hypercardioid polar pattern to minimize unwanted feedback when used near speakers. The WXGTR cable enables musicians to configure the GXLD2HB into a guitar or bass wireless system.

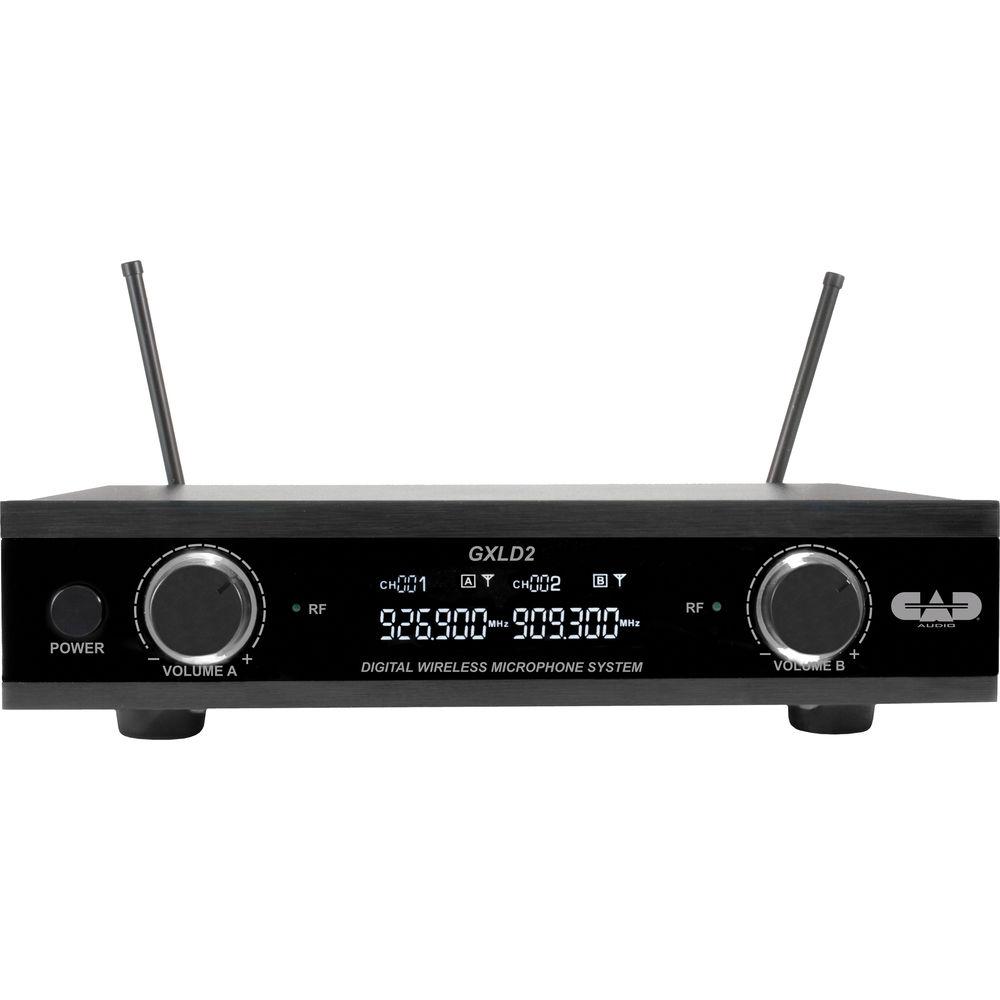

    RXGXLD2 Receiver
    • Two discrete channels of digital wireless packaged in one receiver chassis
    • Operates in the AH: 902.9 to 915.5 MHz frequency band
    • Digital high-definition audio
    • Advanced dipole antenna technology for increased operating distance
    • Two discrete XLR balanced outputs, one for each channel
    • 1/4" unbalanced mix output
    • High-contrast LCD display
    • RF indicator lights show connectivity between the receiver and the transmitters
    • Advanced dipole antenna technology for increased operating range

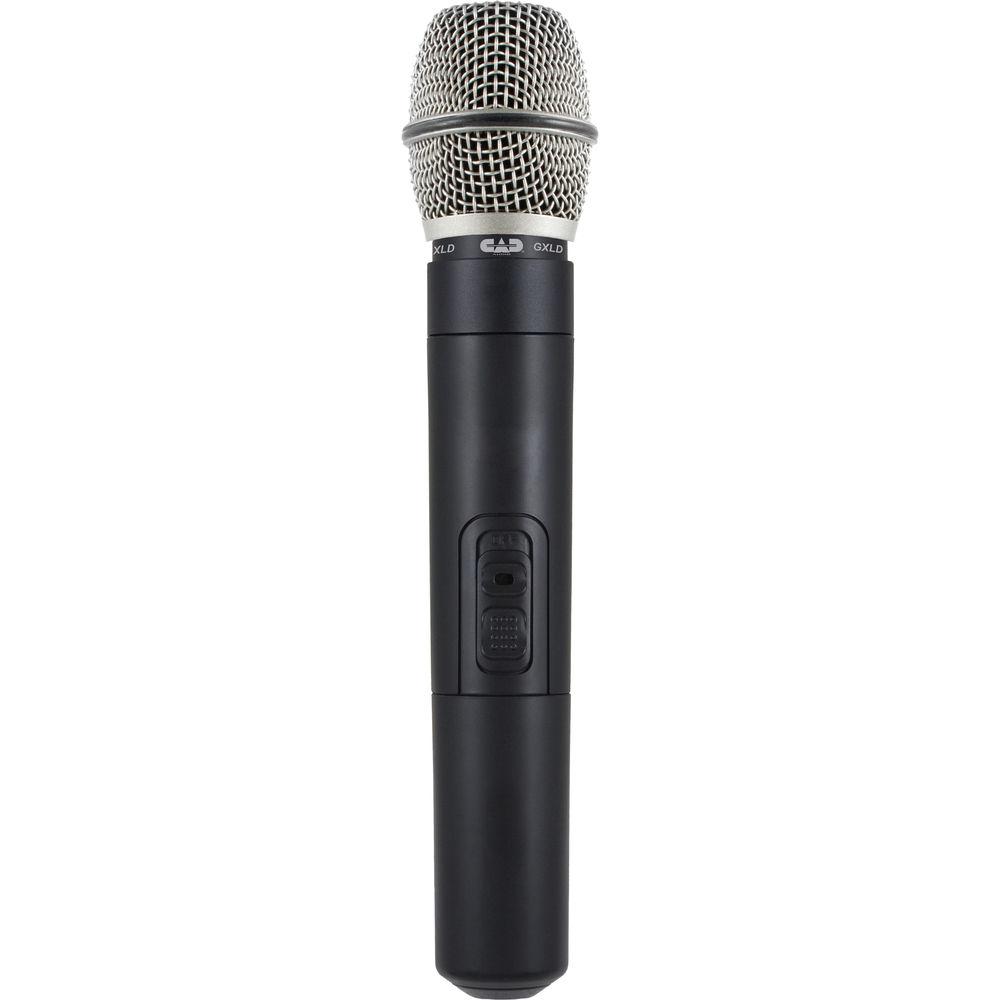

    TXHGXLD Handheld Transmitter
    • Dynamic microphone with CADLive D38 capsule
    • Supercardioid polar pattern
    • On/off and mute switches
    • Battery-life indicator
    • Over 10 hours of battery life with two fresh AA batteries

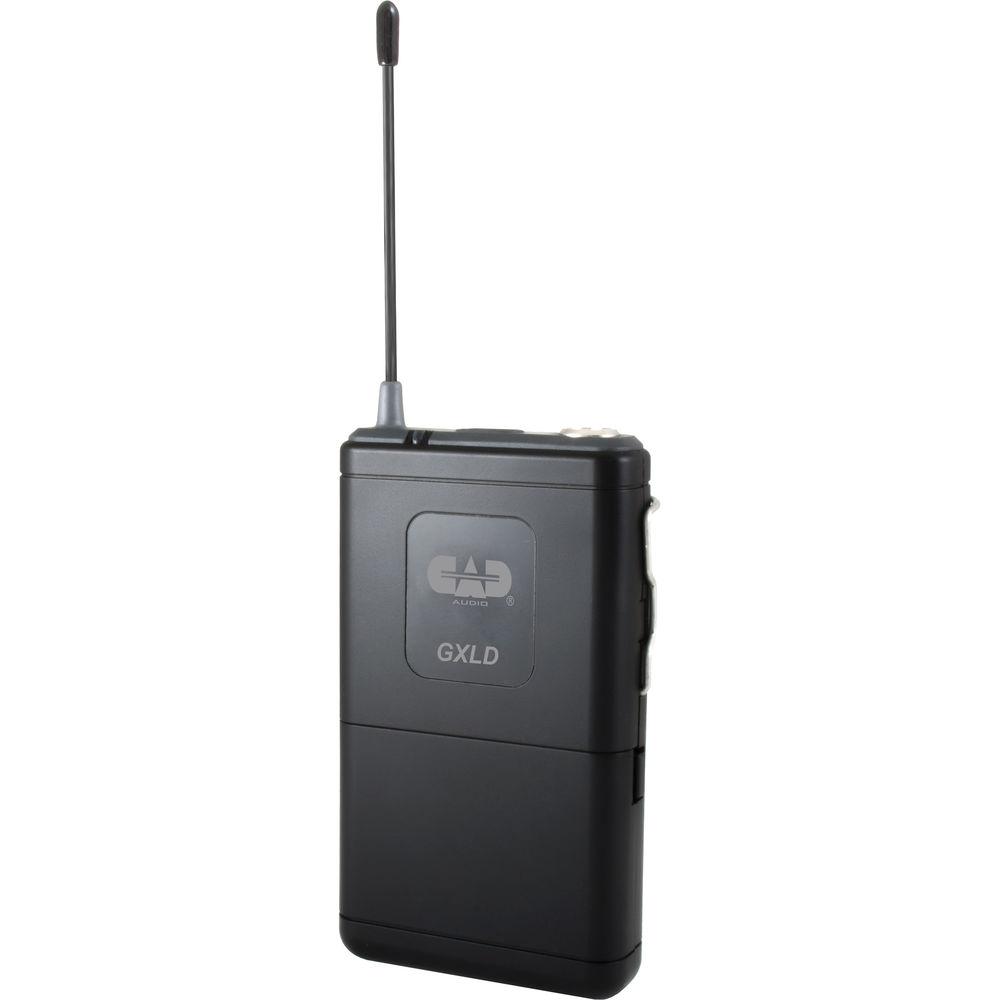

    TXBGXLD Bodypack Transmitter
    • On/off and mute switches
    • Battery-life indicator
    • Over 10 hours of battery life with two fresh AA batteries
    • TB4M mic input connector
    • Battery compartment
    • Antenna
    WXHW Headworn Microphone
    • Condenser element
    • Hypercardioid polar pattern
    • TA4F connector
UPC: 631922108422 In the Box CAD GXLD2HB Digital Dual-Channel Wireless Microphone System with Handheld and Bodypack Transmitters (AH: 902.9 to 915.5 MHz)
  • RXGXLD2 Dual Receiver
  • TXHGXLD Handheld Transmitter with CADLive D38 Capsule
  • TXBGXLD Bodypack Transmitter
  • StagePass WXHW Headworn Microphone
  • WXGTR Guitar Cable
  • AC Adapter
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the CAD GXLD2HB Digital Dual-Channel Wireless Microphone System with Handheld and Bodypack Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    CAD GXLD2HBAH Specs

    Type Dual-channel wireless receiver
    Frequency Band AH: 902.9 to 915.5 MHz
    Output Level +10 dBv, maximum
    Frequency Response 20 Hz to 20 kHz
    Antennas 2 x antennas with dipole antenna technology
    Output Connectors 2 x XLR, male, balanced

    1 x 1/4" / 6.3 mm, female, unbalanced (mono mix)
    Controls 2 x volume control knobs
    Indicators 2 x RF indicator lights
    Display LCD display
    Operating Principle Moving-coil, dynamic
    Capsule CADLive D38
    Polar Pattern Supercardioid
    Frequency Response 80 Hz to 16 kHz
    Sensitivity -43 dBV (6.8 mV) at 1 Pa
    Maximum SPL 145 dB
    RF Output 10 mW
    Modulation High-definition digital QPSK
    Switches Power on/off switch

    Mute on/off switch
    Indicators Power indicator light

    Battery-life indicator light
    Power Requirements 2 x AA alkaline or rechargeable batteries
    Battery Life > 10 hours (alkaline)
    Connector TB4M
    Frequency Response 20 Hz to 20 kHz
    Input Level Microphone Input: 1.5 Vrms (5 V pp), maximum

    Instrument Input: 1.5 Vrms (5 V pp), maximum
    RF Output 10 mW
    Modulation High-definition digital QPSK
    Switches Power on/off switch

    Mute on/off switch
    Indicators LED indicator light
    Power Requirements 2 x AA alkaline or rechargeable batteries
    Battery Life > 10 hours (alkaline)
    Type Headworn, condenser mic
    Polar Pattern Hypercardioid
    Connector TA4F
    Connector 1 1/4" / 6.3 mm TS jack, male
    Connector 2 TA4F
    Package Weight 3.55 lb
    Box Dimensions (LxWxH) 17.7 x 17.5 x 2.7"
