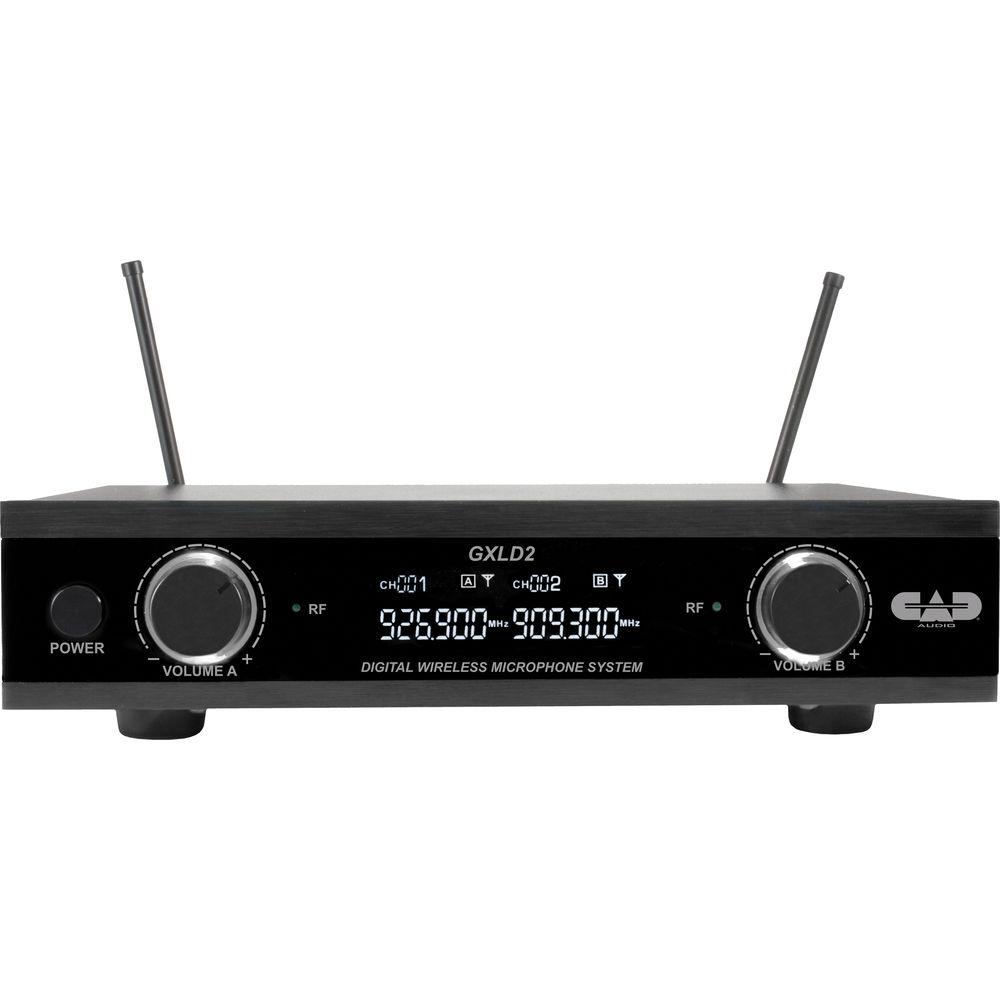

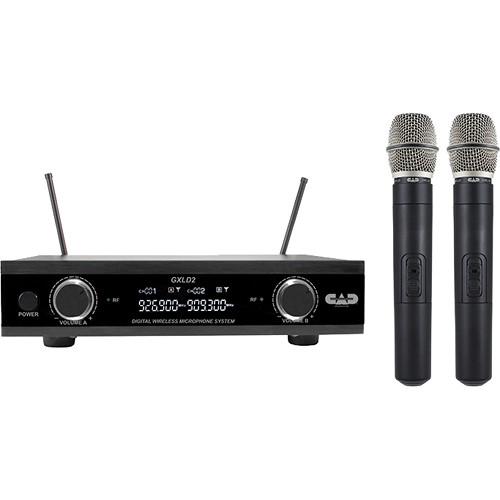

Product description The CAD GXLD2HH Dual-Channel Digital Wireless Microphone System with Two Handheld Transmitters is intended for up to two vocalists or speakers who want the ability to control the sound of their voice using handheld microphones and the flexibility of passing a mic around, when performing on stage, or for school functions, corporate trainings, houses of worship, and more. The system consists of a two-channel receiver and two handheld wireless microphone transmitters. It delivers digital high-definition audio and operates in the AH: 902.9 to 915.5 MHz frequency band, which is free from TV and FCC regulatory issues. The receiver features volume knobs for each channel and RF indicator lights to show connectivity between the receiver and the transmitters. The back panel includes two balanced XLR output connectors and an unbalanced, mono Mix output on a 1/4" connector. Two antennas with advanced dipole technology help increase the operating distance. The microphones feature CADLive D38 dynamic capsules with supercadioid polar pattern for reduced feedback in live situations. The mics run on two AA batteries for approximately 10 hours and are equipped with on/off and mute functions to help conserve battery life. - RXGXLD2 Receiver
-
- Two discrete channels of digital wireless packaged in one receiver chassis
- Operates in the AH: 902.9 to 915.5 MHz frequency band
- Digital high-definition audio
- Advanced dipole antenna technology for increased operating distance
- Two discrete XLR balanced outputs, one for each channel
- 1/4" unbalanced mix output
- High-contrast LCD display
- RF indicator lights show connectivity between the receiver and the transmitters
- Advanced dipole antenna technology for increased operating range

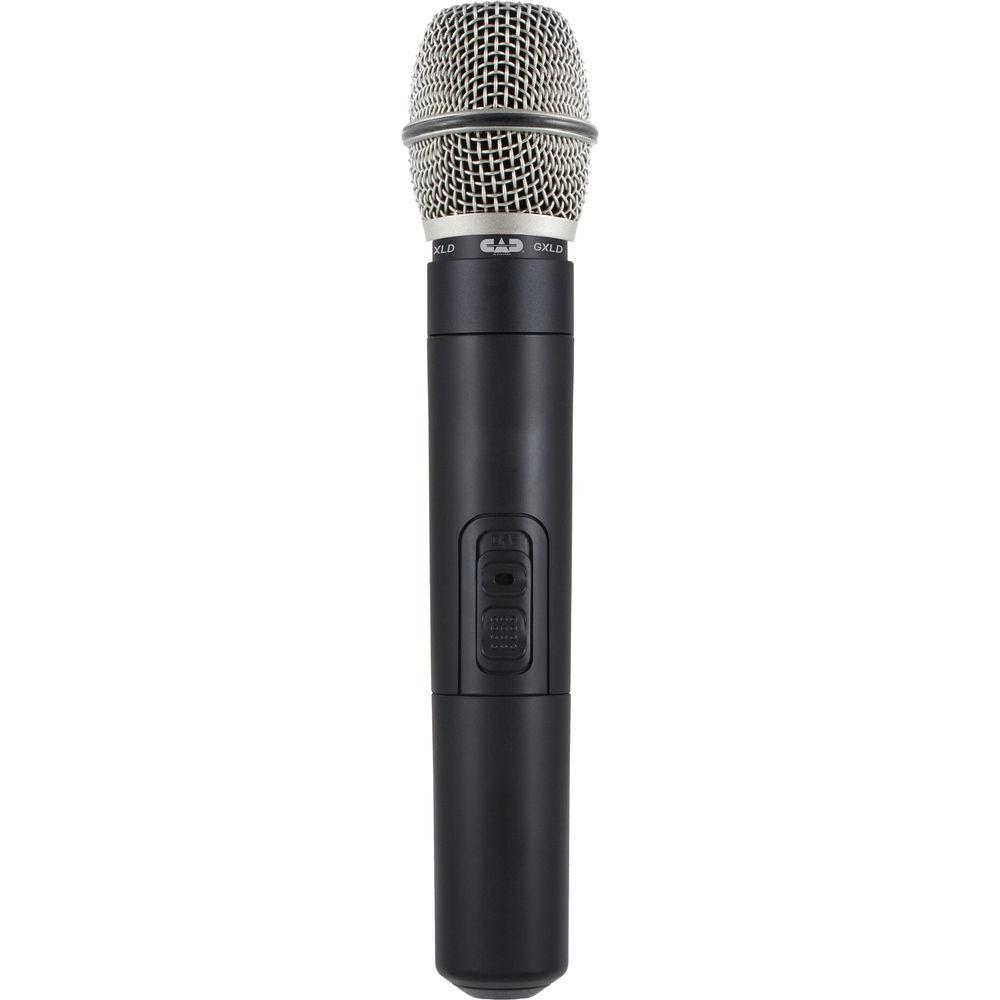

- TXHGXLD Handheld Transmitter
-
- Dynamic microphone with CADLive D38 capsule
- Supercardioid polar pattern
- On/off and mute switches
- Battery-life indicator
- Over 10 hours of battery life with two fresh AA batteries
UPC: 631922108385 In the Box CAD GXLD2HH Digital Dual-Channel Wireless Microphone System with Two Handheld Transmitters (AH: 902.9 to 915.5 MHz) RXGXLD2 Dual Receiver 2 x TXHGXLD Handheld Transmitters with CADLive D38 Capsules AC Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD GXLD2HH Digital Dual-Channel Wireless Microphone System with Two Handheld Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAD GXLD2HHAH Specs | | | Type | Dual-channel wireless receiver | | Frequency Band | AH: 902.9 to 915.5 MHz | | Output Level | +10 dBv, maximum | | Frequency Response | 20 Hz to 20 kHz | | Antennas | 2 x antennas with dipole antenna technology | | Output Connectors | 2 x XLR, male, balanced
1 x 1/4" / 6.3 mm, female, unbalanced (mono mix) | | Controls | 2 x volume control knobs | | Indicators | 2 x RF indicator lights | | Display | LCD display | | | | Operating Principle | Moving-coil, dynamic | | Capsule | CADLive D38 | | Polar Pattern | Supercardioid | | Frequency Response | 80 Hz to 16 kHz | | Sensitivity | -43 dBV (6.8 mV) at 1 Pa | | Maximum SPL | 145 dB | | RF Output | 10 mW | | Modulation | High-definition digital QPSK | | Switches | Power on/off switch
Mute on/off switch | | Indicators | Power indicator light
Battery-life indicator light | | Power Requirements | 2 x AA alkaline or rechargeable batteries | | Battery Life | >10 hours (alkaline) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 18.0 x 13.0 x 3.0" |
