User Manual for CAD GXLUHB UHF 2-Channel Handheld & Bodypack Wireless System Click to enlarge the picture
Contents of the user manual for the CAD GXLUHB UHF 2-Channel Handheld &
- Product category: Wireless Systems CAD
- Brand: CAD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAD Wireless Systems
|
User manual for the CAD GXLUHB UHF 2-Channel Handheld & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAD product will considerably shorten its lifespan!
|

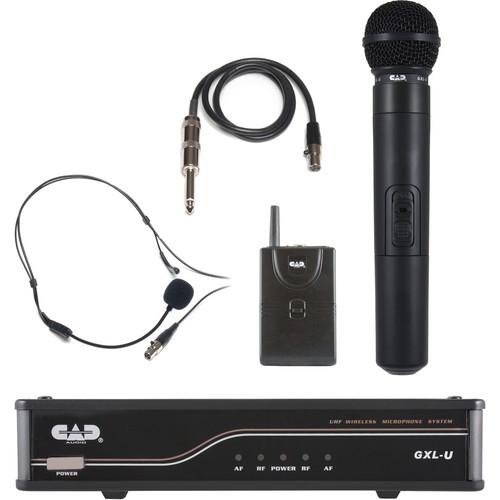

Product description The GXLUHB UHF 2-Channel Wireless System from CAD includes an RXGXLU 2-channel wireless receiver, a TXBGXLU bodypack transmitter, a TXHGXLU handheld mic transmitter, a WXHM headworn mic, and a WXGTR guitar cable. It is set to CAD's L frequency band at 567.1 and 593.5 MHz.
Both the bodypack and handheld transmitters are powered by 2 AA batteries for approximately 10 hours of operation. The included headworn mic and guitar cable allow you to use the bodypack transmitter for vocals as well as instruments.
The receiver features individual channel outputs, XLR for channel A and a 1/4" out for channel B in addition to an XLR mix output. -
- Two discrete channels of wireless packaged in one receiver chassis
- Antenna that recesses when not in use
- Each channel has RF and AF indicator lights that indicate the presence of connectivity and audio source
- Three output options on the receiver for maximum performance and flexibility of use:
- Balanced XLR discrete output
- Balanced XLR mixed output
- 1/4" output for output to a guitar amp or mixer equipped with 1/4" input connections
- Handheld and bodypack transmitters outfitted with mute and on positions for flexibility of use
- Handheld transmitter features battery life indicator
UPC: 631922106534 In the Box CAD GXLUHB UHF 2-Channel Handheld & Bodypack Wireless System (L: 567.1, 593.5 MHz) WXGTR Heavy Duty Instrument Cable StagePass WXHW Headworn Microphone TXBGXLU Bodypack Transmitter TXHGXLU Handheld Transmitter RXGXLU Receiver Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD GXLUHB UHF 2-Channel Handheld & Bodypack Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAD GXLUHB-L Specs | | | Maximum Output Level | 6 dBV | | Output Impedance | 800 Ω | | Frequency Response | 20 Hz to 20 kHz | | Frequency Band | UHF | | RF Sensitivity | -105 dBm | | Output | 2x XLR-M
1x 1/4" (6.3 mm) | | | | Operating Principle | Handheld: Moving coil dynamic
Bodypack: N/A | | Polar Pattern | Handheld: Supercardioid
Bodypack: N/A | | Frequency Response | Handheld: 80 Hz to 16 kHz
Bodypack: 40 Hz to 20 kHz | | Sensitivity | Handheld: -33 dBV (22 mV) @ 1 Pa
Bodypack: N/A | | Maximum SPL | Handheld: 135 dB
Bodypack: N/A | | Dynamic Range | Handheld: > 105 dBA
Bodypack: > 105 dBA | | RF Output | Handheld: 10 mW
Bodypack: 10 mW | | Modulation | Handheld: FM
Bodypack: FM | | Maximum Input Level | Handheld: N/A
Bodypack: Mic input, -6 dBV; Instrument input, +10 dBV | | Power Requirements | Handheld: 2x AA alkaline or rechargeable
Bodypack: 2x AA alkaline or rechargeable | | Battery Life | Handheld: >10 hours (alkaline)
Bodypack: >10 hours (alkaline) |
