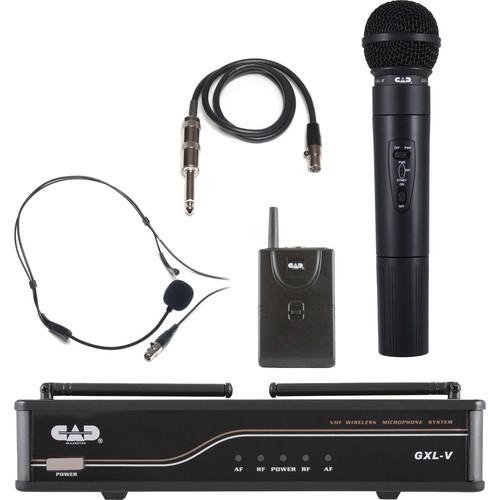

User Manual for CAD GXLV 2-Channel Handheld and Bodypack VHF Wireless System Click to enlarge the picture
Contents of the user manual for the CAD GXLV 2-Channel Handheld and Bodypack
- Product category: Wireless Systems CAD
- Brand: CAD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAD Wireless Systems
|
User manual for the CAD GXLV 2-Channel Handheld and Bodypack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAD product will considerably shorten its lifespan!
|
Product description The GXLV 2-Channel Handheld and Bodypack VHF Wireless System from CAD includes a RXGXLV 2-channel wireless receiver, a TXHGXLV handheld microphone transmitter, a TXBGXLV bodypack transmitter, a WXHM headworn condenser mic, and a WXGTR guitar cable adapter. It is set to CAD's J frequency band at 187.75 and 205.75 MHz.
The handheld and bodypack transmitters each have on/off and mute switches, and are powered by a single 9-volt battery for approximately 10 hours of operation. The included headworn mic and guitar cable adapter allow you to use the bodypack transmitter for vocals as well as instruments.
The receiver features 3 output options for flexibility - an XLR for channel A, a 1/4" out for channel B, and an XLR mix output of channels A and B. - Two discrete channels of wireless packaged in one receiver chassis
- Each channel has RF and AF indicator lights that indicate the presence of connectivity and audio source
- Advanced dipole antenna technology for increased operating range
- Transmitters are powered by a single 9-volt battery and run for approximately 10 hours
- Handheld transmitter features battery life indicator
- Bodypack transmitter includes headworn microphone and guitar cable
UPC: 631922106473 In the Box CAD GXLV 2-Channel Handheld and Bodypack VHF Wireless System (J: 187.75, 205.75 MHz) RXGXLV 2-Channel Wireless Receiver TXHGXLV Handheld Transmitter TXBGXLV Bodypack Transmitter WXGTR Heavy Duty Instrument Cable StagePass WXHW Headworn Microphone Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD GXLV 2-Channel Handheld and Bodypack VHF Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAD GXLVHB-J Specs | | | Frequency Response | 50 Hz to 18 kHz | | Dynamic Range | >100 dBA | | Maximum Input Level | Microphone: -6 dBV
Instrument: +10 dBV | | RF Transmission | Output: 10 mW | | Modulation | FM | | Power Requirements | 9 V alkaline or rechargeable battery | | Battery Life | >10 hours (alkaline) | | | | Operating Principle | Moving coil dynamic | | Polar Pattern | Cardioid | | Frequency Response | 80 Hz to 13 kHz | | Maximum SPL | 135 dB | | Dynamic Range | >100 dBA | | RF Transmission | Output: 10 mW | | Modulation | FM | | Power Requirements | 9 V alkaline or rechargeable battery | | Battery Life | >10 hours (alkaline) | | | | Maximum Output Level | -6 dBV | | Output Impedance | 600 Ω | | Frequency Response | 50 Hz to 18 kHz | | Frequency Band | VHF | | RF Sensitivity | -105 dBm | | Output Connectors | 2x XLRM
1x 1/4" (6.3 mm) | | | | Box Dimensions (LxWxH) | 4.0 x 3.0 x 1.0" |
