User Manual for CAD HA4 Compact 4-Channel Stereo Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the CAD HA4 Compact 4-Channel Stereo Headphone
- Product category: Headphone Amplifiers CAD
- Brand: CAD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAD Headphone Amplifiers
 |
User manual for the CAD HA4 Compact 4-Channel Stereo Headphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAD product will considerably shorten its lifespan!
|

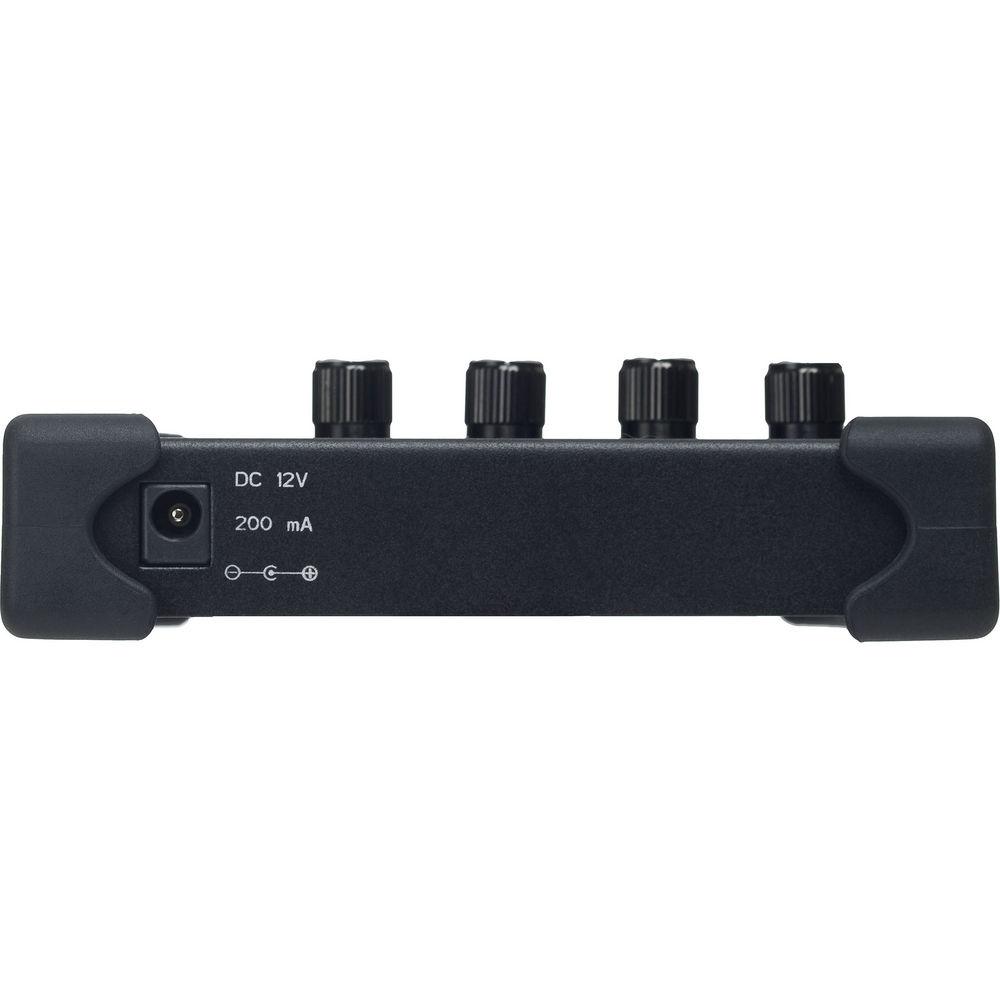

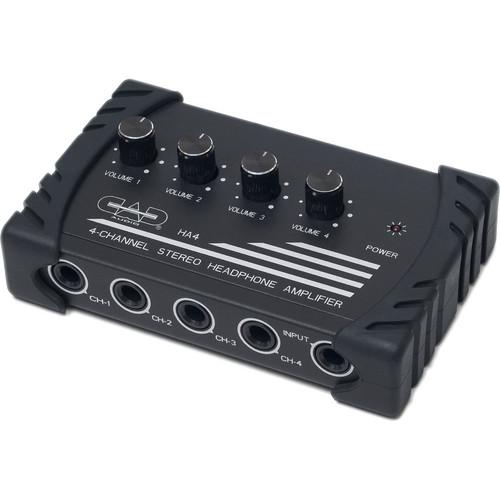

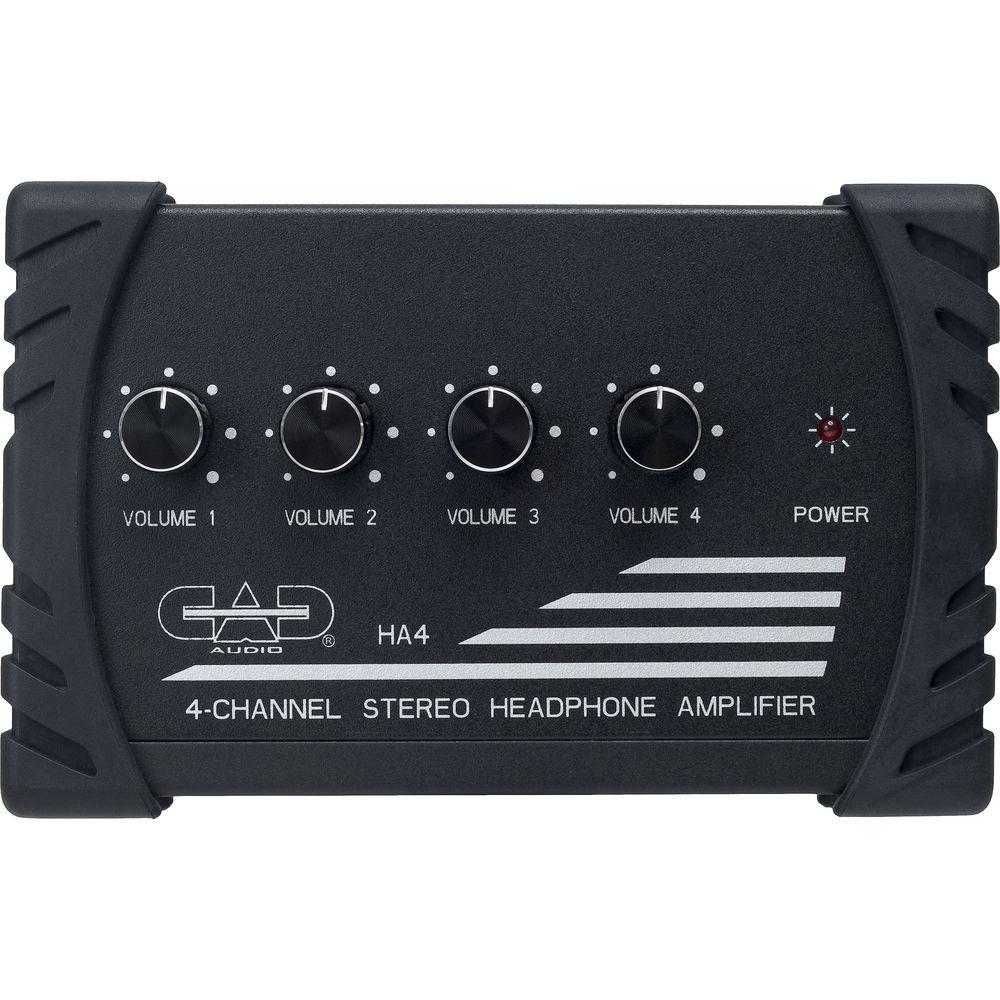

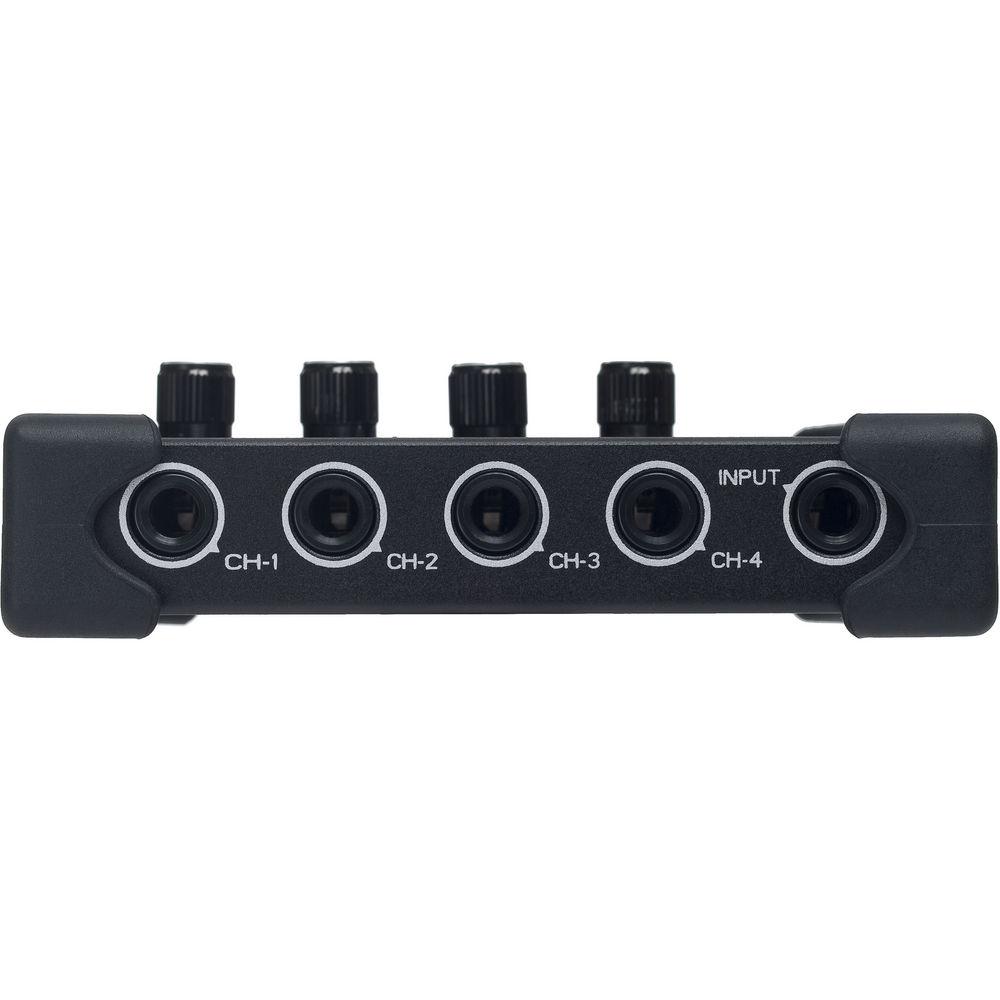

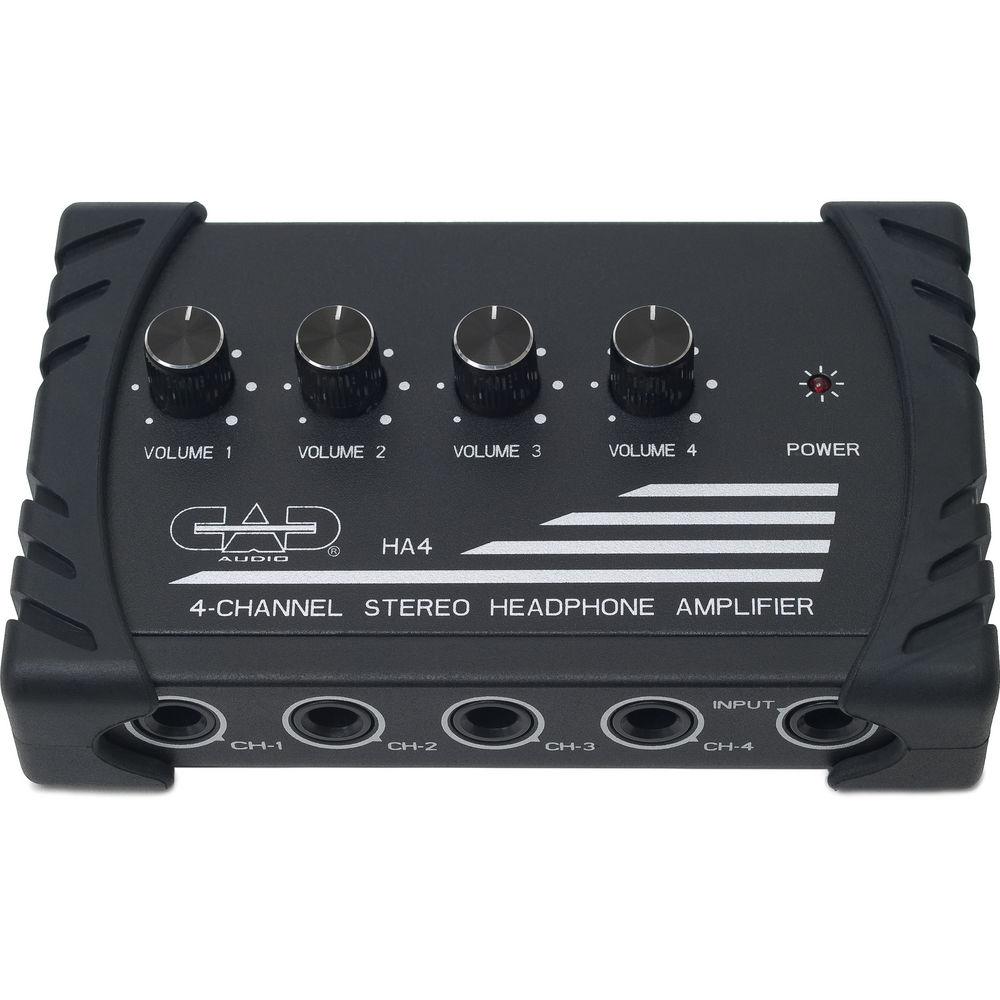

Product description The HA4 Compact 4-Channel Stereo Headphone Amplifier from CAD provides high-quality audio in a compact and durable package. The enclosure offers a 1/4" stereo input, and 4 individual 1/4" stereo headphone jacks. Each of the 4 output channels has its own volume control, so listeners can set their preferred loudness without affecting others. The unit operates on 12VDC power via the included adapter. - Ideal for recording and live monitoring applications
- Compact and durable design
- Standard 1/4" stereo input jack
- 4 stereo 1/4" outputs with individual level controls
- Operates on 12VDC power via the included adapter
UPC: 631922105759 In the Box CAD HA4 Compact 4-Channel Stereo Headphone Amplifier Power Adapter 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD HA4 Compact 4-Channel Stereo Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAD HA4 Specs | Number of Channels | 4 | | Inputs | 1 x 1/4" stereo input
1 x DC power input | | Outputs | 4 x 1/4" stereo headphone jacks | | Frequency Response | 20Hz - 50kHz | | Signal to Noise Ratio | > 110dBA | | Input Level | +16dBu | | Output Impedance | 47 ohms | | Output Power | 50mW | | Controls | 4 x Volume knobs | | Indicators | 1 x Power LED | | Power | 12VDC, 200mA | | Compliance | RoHS | | Dimensions (WxDxH) | 5 x 3.25 x 1.5" (127 x 83 x 38mm) | | Weight | 11 oz (312g) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 7.5 x 5.2 x 2.9" |
