User Manual for CAD M179 Variable-Pattern Condenser Microphone Click to enlarge the picture
Contents of the user manual for the CAD M179 Variable-Pattern Condenser Microphone
- Product category: Large Diaphragm Condenser CAD
- Brand: CAD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAD Large Diaphragm Condenser
 |
User manual for the CAD M179 Variable-Pattern Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAD product will considerably shorten its lifespan!
|

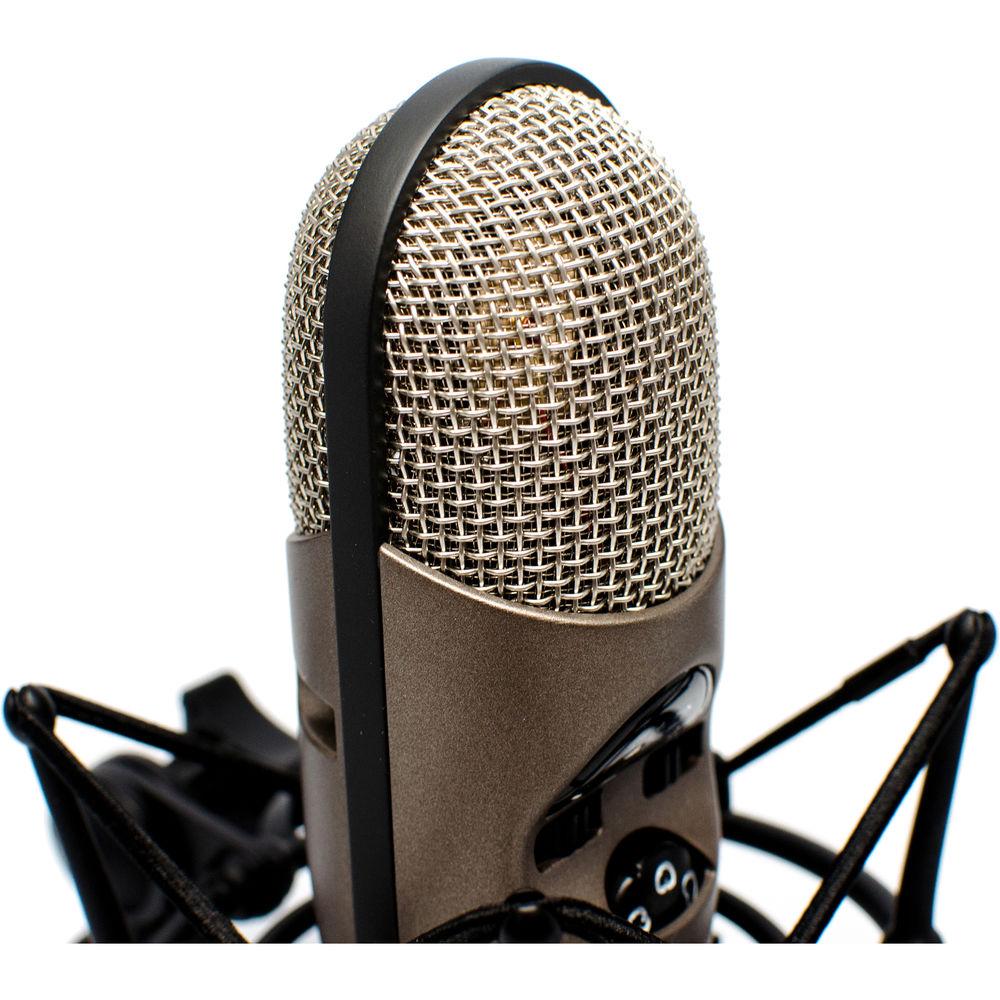

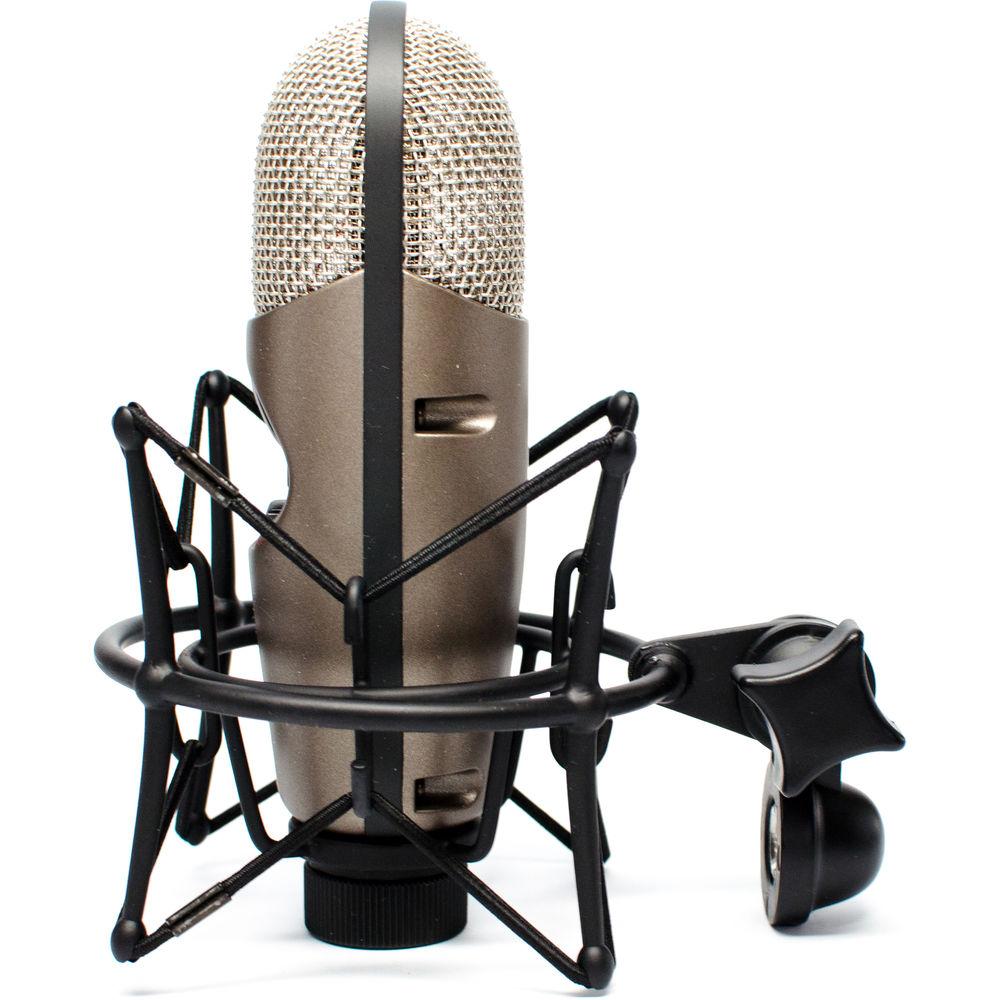

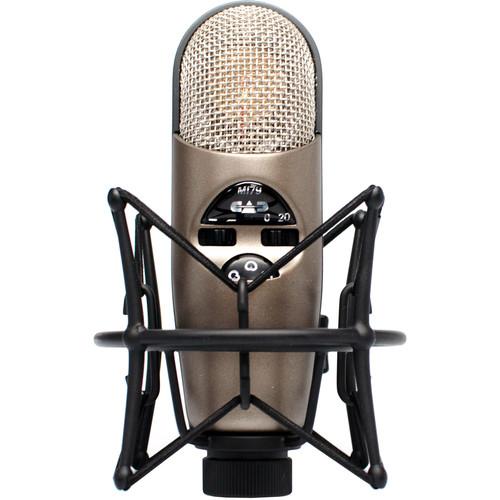

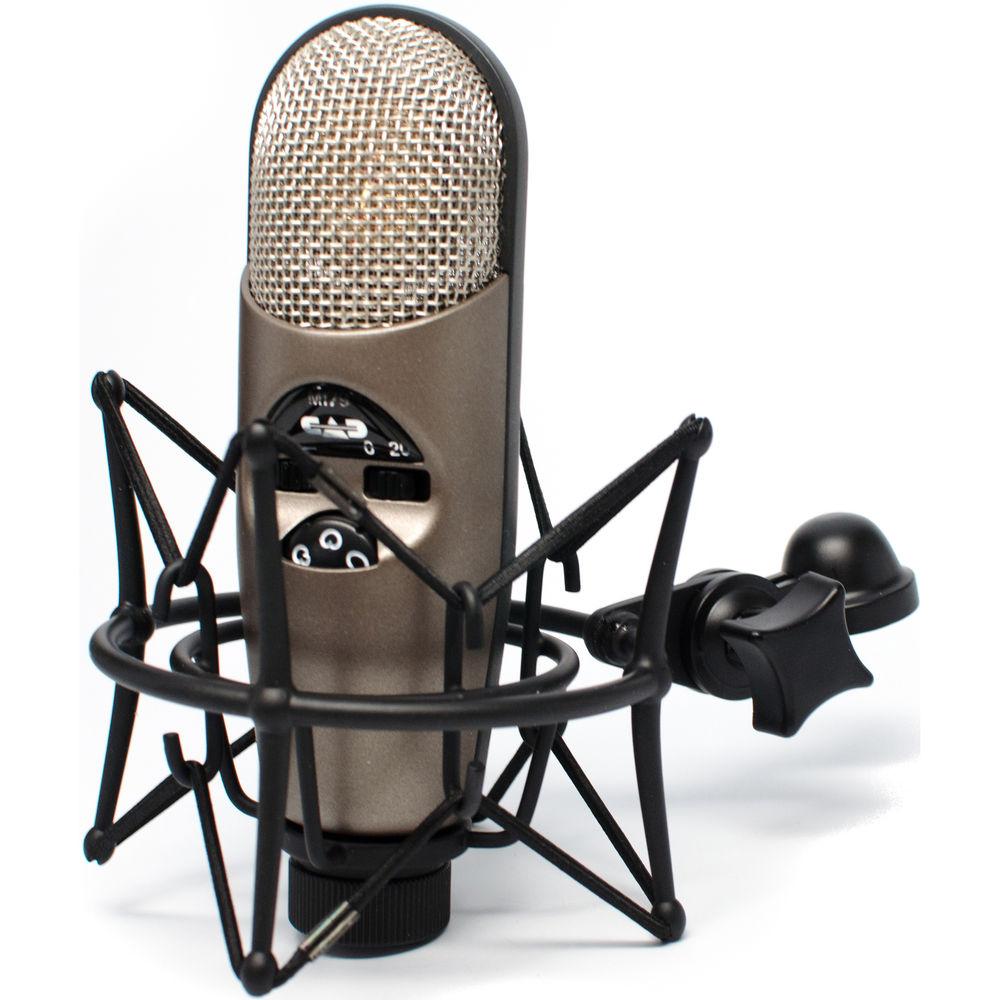

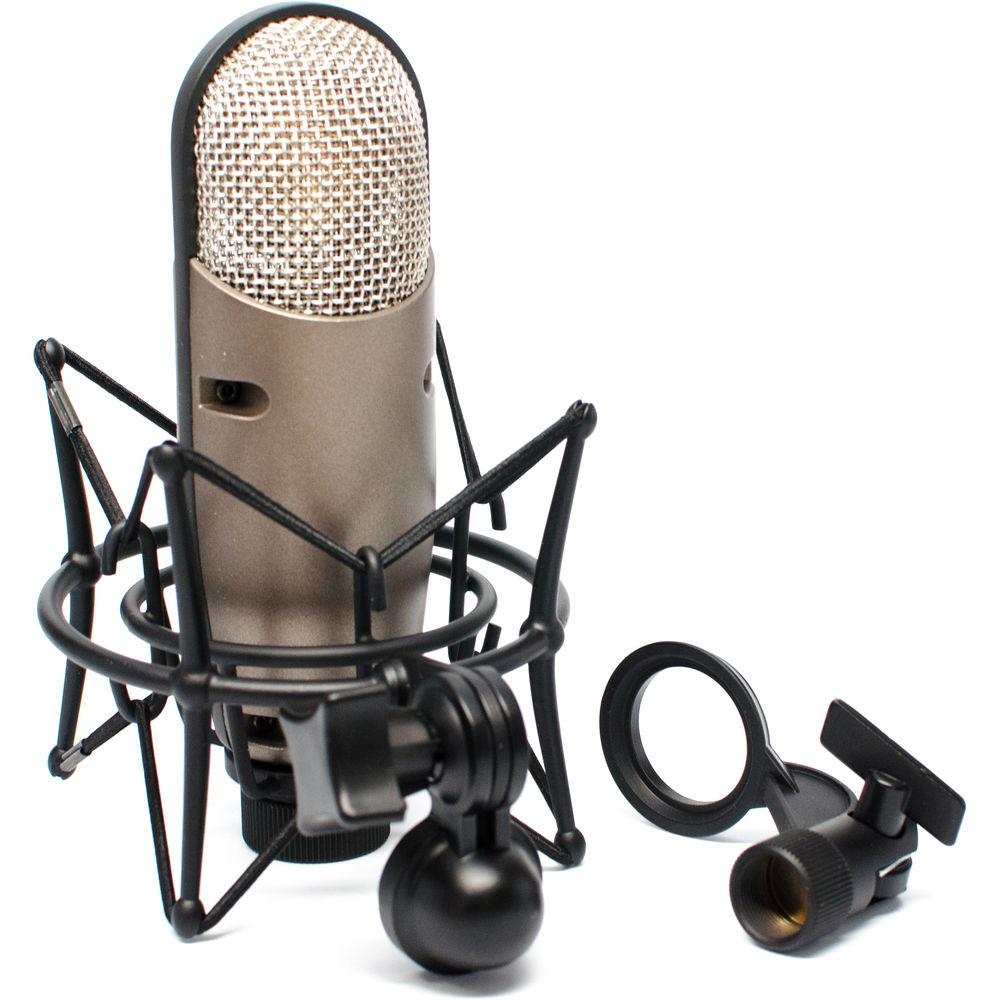

Product description The M179 Variable-Pattern Condenser Microphone from CAD features a figure of eight polar pattern and a spacious and articulate omni polar pattern. It can be used in a wide range of applications, including studio vocals, voice-over, choir, orchestra, acoustic instrument, guitar cabinets, bass cabinets, strings, piano, and cymbals/overheads. The large diaphragm capsule is combined with algebraic phasing and a high-power transformerless drive to create a significant acoustical window. Additional features include a high-pass filter and an attenuator. The M179 includes a swivel mount, an elastic shock mount, and a carrying case. The microphone requires 24V or 48V of phantom power. - Variable Pattern

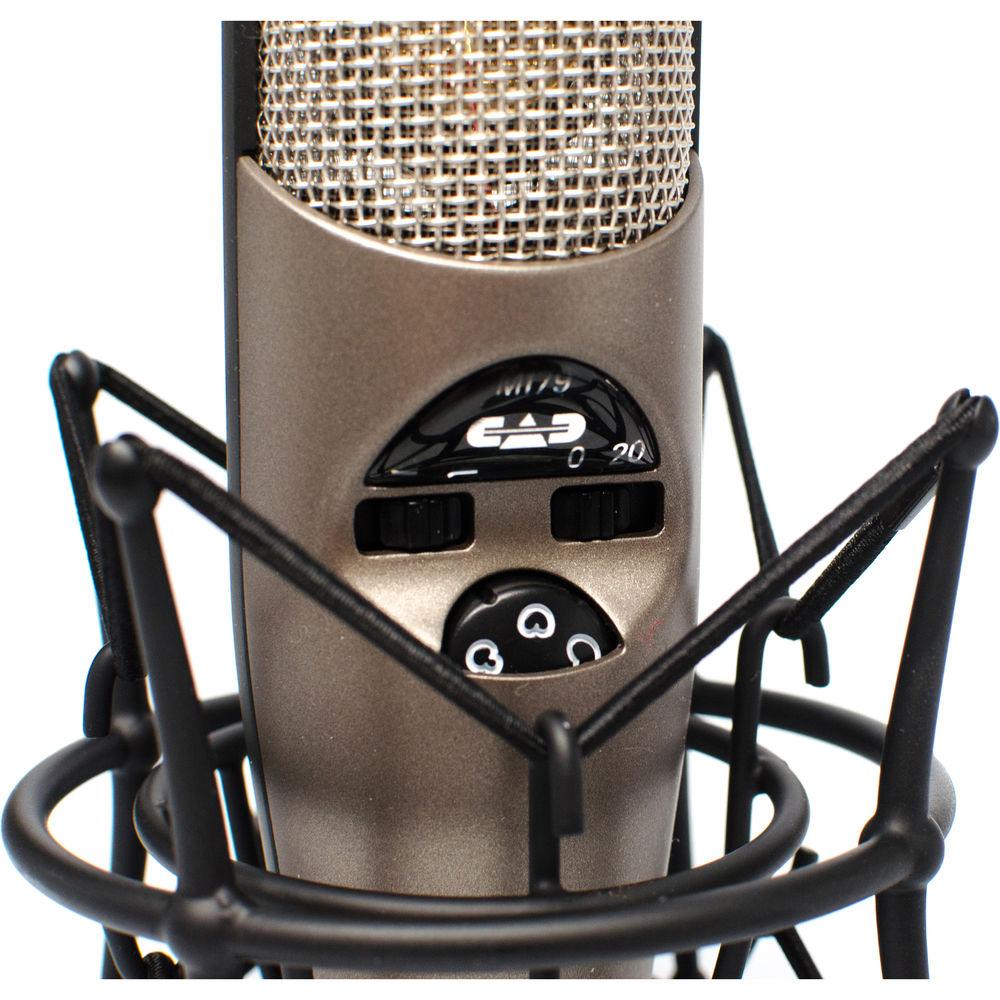

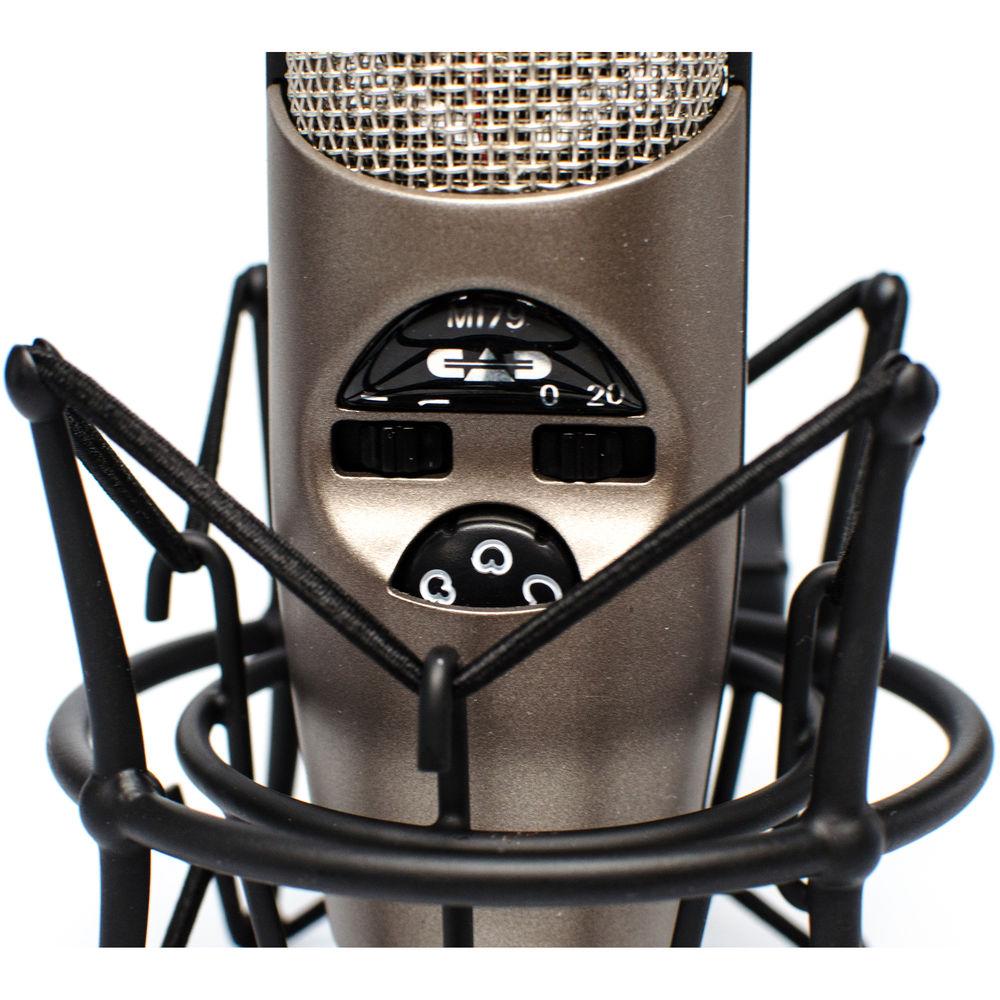

- A variable pattern dial offers variations of omni-directional and figure 8 polar patterns.
- 20dB Pad Switch
- A 20dB pad switch provides additional headroom and an SPL rating of 143dB.
- High-Pass Filter
- A user switchable high-pass filter eliminates noise and rumble below 100Hz.
- Inclusive Package

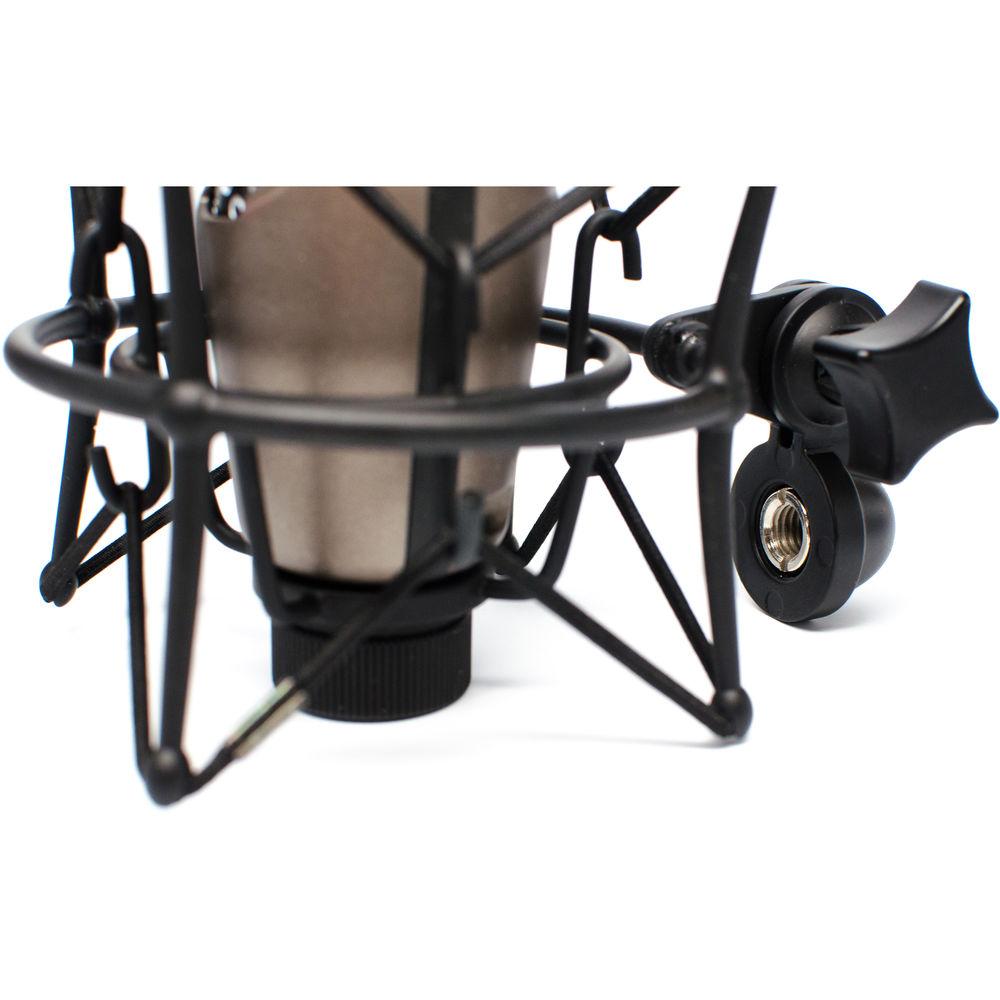

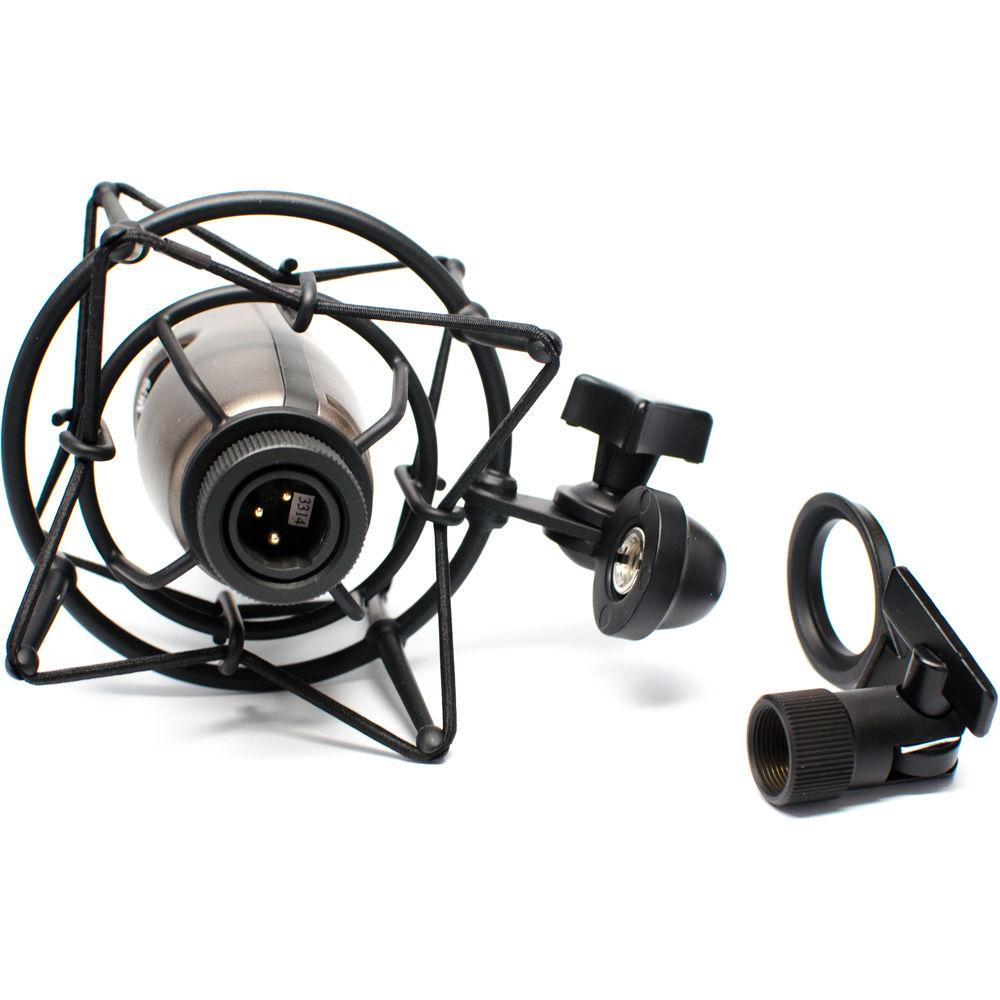

- Includes swivel mount, elastic shock mount, and carrying case.

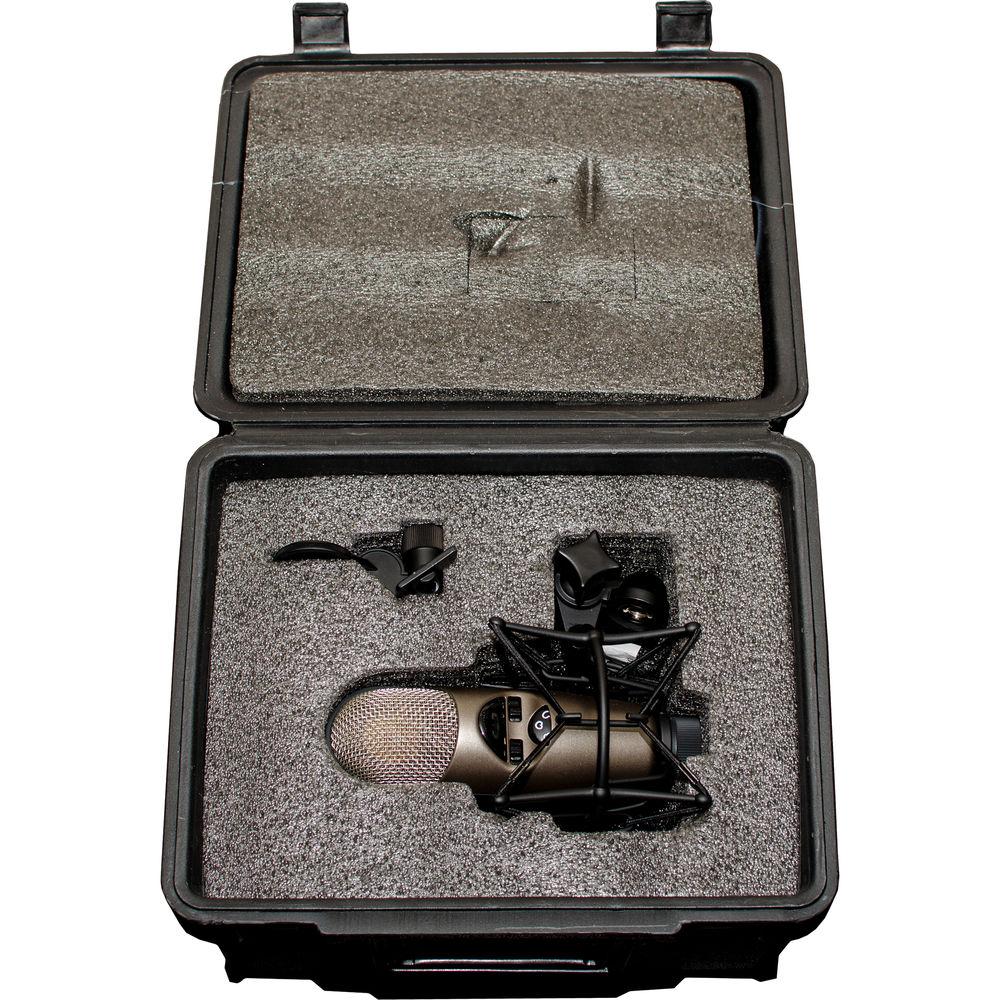

UPC: 631922101102 In the Box CAD M179 Variable-Pattern Condenser Microphone Swivel Mount Elastic Shock Mount Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD M179 Variable-Pattern Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAD M-179 Specs | | | Transducer | Condenser | | Polar Pattern | Figure-8, Omnidirectional | | Pattern Selection | Continuously Variable | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 11 dB A-Weighted | | Maximum SPL | 123 dB SPL | | Pad | -20 dB | | THD | 1% | | Impedance | 200 Ohms | | Sensitivity | -36 dB | | Low-Cut Filter | 6 dB/Octave @ 100 Hz | | Operating Current Consumption | 8.0 µA | | Operating Voltage | 24 V
48 V | | | | Package Weight | 4.75 lb | | Box Dimensions (LxWxH) | 11.6 x 9.7 x 9.4" |
