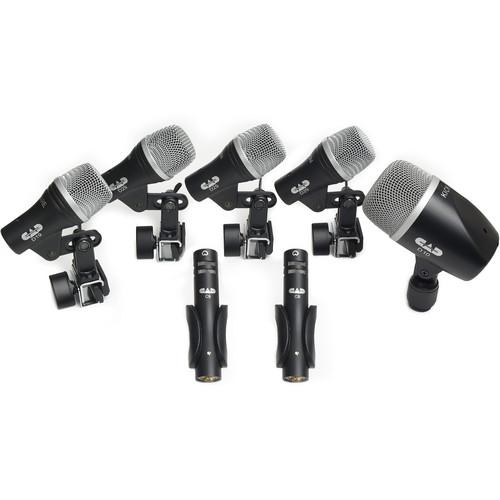

User Manual for CAD Stage 7 Drum Microphone Pack Click to enlarge the picture
Contents of the user manual for the CAD Stage 7 Drum Microphone Pack
- Product category: Instrument Microphones CAD
- Brand: CAD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAD Instrument Microphones
|
User manual for the CAD Stage 7 Drum Microphone Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAD product will considerably shorten its lifespan!
|
Product description The CAD Stage 7 Drum Microphone Pack is an affordable 7-piece drum microphone package well suited for performing, rehearsing and project recording. The Stage 7 consists of the D10 dynamic kick drum microphone, 3x D29 tom microphones, a D19 snare drum mic and 2x C9 overhead microphones. All the microphones include mounting hardware and a vinyl carrying case for transport and storage. UPC: 631922105643 In the Box CAD Stage 7 Drum Microphone Pack D10 Cardioid Dynamic Kick Drum Microphone 3 x D29 Tom Microphones D19 Snare Drum Microphone 2 x C9 Instrument & Hihat Microphones 7 x Microphone Clips Vinyl Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD Stage 7 Drum Microphone Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAD Stage7 Specs | Transducer | D10, D29 & D19: Moving Coil Dynamic
C9: Condenser | | Polar Pattern | D10, D29 & C9: Cardioid
D19: Supercardioid | | Frequency Response | D29: 90Hz to 13kHz
D10: 30Hz to 12kHz D19: 90Hz to 14kHz
C9: 40Hz to 13kHz | | Sensitivity | D29: -53dBV (2.2mV) @ 1 Pa
D10: -66dBV (0.5mV) @ 1 Pa D19: -56dBV (1.6mV) @ 1 Pa
C9: -41dBV (8.9mV) @ 1 Pa | | Impedance | D29: 560 ohms
D10: 60 ohms D19: 300 ohms
C9: 230 ohms | | Filter | C9: Hi-pass 200Hz, 6dB/oct | | Pad | C9: 10dB | | Power | C9: P12, P24, P48, 11mA(P48) | | | | Package Weight | 4.45 lb | | Box Dimensions (LxWxH) | 13.5 x 10.9 x 4.2" |
