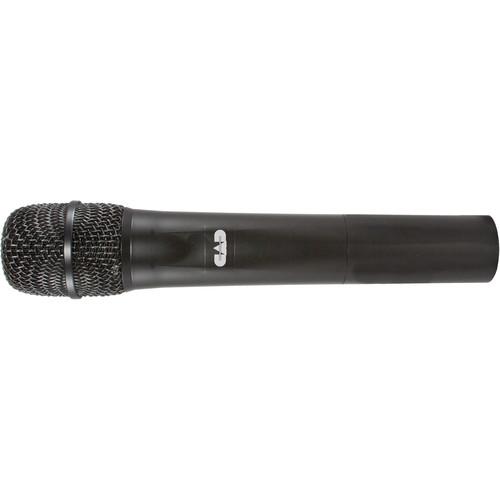

User Manual for CAD TX1600 UHF Handheld Transmitter for WX1600 Wireless Systems Click to enlarge the picture
Contents of the user manual for the CAD TX1600 UHF Handheld Transmitter for
- Product category: Wireless Transmitters CAD
- Brand: CAD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAD Wireless Transmitters
|
User manual for the CAD TX1600 UHF Handheld Transmitter for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAD product will considerably shorten its lifespan!
|
Product description The TX1600 UHF Handheld Transmitter from CAD is designed to be used with WX1600 StagePass Wireless Systems. The transmitter features a SoftTouch power switch which can be held down for 2 seconds to turn the transmitter on or off, or can be momentarily pressed to mute or unmute the audio. A tri-color LED indicator light displays the transmitter's status. A green light indicates that the transmitter is powered up and the audio is live, an orange light indicates that the transmitter is powered up and the audio is muted, and a flashing red light indicates a low battery status. The transmitter also includes an IR node for Scan-Link operation. Powered by 2 AA batteries, the transmitter can run for up to 15 hours. - Power switch can be used for both on/off function, and to mute/unmute the audio
- Tri-color LED indicator light
- IR node for Scan-Link operation
- Powered by two AA batteries for up to 15 hours
UPC: 631922106909 In the Box CAD TX1600 UHF Handheld Transmitter for WX1600 Wireless Systems (G: 542 to 564 MHz) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD TX1600 UHF Handheld Transmitter for WX1600 Wireless Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAD TX1600 Specs | Operating Principle | Microphone: Moving coil dynamic | | Frequency Band | G: 542 to 564 MHz | | Polar Pattern | Cardioid | | Frequency Response | 40 Hz to 15 kHz | | SPL | Maximum: 130 dB | | Dynamic Range | 110 dB | | RF Output | 10 mW | | Power Requirements | 2 x AA batteries | | Battery Life | >15 hours | | Dimensions | 9.5 x 1.9" / 24.1 x 4.8 cm | | Weight | 7.3 oz / 207.0 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 9.5 x 1.5 x 1.5" |
