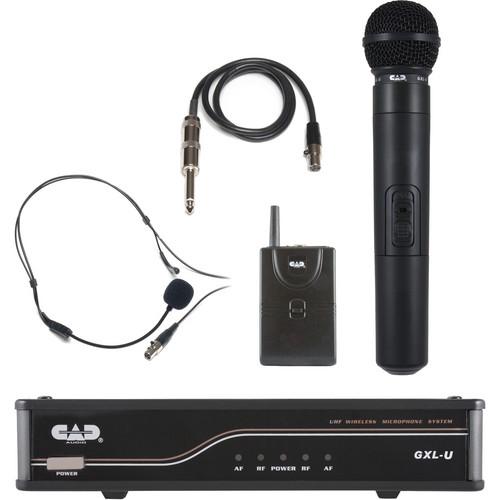

Product description The CAD UHF Dual Channel Handheld and Bodypack Wireless Microphone System is intended for live sound reinforcement. The system consists of a handheld wireless dynamic microphone transmitter, a wireless bodypack transmitter, and a two-channel UHF receiver station. Both the handheld microphone and the bodypack transmitter feature on, off, and mute functions to conserve battery life. Both also operate on two AA batteries and will last for more than 10 hours before requiring recharge or replacement. The bodypack system includes a WXGTR guitar cable and a WXHW headworn condenser microphone for a variety of wireless applications.
The dual-channel receiver features a power button and LED indicators for power, radio signal, and audio signal. The back of the device includes a DC power jack, volume controls for channels A and B, balanced XLR connectors for channels A and B, and an unbalanced 1/4" connector for channel B. The top of the device features a recessed compact dipole antenna for improved reception of the UHF spectrum. UPC: 631922106527 In the Box CAD UHF Dual Channel Handheld and Bodypack Wireless Microphone System StagePass WXHW Headworn Microphone WXGTR Heavy Duty Instrument Cable Handheld Microphone Transmitter Bodypack Transmitter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD UHF Dual Channel Handheld and Bodypack Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAD GXLUHB-K Specs | | | Maximum Output Level | 6 dBV | | Output Impedance | 800 Ω | | Frequency Response | 20 to 20,000 Hz | | Frequency Band | UHF | | Transmission Channels | K: 543.1 MHz / 554.5 MHz
L: 567.1 MHz / 593.5 MHz | | RF Sensitivity | -105 dBm | | Working Range | Up to 400' (122 m) | | Output Connectors | 2 x balanced XLR-Male
1 x unbalanced 1/4" | | Dimensions (W x D x H) | 15 x 11 x 3.0" (38 x 28 x 7.6 cm) | | Weight | 3.0 lb (1.4 kg) | | | | Operating Principle | Moving coil dynamic | | Polar Pattern | Supercardioid | | Frequency Response | 80 to 16,000 Hz | | Sensitivity | -33 dBV (22 mV) at 1 Pa | | Maximum SPL | 135 dB | | Dynamic Range | >105 dBA | | Transmitter Level | 10 mW | | Modulation | FM | | Power Requirements | 2 x AA alkaline or rechargeable battery | | Battery Life | >10 hours (alkaline) | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Frequency Response | 40 to 20,000 Hz | | Dynamic Range | >105 dBA | | Maximum Input Level | Microphone Input: -6 dBV Instrument Input: +10 dBV | | Transmitter | RF Output: 10 mW | | Modulation | FM | | Power Requirements | 2 x AA alkaline or rechargeable batteries | | Battery Life | > 10 hours (alkaline) | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 15.2 x 11.0 x 3.0" |
