User Manual for CAD UHF Dual Channel Handheld Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the CAD UHF Dual Channel Handheld Wireless
- Product category: Wireless Systems CAD
- Brand: CAD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CAD Wireless Systems
|
User manual for the CAD UHF Dual Channel Handheld Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CAD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CAD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CAD product will considerably shorten its lifespan!
|

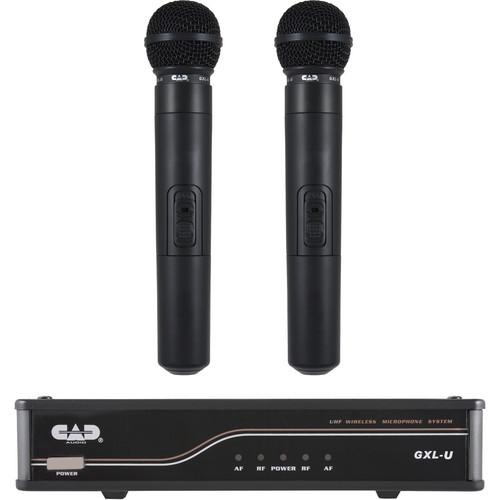

Product description The CAD UHF Dual Channel Handheld Wireless Microphone System is intended for live sound reinforcement. The system consists of two handheld wireless dynamic microphone transmitters and a two-channel UHF receiver station. The handheld microphones feature on, off, and mute functions to conserve battery life. They operate on two AA batteries and will last for more than 10 hours before requiring recharge or replacement.
The dual-channel receiver features a power button and LED indicators for power, radio signal, and audio signal. The back of the device includes a DC power jack, volume controls for channels A and B, balanced XLR connectors for channels A and B, and an unbalanced 1/4" connector for channel B. The top of the device features a recessed compact dipole antenna for improved reception of the UHF spectrum. UPC: 631922106510 In the Box CAD UHF Dual Channel Handheld Wireless Microphone System 2 x Handheld Microphone Transmitters Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CAD UHF Dual Channel Handheld Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCAD GXLUHH-L Specs | | | Maximum Output Level | 6 dBV | | Output Impedance | 800 Ω | | Frequency Response | 20 to 20,000 Hz | | Frequency Band | UHF | | Transmission Channels | L: 567.1 MHz / 593.5 MHz | | RF Sensitivity | -105 dBm | | Output Connectors | 2 x balanced XLR-Male
1 x unbalanced 1/4" | | Operating Distance | 400' (122 m) unobstructed | | Dimensions (W x D x H) | 15 x 11 x 3.0" (38 x 28 x 7.6 cm) | | Weight | 3.0 lb (1.4 kg) | | | | Operating Principle | Moving coil dynamic | | Polar Pattern | Supercardioid | | Frequency Response | 80 to 16,000 Hz | | Sensitivity | -33 dBV (22 mV) at 1 Pa | | Maximum SPL | 135 dB | | Dynamic Range | >105 dBA | | Transmitter Level | 10 mW | | Modulation | FM | | Power Requirements | 2 x AA alkaline or rechargeable battery | | Battery Life | >10 hours (alkaline) | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 15.2 x 10.9 x 3.1" |
