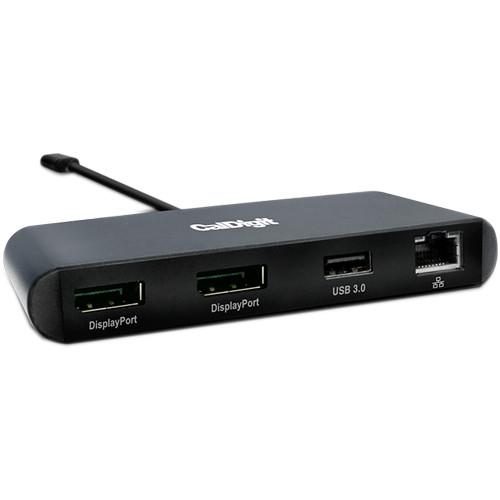

User Manual for CalDigit Thunderbolt 3 mini Dock Dual DisplayPort Click to enlarge the picture
Contents of the user manual for the CalDigit Thunderbolt 3 mini Dock Dual
- Product category: Docking Stations & Port Replicators CalDigit
- Brand: CalDigit
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CalDigit Docking Stations & Port Replicators
|
User manual for the CalDigit Thunderbolt 3 mini Dock Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CalDigit product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CalDigit user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CalDigit product will considerably shorten its lifespan!
|
Product description With a variety of ports, the Thunderbolt 3 mini Dock Dual DisplayPort from CalDigit allows you to connect a wide range of peripherals to your Thunderbolt 3 compatible computer. This multifunctional hub transfers data up to 40 Gb/s, and has a USB Type-C connector at the end of its integrated cable. When you're ready to extend or duplicate your display, plug in your devices to extend or duplicate your monitor via two DisplayPort 1.2 ports. Furthermore, CalDigit's mini Dock supports dual-display setups for resolutions up to 4K at 60 Hz.
The Thunderbolt 3 mini Dock can also connect to your wired peripherals with its USB 3.1 Gen 1 Type-A port, which support up to 5 Gb/s. Aside from wired connections, this hub is designed to connect to wireless networks with a built-in Gigabit Ethernet jack. Moreover, the mini Dock works with computers running Windows and Mac operating systems while also maintaining a portable form factor that's easy to travel with. - Thunderbolt 3
- The CalDigit Thunderbolt 3 mini Dock is designed to work with Thunderbolt 3 devices and can transfer data up to 40 Gb/s.
- USB Conncetivity
- Connect various USB devices such as external drives, keyboards, and mice to one of the mini Dock's available USB Type-A ports.
- Dual 4K Displays
- The CalDigit mini Dock offers a convenient way to connect dual 4K at 60 Hz monitors to your Thunderbolt 3 laptop in either mirrored or extended modes.
- One Cable
- A single tethered cable from the mini Dock to your Thunderbolt 3 laptop is all it takes to light-up two displays, connect to the internet, and add USB Type-A peripherals.
- Compatibility
- Whether you're using the latest MacBook Pro or Microsoft Surface, the CalDigit mini Dock is made to be compatible with Mac and Windows operating systems.
- Portable Design
- The Thunderbolt 3 mini Dock is designed to be travel-friendly, so you can take it on the road to connect to all your devices.
In the Box CalDigit Thunderbolt 3 mini Dock Dual DisplayPort Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CalDigit Thunderbolt 3 mini Dock Dual DisplayPort in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCalDigit Mini Dock Specs | | | USB | 1 x USB 3.1 Gen 1 Type-A | | Thunderbolt | 1 x Thunderbolt 3 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 2 x DisplayPort 1.2 | | Audio | None | | Memory Card Slots | None | | | | System Connection | 1 x Thunderbolt 3 Type-C Male | | Connection Type | Integrated Cable | | | | Number of Displays Supported | 2 | | Maximum Resolution Supported | 4096 x 2160 at 60 Hz | | Data Transfer Rate | 40 Gb/s Thunderbolt 3 | | Operating System Support | Windows, macOS/OS X | | UASP Support | No | | | | Operating Temperature | 32 to 95°F / 0 to 35°C (Recommended) | | | | Cable Length | 5.3" / 134.62 mm | | Enclosure Material | Aluminum | | Lock Slot | No | | Dimensions | 4.9 x 2.6 x 0.7" / 124.46 x 66.04 x 17.78 mm | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 8.0 x 8.0 x 5.0" |
