User Manual for CalDigit TS3 Plus 15-Port Thunderbolt 3 Dock Click to enlarge the picture
Contents of the user manual for the CalDigit TS3 Plus 15-Port Thunderbolt 3
- Product category: Docking Stations & Port Replicators CalDigit
- Brand: CalDigit
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CalDigit Docking Stations & Port Replicators
 |
User manual for the CalDigit TS3 Plus 15-Port Thunderbolt 3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CalDigit product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CalDigit user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CalDigit product will considerably shorten its lifespan!
|

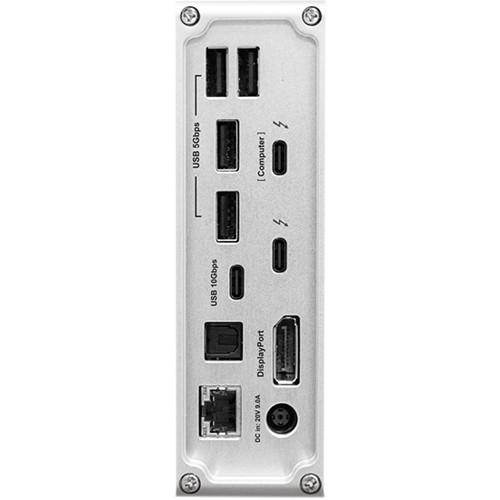

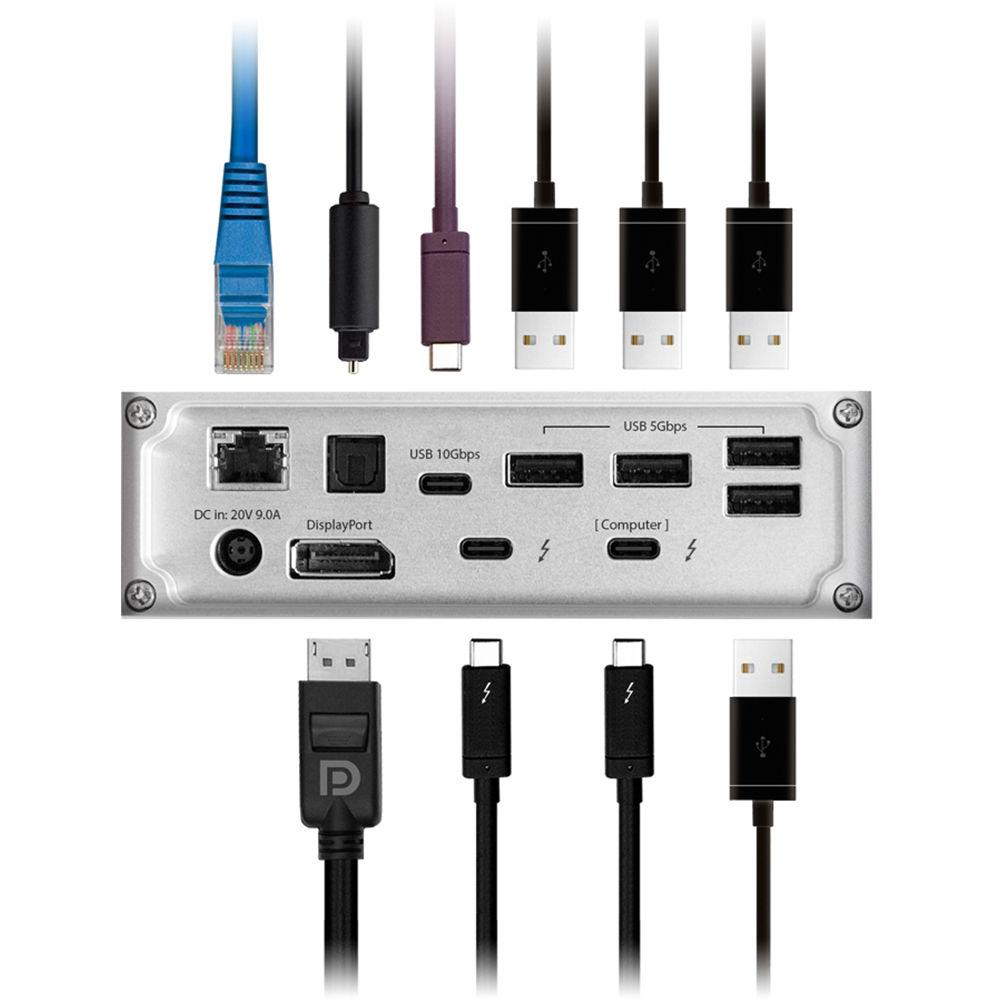

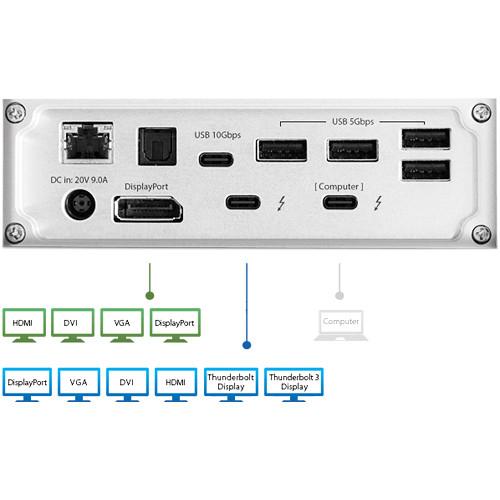

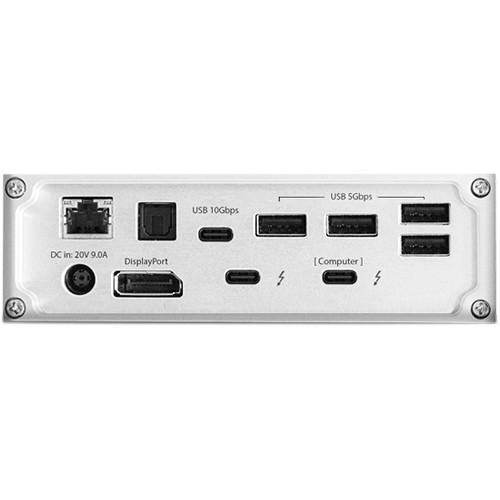

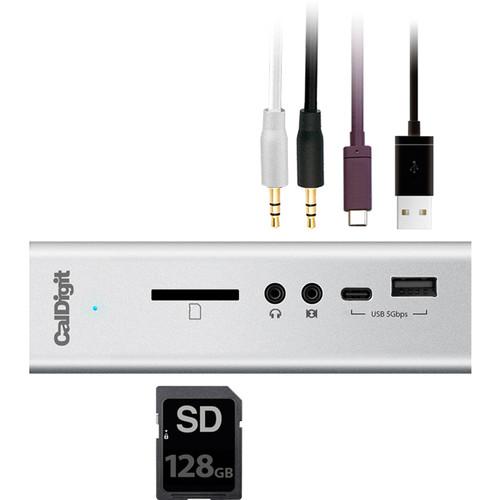

Product description Connect a variety of Thunderbolt 3, USB 3.1 Type-C, USB 3.0 Type-C, USB 3.0 Type-A, DisplayPort 1.2, Gigabit Ethernet, S/PDIF audio, 3.5mm audio, and SDXC UHS-II peripherals to your compatible system using the silver TS3 Plus 15-Port Thunderbolt 3 Dock from CalDigit. This dock contains two bi-directional 40 Gb/s Thunderbolt 3 ports, each of which utilizes the reversible USB Type-C connector and also supports 10 Gb/s USB 3.1 and dual-bandwidth DisplayPort 1.2, allowing you to connect up to two 4K/60 Hz displays simultaneously, or one 5K Thunderbolt 3 display. Additionally, you can daisy-chain up to six total devices from a single Thunderbolt 3 port. As one Thunderbolt 3 port is used to interface with your host system, the other is used for daisy chaining.

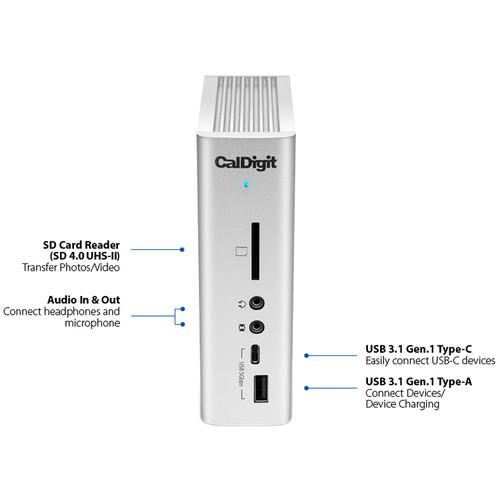

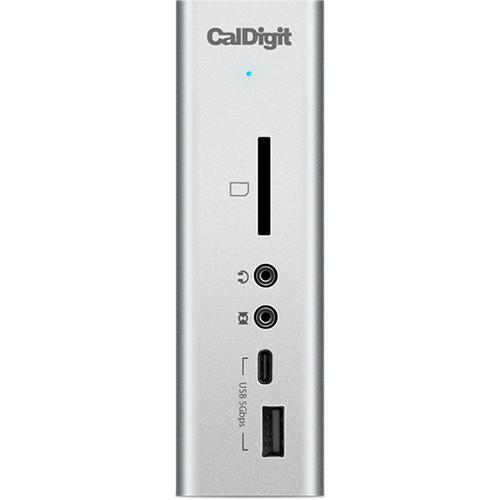

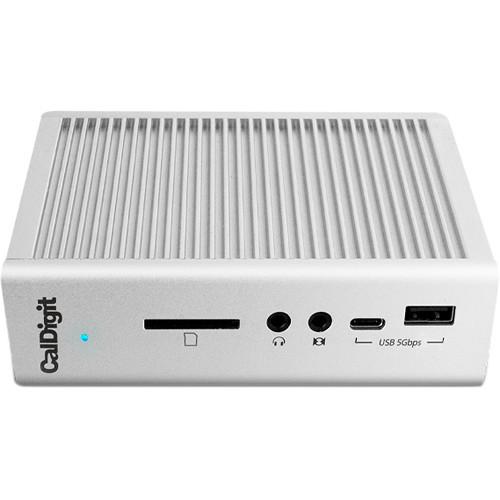

In addition to its Thunderbolt 3 ports, this dock also has one 10 Gb/s USB 3.1 Type-C port, which is also known as USB 3.1 Gen 2, as well as one 5 Gb/s USB 3.0 Type-C port, which is also known as USB 3.1 Gen 1. To maintain compatibility with legacy devices, this dock also has five 5 Gb/s USB 3.0 Type-A ports. The DisplayPort allows for a 4K or 5K monitor to be connected, while the 3.5mm audio ports allow external speakers, mics, and other audio equipment to be connected. Pro-grade digital audio output for a lossless signal transfer is accomplished using the S/PDIF output, network connectivity is achieved using the Gigabit Ethernet port, and the integrated SDXC UHS-II card reader lets you download photos and videos from your digital camera or other device. Additionally, a power cable and a 6.6' Thunderbolt 3 cable are included. In the Box CalDigit TS3 Plus 15-Port Thunderbolt 3 Dock (Silver) 6.6' / 2.0m Thunderbolt 3 Cable Power Adapter Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CalDigit TS3 Plus 15-Port Thunderbolt 3 Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCalDigit TS3 Plus+ Specs | | | USB | 1 x USB 3.1 Gen 2 Type-C
1 x USB 3.1 Gen 1 Type-C
5 x USB 3.1 Gen 1 Type-A | | Thunderbolt | 2 x Thunderbolt 3 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x DisplayPort 1.2 | | Audio | 1 x TOSLINK
1 x 1/8" / 3.5 mm Headphone
1 x 1/8" / 3.5 mm Microphone | | Memory Card Slots | 1 x SDXC (UHS-II [312 MB/s]) | | | | System Connection | Thunderbolt 3 Female | | | | Data Transfer Rate | 40 Gb/s Thunderbolt 3
10 Gb/s USB 3.1 Gen 2 | | | | Power Source | AC Adapter | | Maximum Power Consumption | 85 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Dimensions | 5.2 x 1.6 x 3.9" / 13.21 x 4.06 x 9.91 cm | | Weight | 1 lb / 0.5 kg | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 6.9 x 5.4 x 4.8" |
